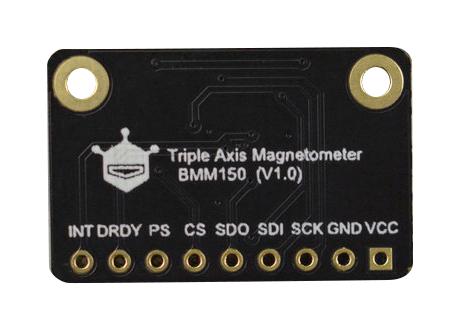

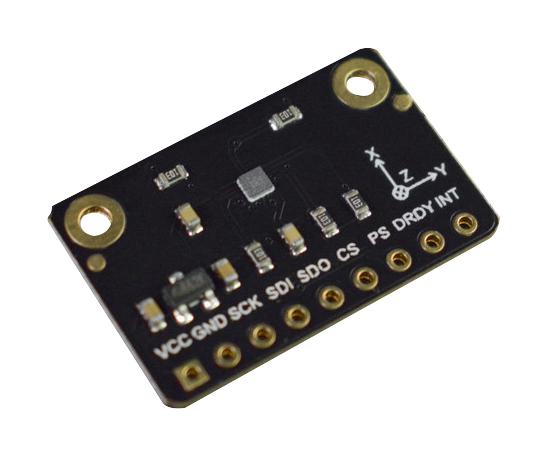

DFROBOT SEN0419 Breakout Board, BMM150, 3-Axis Magnetometer Sensor, Arduino Development Boards GTIN UPC EAN: 6959420910113
DFROBOT SEN0419 Breakout Board, BMM150, 3-Axis Magnetometer Sensor, Arduino Development Boards GTIN UPC EAN: 6959420910113
Product Overview
SEN0419 is a Fermion: BMM150 triple axis magnetometer sensor breakout board. The BMM150 is a low-power and low noise 3-axis digital geomagnetic sensor that perfectly matches the requirements of compass applications. Based on Bosch�s proprietary FlipCore technology, the BMM150 provides absolute spatial orientation and motion vectors with high accuracy and dynamics. Featuring small size and lightweight, it is also especially suited for supporting drones in accurate heading. The BMM150 can also be used together with an inertial measurement unit consisting of a 3-axis accelerometer and a 3-axis gyroscope.
- Measurement of the magnetic field
- Ultra-small package
- High accuracy
- 3.3V power supply
- Temperature range from -40 to 85°C
- I2C/SPI digital interface
- Programmable interrupt
- 0.3?T resolution
Contents
Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout) x1, 2.54 black single-row connector 9Pin x1.
Product details
Other details
| Brand | DFROBOT |
| Part Number | SEN0419 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $15.80
-70%$15.80
$4.74More Images
