DFROBOT DFR1075 Development Board, ESP32-C6FH4, ESP32 Family, RISC-V, 32Bit

DFR1075 is a FireBeetle 2 ESP32-C6 IoT development board for smart home control system. The FireBeetle 2 ESP32-C6 is a versatile low-power IoT controller board designed for smart home automation, control and monitoring system. It features a 160MHz RISC-V 32-bit processor, providing excellent energy efficiency and flexibility for Internet of Things (IoT) projects. The board supports multiple communication protocols, including Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3, enabling versatile wireless connectivity. Suitable for indoor air quality monitoring, indoor ambient light, balcony plant soil monitoring, outdoor weather station.

• Detailed guides are provided for easy setup and programming
• Multi-protocol communication support, including Wi-Fi, BLE, Zigbee, and Thread
• Ultra-low power mode with a deep sleep current of only 16µA
• Solar charging capability
• Battery level detection facilitates the monitoring of the device's battery status
• Support Wi-Fi 6 for theoretical speeds up to 9.6Gbps and BLE 5 for a max transmission rate of 2Mbps
• Onboard GDI Interface, provides an easy connection to screens for efficient data visualization
• 3.3V operating voltage, 5V DC Type-C input voltage, 0.5A max charging current
• RISC-V single-core processor, 160MHz frequency, 512KB SRAM, 320KB ROM, 4MB flash, 16KB RTC SRAM

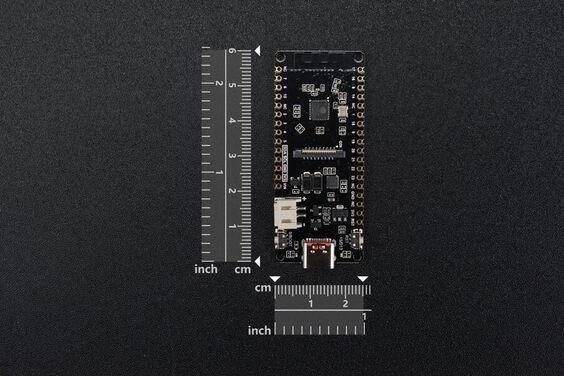

• Operating temperature range from -10 to 60°C and dimension is 25.4x60mm/1x2.36�

Contents

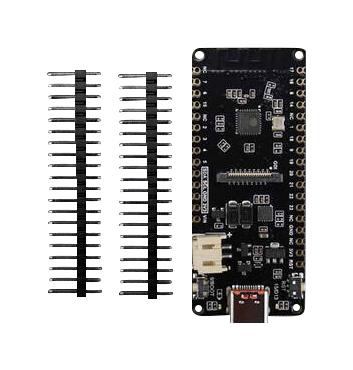

FireBeetle 2 board ESP32 C6 microcontroller, 20 pin-2.54mm pin header x2.
