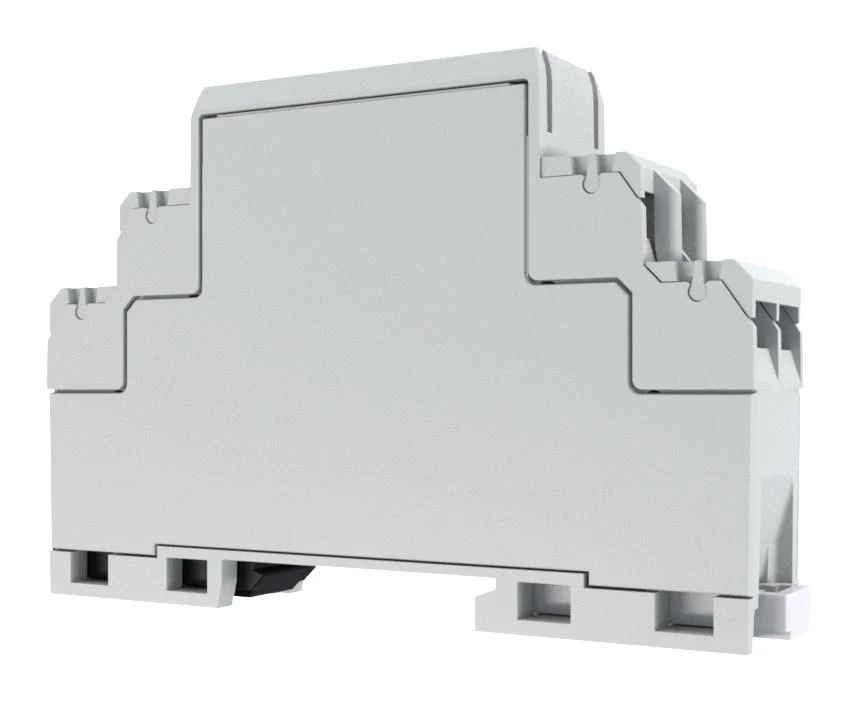

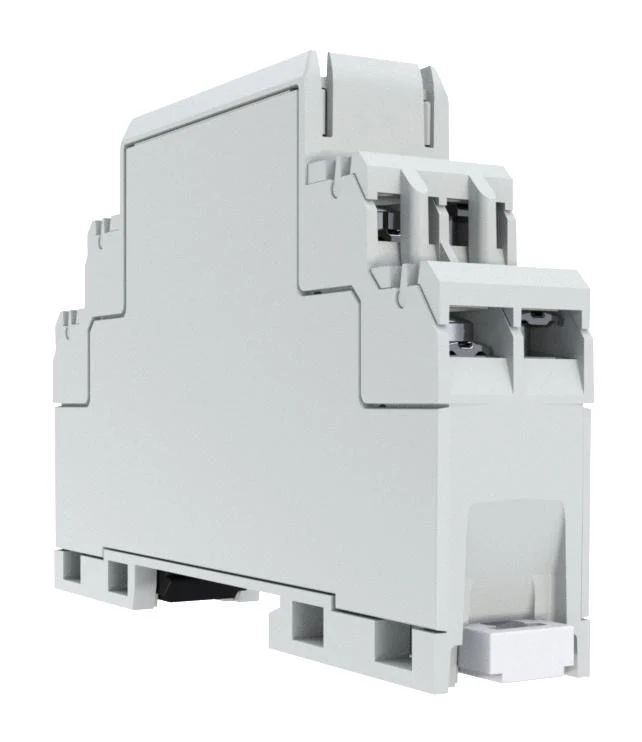

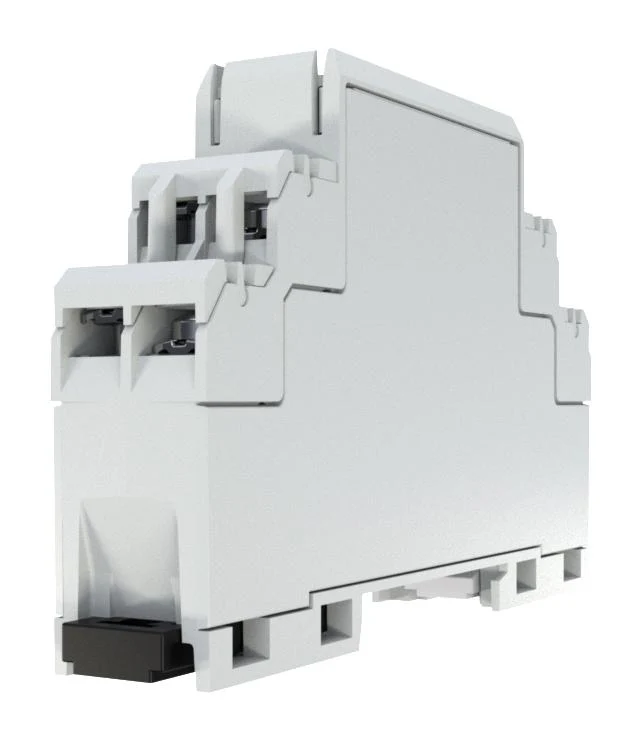

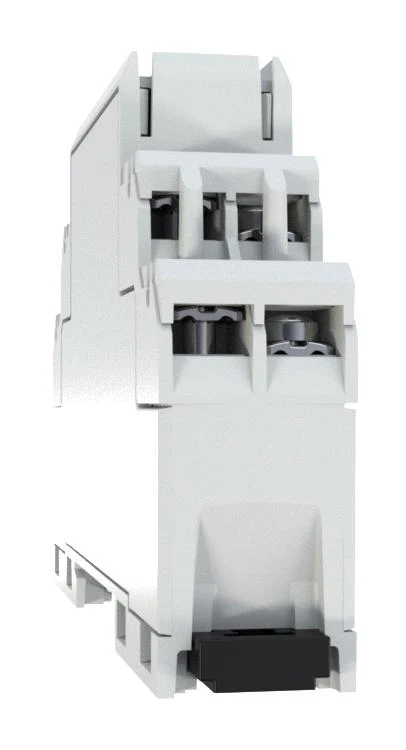

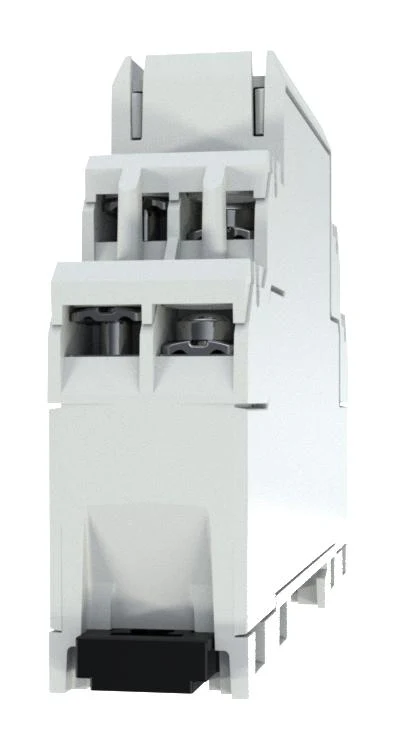

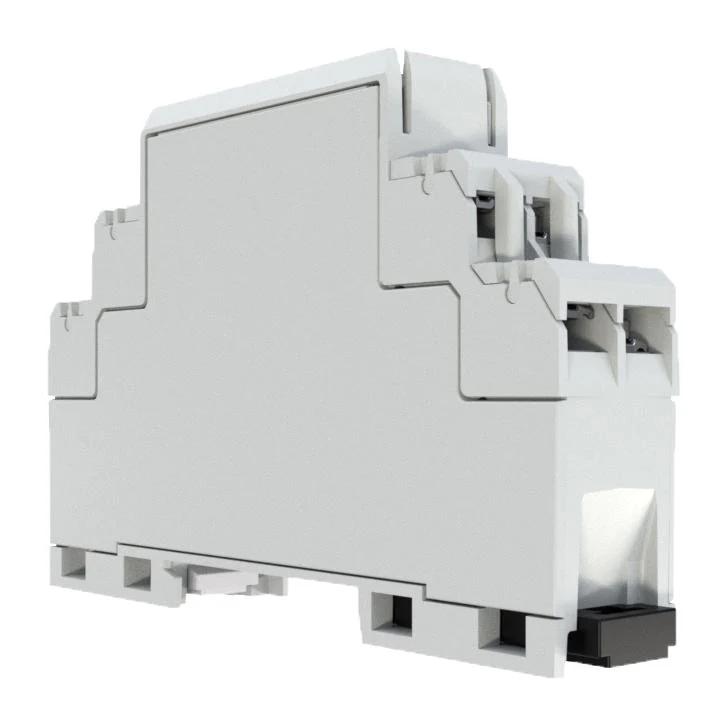

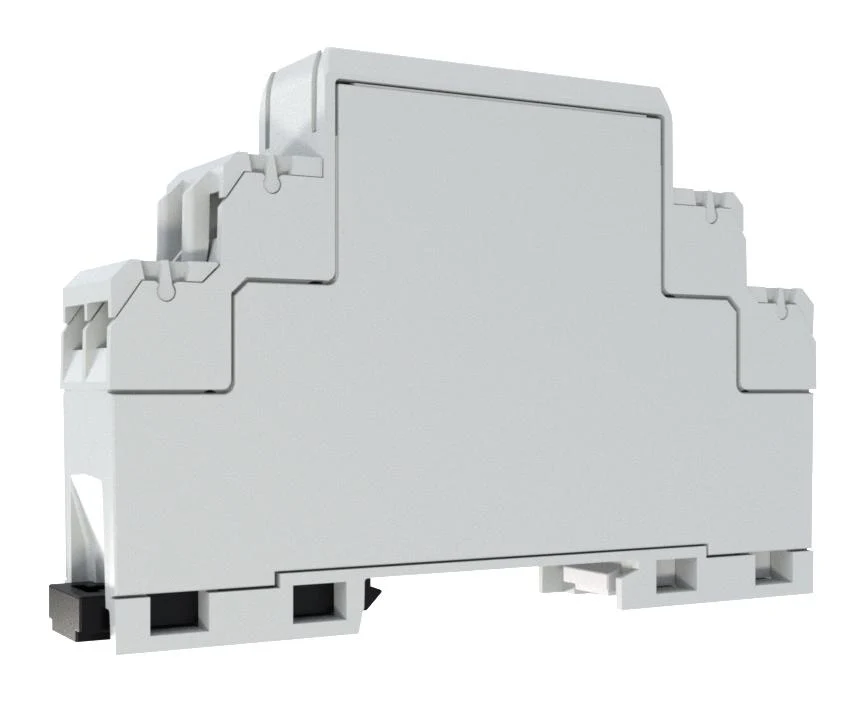

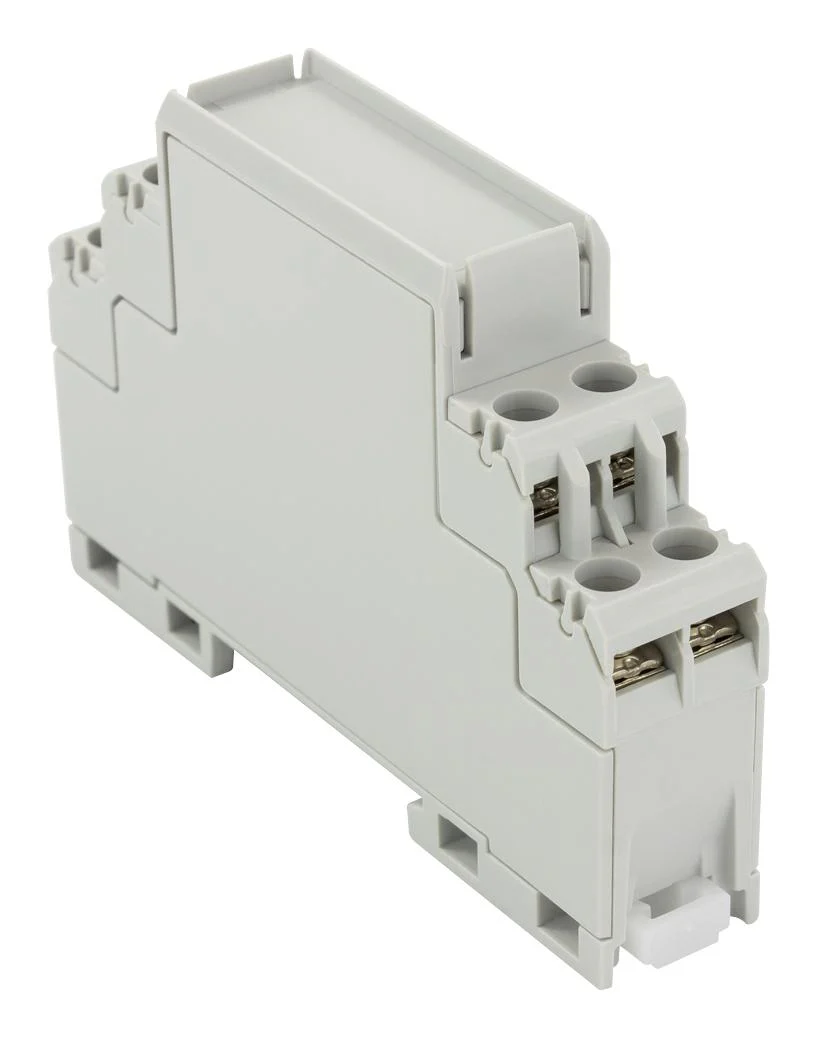

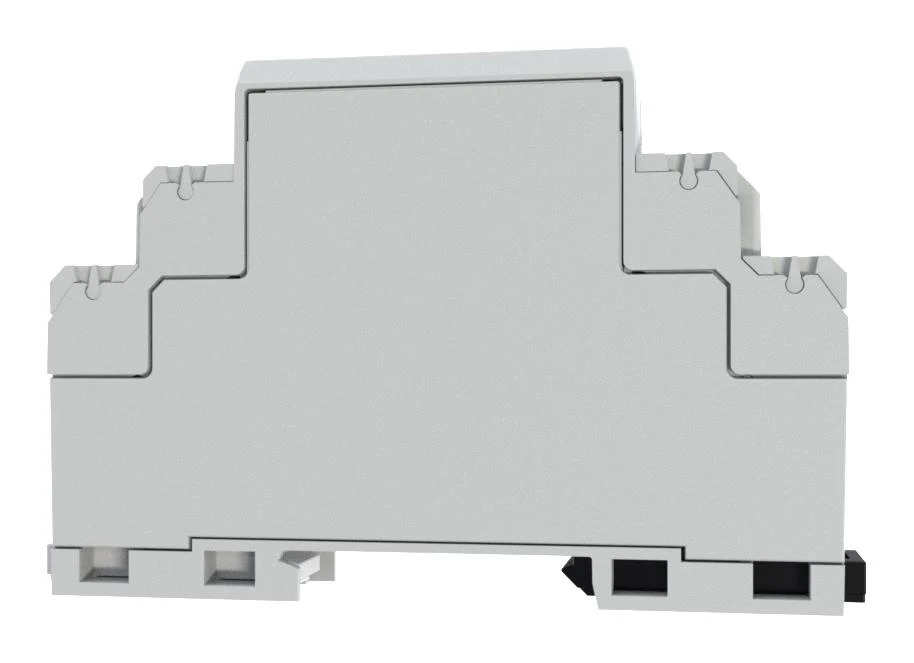

Camdenboss CMEB/1ST/KIT Plastic Enclosure Solid Top DIN Rail Polycarbonate 61.3 mm 17.86 90 IP20 IP40

UK manufactured CMEB extendable enclosure with two detachable end panels for ease of access. This extendable DIN rail terminal enclosure features two removable side panels to offering accessible internal wiring. Unique extension pieces can be used to connect multiple bodies together, providing more poles and wiring options. Internal solder tags offer an effective way of connecting to PCBs or flying wires. Accommodates full size internal PCBs, with the extended version supporting horizontal or vertical PCB's or separators between high and low power sides. Ideal for switch cabinet, distribution electronics and power management applications.

• Solid top
• Clip together design, no screws required
• Solid top creates a pre enclosed housing
• Various assembly methods, e.g. separate mains/high voltage sides
• M3 screw with 7mm saddle washer complies with EN60999-1 terminal standards
• Removable side panels, easy access to the internal space of the enclosure
• Solder tag terminals for simple and effective termination
• DIN rail mounting, fits 35mm top hat DIN rail
• UL94-V0 polycarbonate enclosure end panels and extension bracket
• IP40 rated enclosure, IP20 rated terminals

Contents

1x Solid top body, 2x End panels, 2x Terminal screw covers, 1x black clip, 1x white clip.

Other details

Brand	CAMDENBOSS
Part Number	CMEB/1ST/KIT
Quantity	Each
