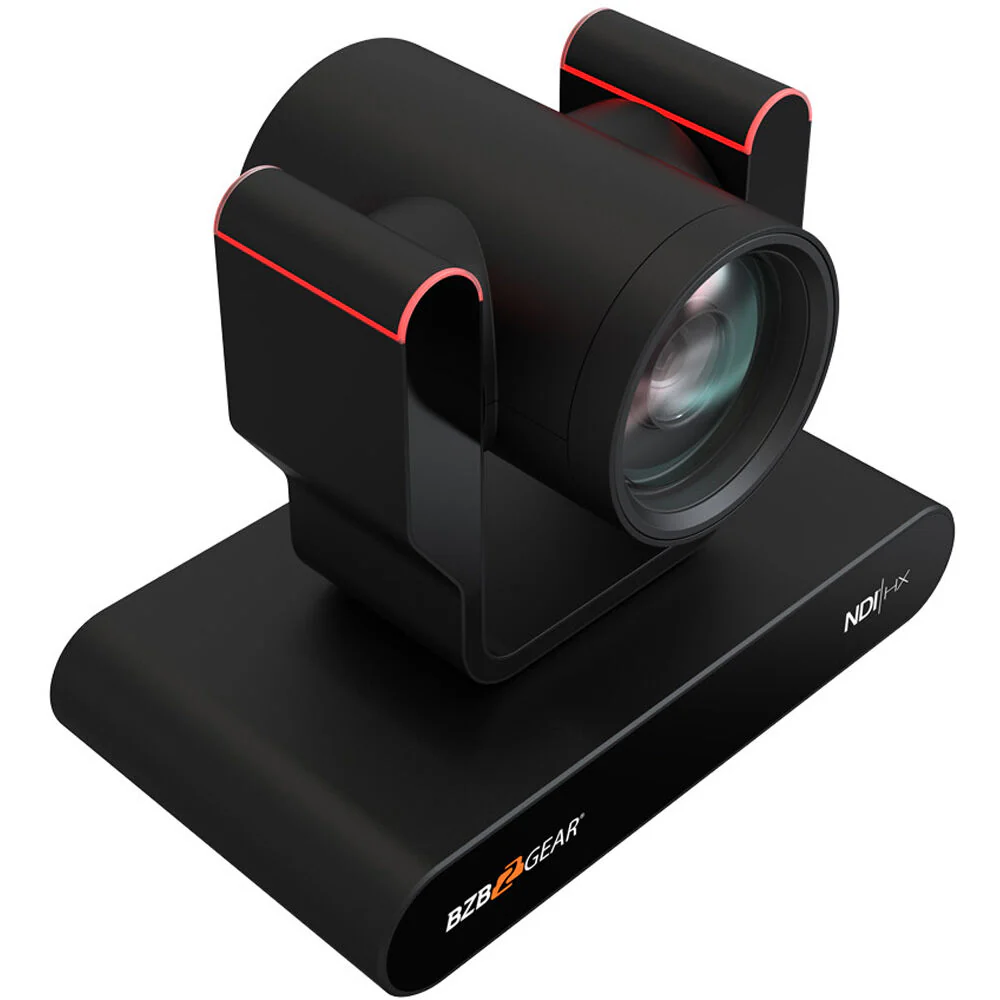

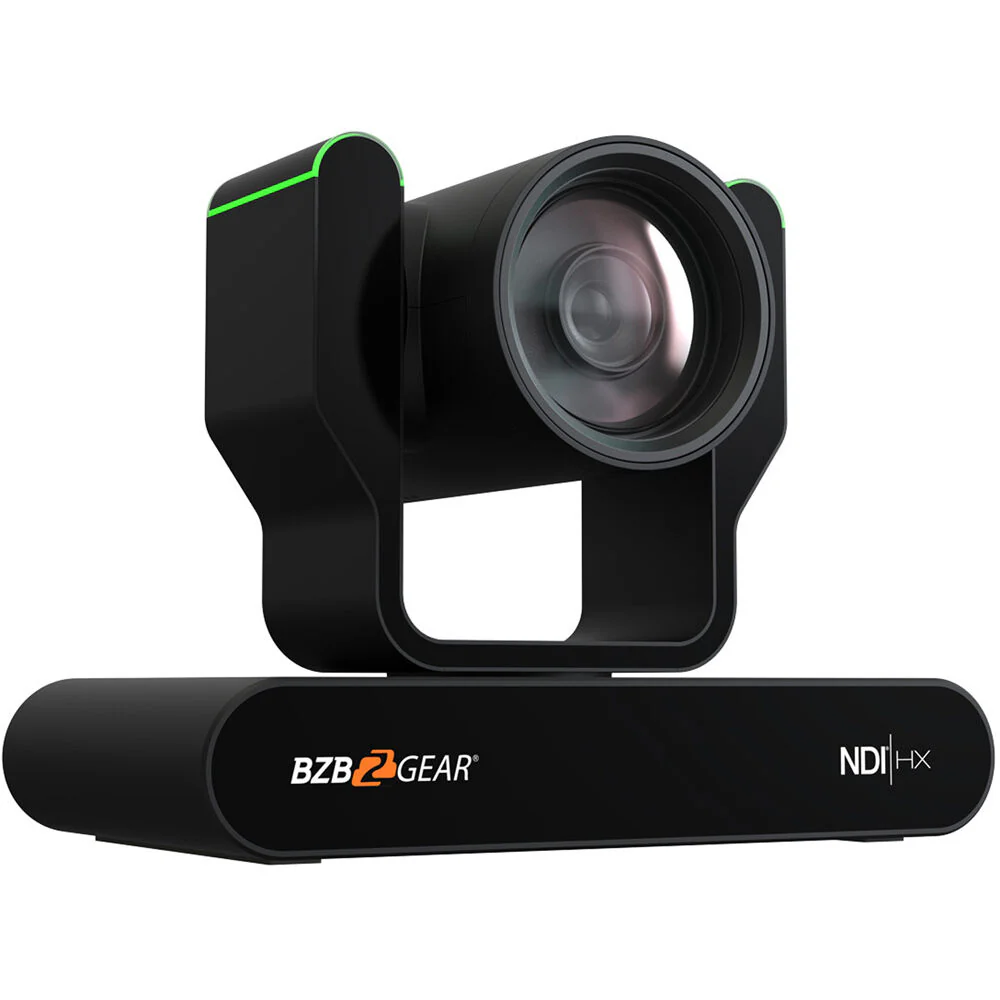

BZBGEAR Live Streaming NDI|HX3 PTZ Camera with Auto-Tracking, Tally & 12x Zoom (Black)
BZBGEAR BG-ADAMO-JR 12x Overview
By Photo's
Jennifer Hahn
Capture high-resolution 1080p60 imagery in your conference room, event space, or house of worship with the black Live Streaming NDI|HX3 PTZ Camera with Auto-Tracking, Tally & 12x Zoom from BZBGear. This camera features a 1/2.8" 2.07MP CMOS sensor, a 12x optical zoom, accurate autofocus, subject auto-tracking, and simultaneous output via HDMI, 3G-SDI, USB 3.0, USB 2.0, and IP streaming with SRT support. This model also features high-resolution, low-latency NDI|HX3 streaming to easily fit into your NDI network. You can embed analog audio into your video using the 3.5mm audio input.
You can record the camera's capture up to 1080p60 resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet), so it can be controlled, powered, and can stream over one connector, and it also supports RS-232 and RS-422 serial control.
Key Features
12x optical zoom lens
Support for high-quality, low-latency NDI|HX3 streams and is compatible with NDI 5.5
1080p60 resolutions provide fluid motion, clear image, and accurate colors
Auto focusing algorithms resulting in quick, accurate, and stable focus
Web interface control via RS-232 or RS-422, Web GUI, control app, or IR remote control
Supports UVC, VISCA-over-IP, and serial control protocols including ONVIF, Pelco-P/D, VISCA
microSD card for recording; supports up to 1TB cards
Free BG-PTZ-Control app/program for macOS and Windows
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
3G-SDI, HDMI, USB 2.0/3.0, NDI|HX3, IP LAN streaming
Two Mode Auto-Tracking software features a presenter mode that continuously tracks keeping the subject, keeping them framed, and zone mode holds the frame in predetermined zones
Stream to your choice of platform directly from the camera, no capture card needed
Configure up to 255 presets using the Web GUI or 10 presets via the IR remote control
H.264/H.265 video compression formats provide excellent image quality; H.264/H.265 video compression is supported by the LAN interface; USB 3.0 supports YUY2; USB 2.0 supports MJPG, H.264, YUY2, NV12, H.265; USB 3.0 supports YUY2.
3.5mm input for embedding audio into your live stream
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850050134121
In the Box
- BZBGEAR Live Streaming NDI|HX3 PTZ Camera with Auto-Tracking, Tally & 12x Zoom (Black)
- IR Remote Control
- Power Adapter
- RS-232 Control Cable
- USB 2.0 Cable
- USB 3.0 Cable
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
Additional Resources
BZBGEAR BG-ADAMO-JR 12xSpecs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Speed |
1/10000 to 1/25 Seconds
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps USB 1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 640 x 480p up to 30.00 fps 800 x 448 up to 30.00 fps 640 x 360 up to 30.00 fps 432 x 240 up to 30.00 fps 320 x 176 up to 30.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, NDI, NDI|HX3
1920 x 1080 at 60p |
| Supported Control Protocols |
IP
IR NDI Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
| PoE Support |
PoE 802.3af
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1/25 Seconds
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Color Temperature, One Push, Manual, Auto
|
Lens
| Focal Length |
4.1 to 49.2mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
Horizontal: 70.28 to 6.57°
Vertical: 42.06 to 3.76° |
| Maximum Aperture |
f/1.8 to 2.7
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps USB 1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 640 x 480p up to 30.00 fps 800 x 448 up to 30.00 fps 640 x 360 up to 30.00 fps 432 x 240 up to 30.00 fps 320 x 176 up to 30.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, NDI, NDI|HX3
1920 x 1080 at 60p |
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR NDI Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
Interface
| Media/Memory Card Slot |
Single Slot: microSDXC Only
|
| Video I/O |
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1x USB-A 2.0 Output 1x HDMI (Unspecified Signal) Output 1x BNC (12G-SDI) Output 1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Block (RS-422, RS-485) Input
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 1.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
|
Environmental
| Operating Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
|
General
| OS Compatibility |
Computer: Windows / macOS 11 or Later
Mobile: iOS Only |
| Weight |
4 lb / 1.8 kg (Body Only)
|
Packaging Info
| Package Weight |
6.025 lb
|
| Box Dimensions (LxWxH) |
11.5 x 11 x 7.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$926.44
Original: $3,088.12
-70%BZBGEAR Live Streaming NDI|HX3 PTZ Camera with Auto-Tracking, Tally & 12x Zoom (Black)—
$3,088.12
$926.44More Images
