AViPAS 3G-SDI/HDMI/USB PTZ Camera with PoE and 20x Zoom (Black)
AViPAS AV-2020 Overview
Capture professional HD video for your video conferencing, education, house of worship, or other video application with this black 3G-SDI/HDMI/USB PTZ Camera with PoE and 20x Zoom from AViPAS. The remotely controllable PTZ camera allows you to capture up to 1080p60 resolution with 3G-SDI and HDMI outputs, up to 1080p30 with dual IP streams via its RJ45 interface, and up to 720p over its USB 2.0 output. Featuring 20x optical zoom, it provides a 3.23 to 60° adjustable angle of view, a ±170° panning range, a ±90° tilting range, auto or manual focus, wide dynamic range, and serial control support.
The low-noise 1/2.8" CMOS sensor ensures a high signal-to-noise ratio while advanced 2D/3D noise-reduction technology further reduces image noise so that an even sharper image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live Internet stream. You can also output the video via USB Type-B, and with UVC and UAC support, making it easy to interface with a computer to send video and audio to a streaming or recording application. There is also a 3.5mm audio line input on the back to input stereo audio into your streams and video output.
The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF and Visca-over-IP control, or by using the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 128 presets using an optional serial controller, or store 10 presets when using the included IR remote. You can power the camera using a networked PoE+ (Power-over-Ethernet) switch, or by using the included power adapter. The camera also includes an RS-232 control cable and a USB cable.
Key Features
In the Box
- AViPAS 3G-SDI/HDMI/USB PTZ Camera with PoE and 20x Zoom (Black)
- Power Adapter
- Power Cord
- RS-232 Cable
- USB Cable
- IR Remote Control
- Limited 2-Year Warranty
AViPAS AV-2020 Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Actual: 2.1 Megapixel Effective: 2.07 Megapixel (1920 x 1080) |
| Minimum Illumination | 0.1 Lux |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 20x |
| Focal Length | 4.9 to 98mm |
| Field of View | Horizontal: 3.23 to 60° |
| Maximum Aperture | f/1.5 to 3 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | SDI, HDMI, RJ45: 1920 x 1080p at 24, 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps USB: 1280 x 720p at 25 fps 1024 x 576p at 30 fps 960 x 540p at 30 fps 640 x 360p at 30 fps 512 x 288p at 30 fps |
| IP Streaming | H.264, H.265, RTMP, RTSP: 1080p, 720p, 480p, 360p |
| IP Multi-Stream Support | Simultaneous H.264, H.265, MJPEG, ONVIF, RTMP, RTSP: 1080i, 1080p, 720p, 480p, 360p at 30p |
| Presets | 128 |
| Move Speed | Pan: 0 to 120°/sec Tilt: 0 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-90 to 90°) |
| Tally Light | No |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 VISCA |

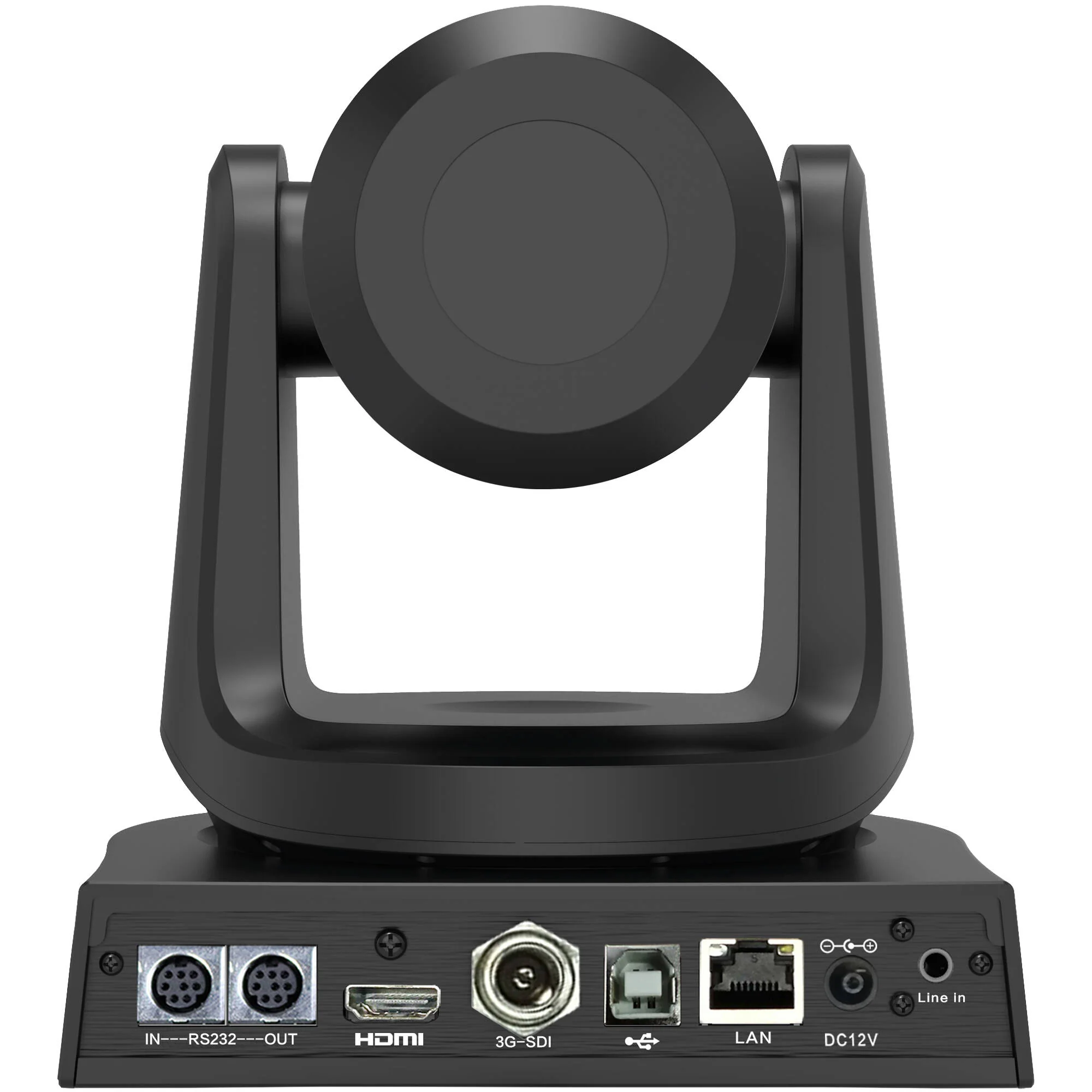

| Video Output Connectors | 1 x HDMI Type A Female 1 x BNC (3G-SDI) Female 1 x USB 2.0 Type-B (USB Video) Female 1 x RJ45 Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Mono Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output |
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x JEITA (12 VDC) |
| Power Consumption | Device: 11 W |
| Dimensions | 7.1 x 6.6 x 6.6" / 18 x 16.8 x 16.8 cm |
| Weight | 3.1 lb / 1.4 kg |
| Package Weight | 6.445 lb |
| Box Dimensions (LxWxH) | 11.7 x 10.8 x 10.6" |
