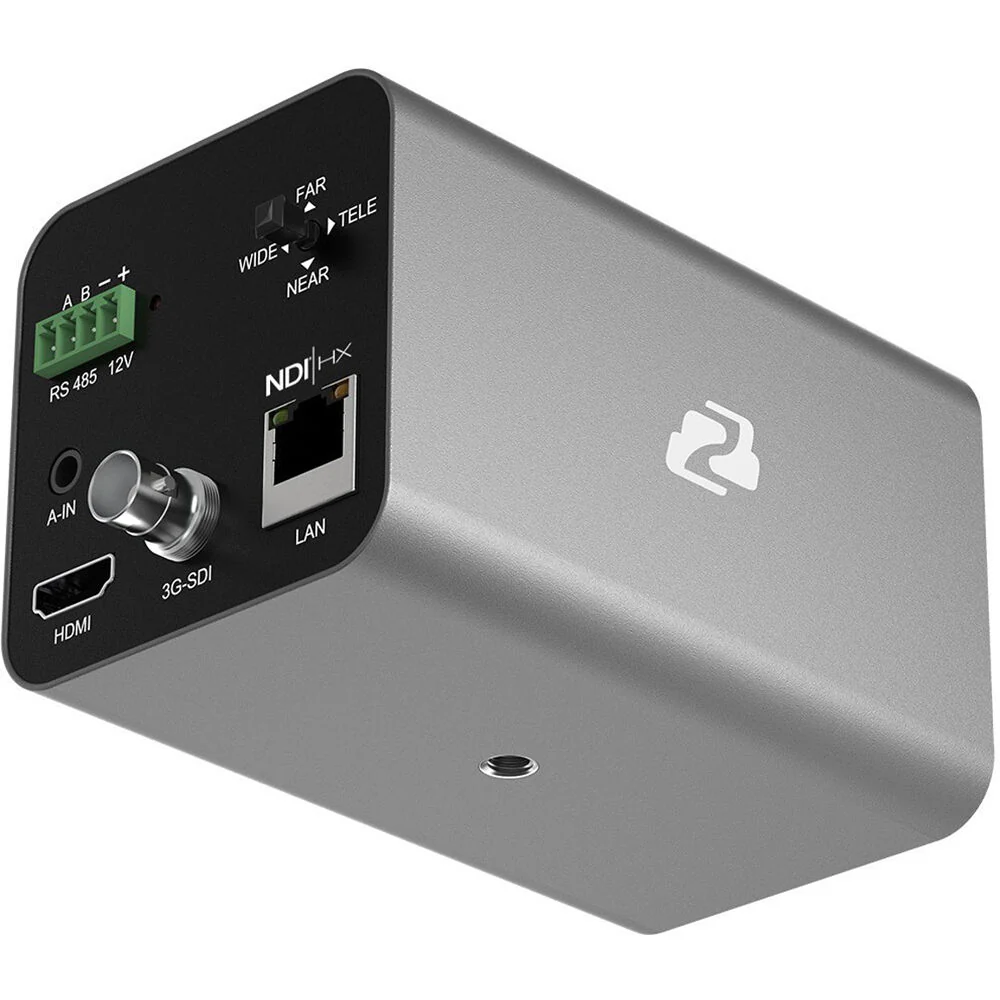

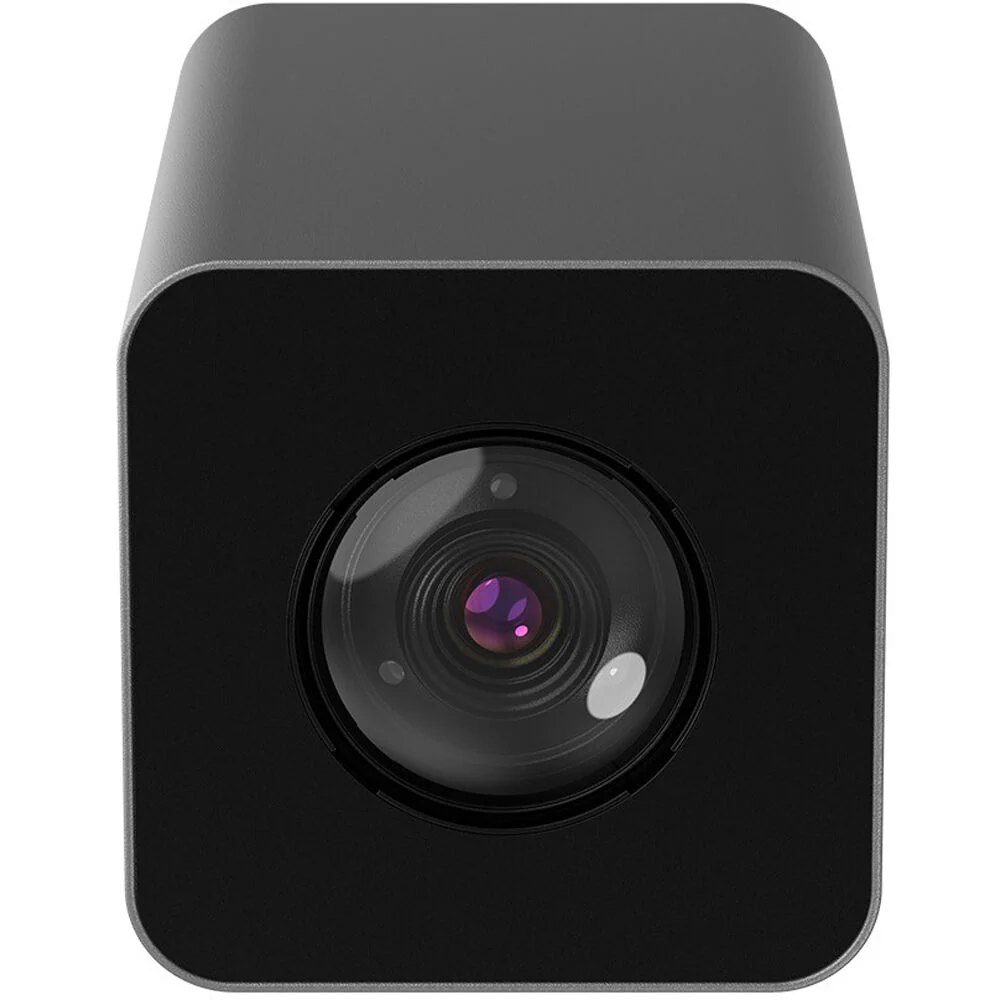

BZBGEAR 1080p HDMI/SDI/IP & NDI HX Box Camera with 20x Zoom & Audio Input
BZBGEAR BG-B20SHAN Overview
Add a high-quality, multifunction box camera to your conference room, event space, education environment, or house of worship with the black 1080p HDMI/SDI/IP & NDI|HX Box Camera with 20x Zoom & Audio Input from BZBGear. The camera features a 1/2.8" CMOS sensor and simultaneously outputs up to 1080p60 video over HDMI and 3G-SDI, and you can also utilize the NDI|HX protocol that works with any NDI network.

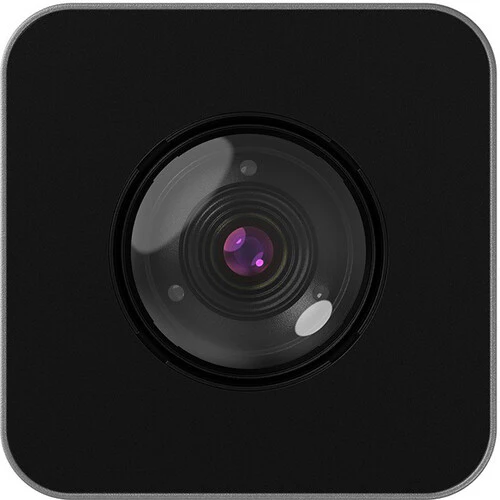

Equipped with a 20x optical zoom and a 12x digital zoom, this box-style camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide 60.2° field of view for capturing large meeting rooms. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed audio with the video signal. The camera streams are compatible with any NDI network and tools such as the NDI Studio Monitor, Scan Converter, and Virtual Input, so you can utilize the high-quality, low-bandwidth NDI|HX streams.
You can also manage the unit via IP using ONVIF or by using its RS-485 serial port with a separately available serial controller. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
In the Box
- BZBGEAR 1080p HDMI/SDI/IP & NDI HX Box Camera with 20x Zoom & Audio Input
- Power Adapter
- Power Cable
- Limited 3-Year Manufacturer Warranty
Guides & Manuals
BZBGEAR BG-B20SHAN Specs

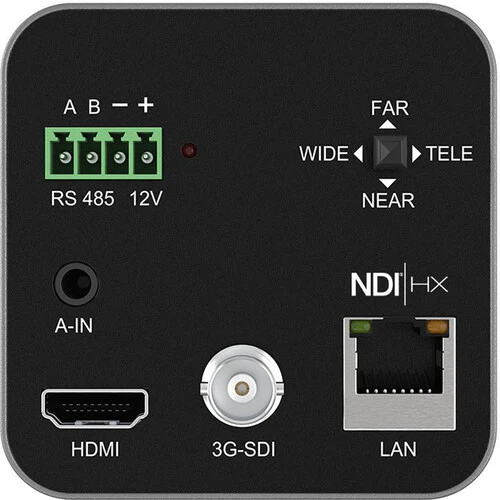

| Video I/O |
1 x BNC (3G-SDI) Output
1 x HDMI Output 1 x RJ45 Input/Output |
| Audio I/O |
1 x 1/8" / 3.5 mm Line/Mic Input
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 1 A
|
| Power Consumption |
12 W
|
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Mounting |
1 x 1/4"-20 Thread
|
| Dimensions |
4.8 x 2.8 x 2.8" / 122 x 70 x 70 mm
|
| Weight |
7.1 oz / 200 g
|
| Package Weight |
2.135 lb
|
| Box Dimensions (LxWxH) |
7.1 x 6.5 x 4.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
