AIDA Imaging UHD NDI|HX3 POV Camera
AIDA Imaging UHD-NDI3-300 Overview
This
UHD NDI|HX3 POV Camera from
AIDA Imaging provides 4K60 video over HDMI output or combined video and data signals over IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 5mm CS-mount lens.
AIDA Imaging offers this innovative POV camera capable of capturing stunning 4K60 video with a 78° field of view. Pairing this high-speed functionality with NDI|HX3 IP streaming compatibility, the UHD-NDI3-300 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately). HDMI output with embedded audio is also available.

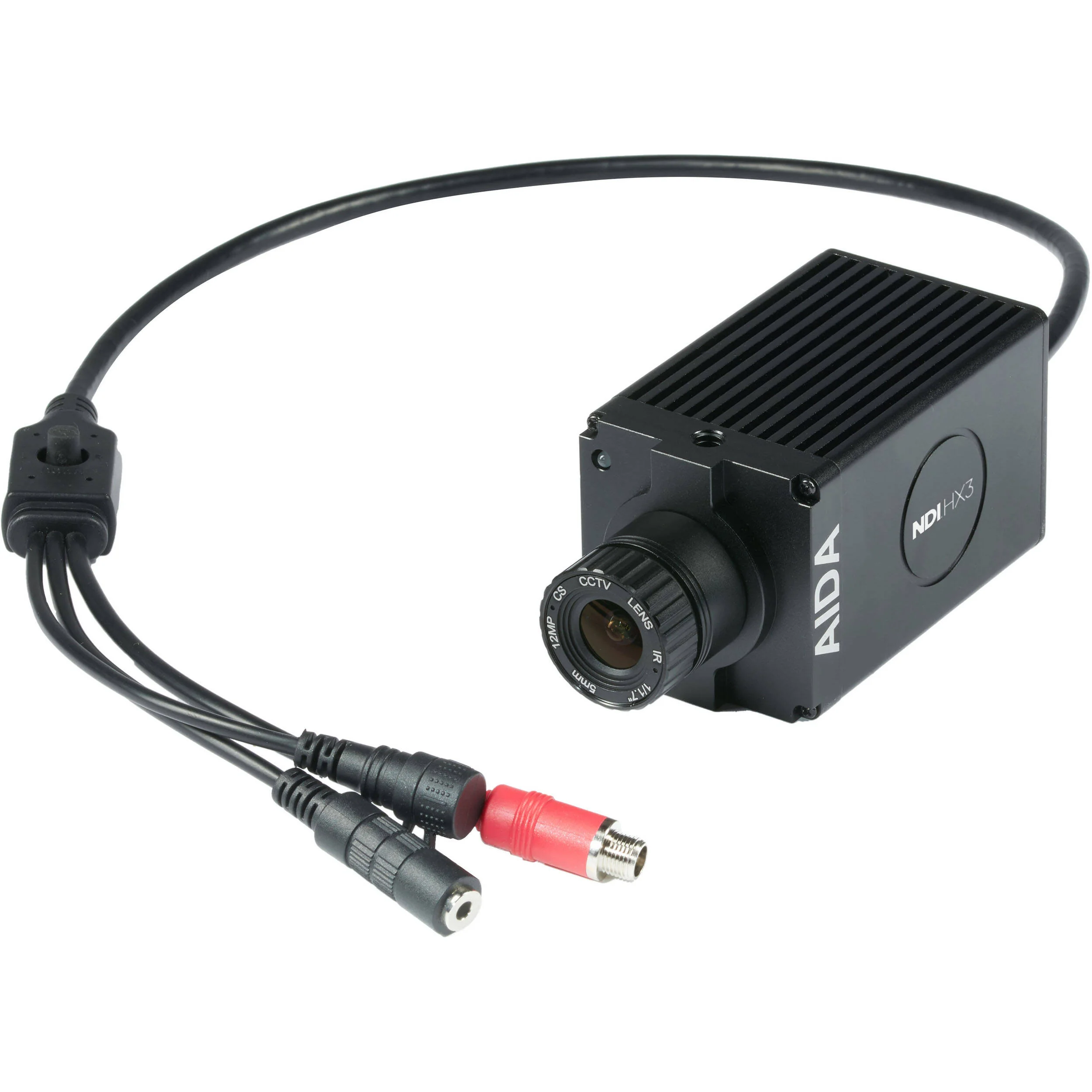

The UHD-NDI3-300 is housed in a compact and rugged case suitable for a wide variety of applications. 1/4"-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live. A built-in breakout cable carries the 12 VDC input port and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment.
In the Box
- AIDA Imaging UHD NDI|HX3 POV Camera
- 5mm 12MP Lens
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
- Limited 2-Year Manufacturer Warranty
AIDA Imaging UHD-NDI3-300 Specs
General
| Compatibility |
Newtek NDI|HX
|
| Image Sensor |
1/2.8" Progressive CMOS
|
| Effective Pixels (H x V) |
3840 x 2160
|
| Resolutions |
NDI|HX/HDMI: 2160p60/59.94/50/30/29/97/25/24
NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50 |
| Lens |
12MP 5mm CS-Mount
|
| Field of View |
78°
|
| Color Spaces |
4:2:2 (YCbCr) 10-bit
|
| Minimum Illumination |
Day: 0.2 Lux
Night: 0.1 Lux |
Inputs / Outputs
| USB I/O |
1 x USB-C Female Input/Output
|
| Video I/O |
1x HDMI Output
1x RJ45 Output |
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
|
| Protocol |
IP: UPD|IP, RTSP|RTMP, SRT, NDI|HX
|
Power
| Power Source |
AC Adapter with Power Brick (Included), PoE
|
| DC Input Power |
12 VDC
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
Physical
| Mounting |
Top: 1 x 1/4"-20 Thread
Bottom: 1 x 1/4"-20 Thread |
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
3.35 x 1.93 x 1.93" / 8.51 x 4.9 x 4.9 cm
|
| Weight |
0.8 lb / 350 g
|
Packaging Info
| Package Weight |
1.955 lb
|
| Box Dimensions (LxWxH) |
9.6 x 5.6 x 4.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
