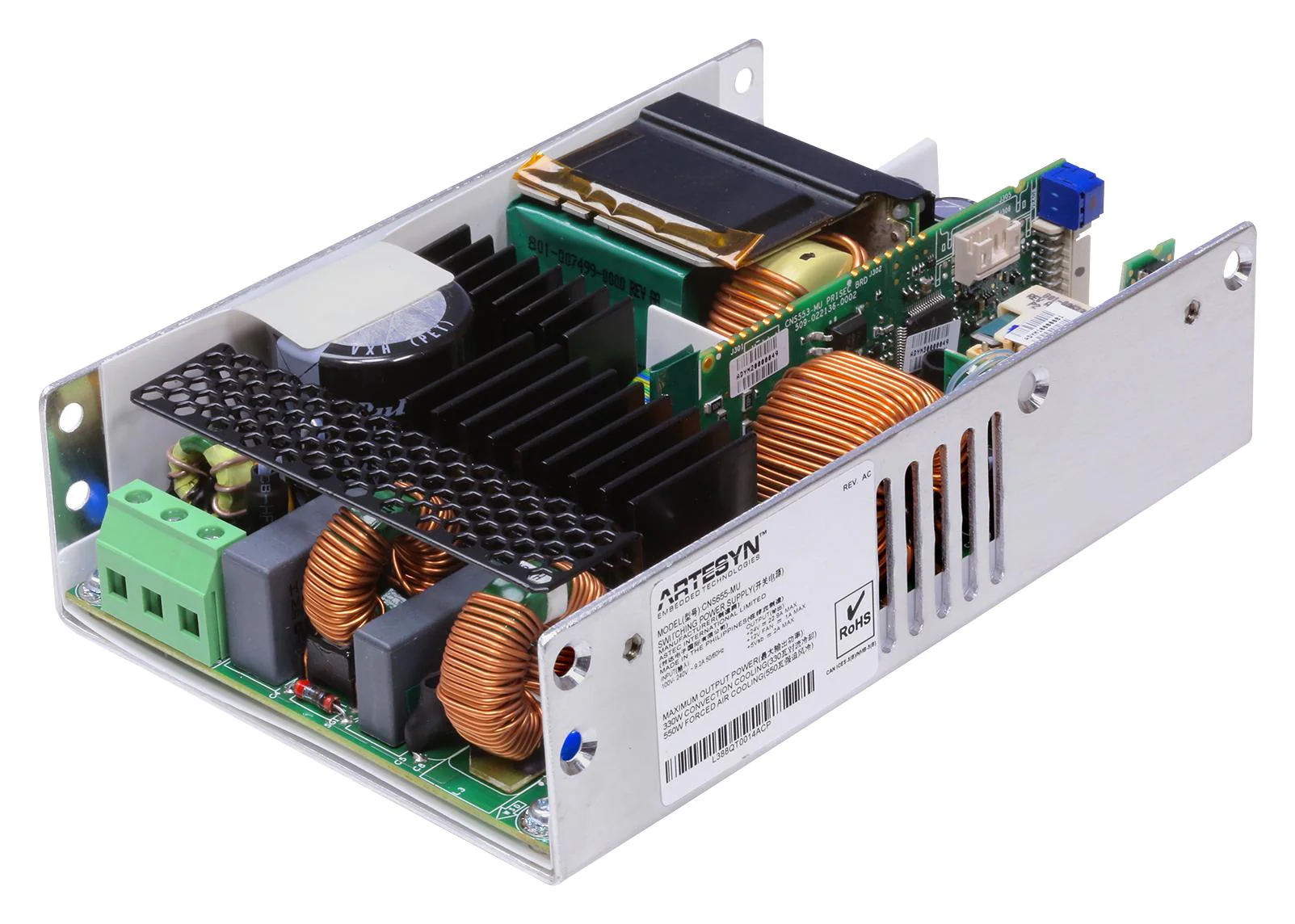

ARTESYN EMBEDDED TECHNOLOGIES CNS655-MU AC/DC Open Frame Power Supply (PSU), Medical, 1 Output, 650W @ 400LFM, 400 W, 90V AC to 264V AC
ARTESYN EMBEDDED TECHNOLOGIES CNS655-MU AC/DC Open Frame Power Supply (PSU), Medical, 1 Output, 650W @ 400LFM, 400 W, 90V AC to 264V AC
The CNS655-MU from Artesyn Embedded Technologies is a CNS650-M series 650W AC to DC power supply. This power supply is designed for forced air and natural convection cooling. UL/CSA No. 60950-1, UL 60950-1/C22.2, No. 60601-1, ES60601-1/C22.2, TUV EN 60601-1, DEMKO EN 60950-1, CB IEC 60950-1, IEC 60601-1, IEC 62368-1 and CCC GB4943.1/GB9254; GB17625.1 safety standards.
- Input voltage range from 90VRMS to 264VRMS
- 24V output voltage, 16.7A max continuous load (free air), 27.1A max peak load (free air)
- ±2% regulation, 240mV ripple (p-p), PMBus® interface
- Medical and ITE safety approvals, 2x MOPP
- Dual fused, type BF ready, built-in class B EMI filter
- Less than 1U high
- <500mW no-load power consumption, inrush current is 50Apk, cold start
- Overvoltage, overload and overtemperature protection
- 4" x 6" U-channel construction
- Operating temperature range from -20°C to +80°C (derate at 50°C), start-up at -40°C
Applications
Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: Medical |
| No. of Outputs: 1 Output |
| Power Rating (Forced Cooling): 650W @ 400LFM |
| Power Rating (Convection Cooling): 400W |
| Input Voltage VAC: 90V AC to 264V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 27.1A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Product Range: CNS650-M Series |
Other details
| Brand | ARTESYN EMBEDDED TECHNOLOGIES |
| Part Number | CNS655-MU |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
