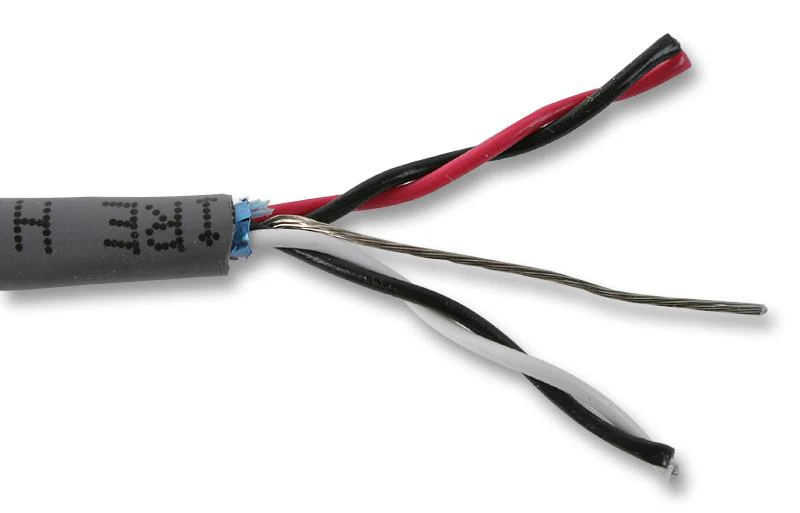

Alpha Wire 5473L SL005 Multipair Cable Communication Screened 3 Pair 24 AWG 0.22 mm² 100 ft 30.5 m

The 5473L SL005 is a 100ft 3-pair foil-shield low-smoke zero-halogen Communication and Control Cable with stranded tinned copper conductors. The cable combines LSZH rated insulation and a jackets with the rugged performance. The specially formulated LSZH material minimizes the effects from smoke and harmful corrosive gases in the event of combustion. Low smoke means easier visibility in exiting the area and reduced danger of smoke inhalation, while low toxicity means no harm to people from halogenated gases.

• CPR: Not Yet Qualified
• LSZH materials for low-smoke properties and reduced toxicity
• Tinned copper conductors resist corrosion
• Stranded conductors for installation flexibility
• Multi-conductor and multi-pair configurations
• Foil shielded for EMI protection and improved signal integrity
• 24.6lb Maximum pull tension
• 16pf/ft at 1kHz Mutual capacitance (nominal)
• 0.19µH/ft Nominal inductance
• -20 to 75°C Temperature range

Applications

Audio, Communications & Networking, Computers & Computer Peripherals, Security, Automation & Process Control, Sensing & Instrumentation, Industrial

Product details

Cable Shielding	Screened
No. of Pairs	3 Pair
Wire Gauge	24AWG
Conductor Area CSA	0.22mm²
Reel Length (Imperial)	100ft
Reel Length (Metric)	30.5m
Jacket Colour	Slate
No. of Max Strands x Strand Size	7 x 0.2mm
Voltage Rating	300V
Jacket Material	LSZH
Conductor Material	Tinned Copper
External Diameter	5.66mm
Product Range	-

Other details

Brand	ALPHA WIRE
Part Number	5473L SL005
Quantity	Reel of 30
Technical Data Sheet EN

Price For Reel of 30
