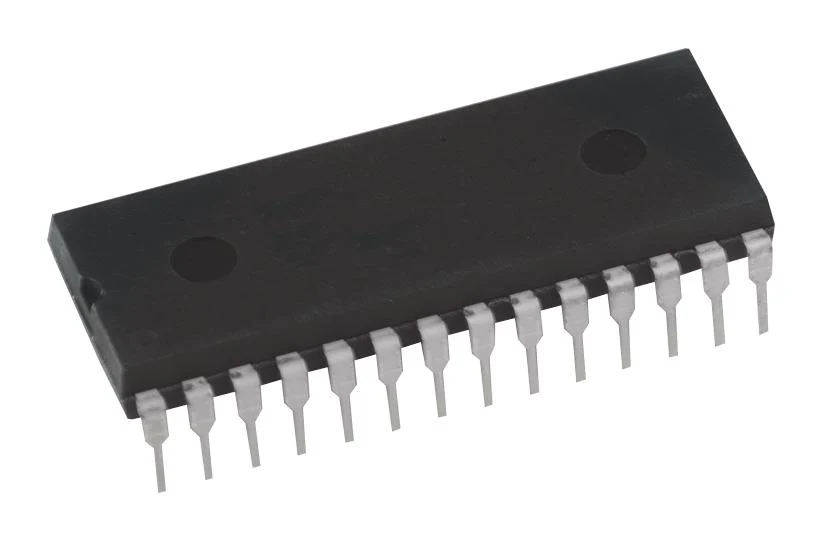

ALLIANCE MEMORY AS6C62256-55PCN SRAM, Asynchronous, 256 Kbit, 32K x 8bit, DIP, 28 Pins, 2.7 V
ALLIANCE MEMORY AS6C62256-55PCN SRAM, Asynchronous, 256 Kbit, 32K x 8bit, DIP, 28 Pins, 2.7 V
Product Overview
AS6C62256-55PCN is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for low power application, and particularly well suited for battery back-up non-volatile memory application.
- Access time : 55ns
- Low power consumption, 15mA typ operation current, 1µA typ standby current (VCC = 3.0V)
- Wide range power supply : 2.7 to 5.5V
- Fully compatible with all competitors 5V and 3.3V product
- All inputs and outputs TTL compatible
- Fully static operation, tri-state output
- Data retention voltage is 1.5V (minimum)
- 32k x 8 organization
- 28pin 600mil PDIP package
- Commercial operating temperature range from 0°C to 70°C
Product details
Other details
| Brand | ALLIANCE MEMORY |
| Part Number | AS6C62256-55PCN |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
