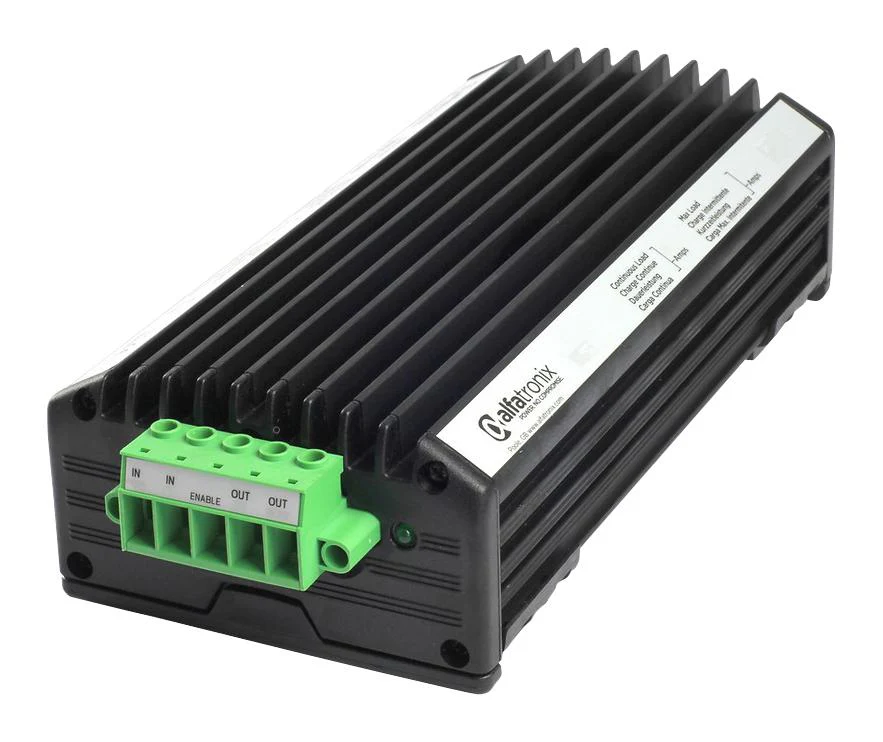

ALFATRONIX PV50S Non Isolated POL DC/DC Converter, 1 Output, 600 W, 12 V, 50 A, Fixed
PV50S is a PowerVerter voltage converter. Using the latest in switch mode technology, new 50amp PowerVerter offers outstanding performance including 93% efficiency right across the load spectrum and a low 15mA quiescent current. It utilises our very successful 'I' shaped mounting cradle for fast, secure installation. Connection is by a screw secured quality connector (female section included) for reliable wiring. Output can be switched on/off using low power enable line.
- State of the art switch mode electronic circuit
- All SMT component assembly for fully automated manufacture
- 93% efficient, IP53 design - no fan or ventilation holes
- Quality casing design in aluminium and glass filled polycarbonate (V0 rated)
- Input voltage range from 17 to 32VDC, 93% typical power conversion efficiency
- 50A/60A non-isolated, 24VDC input, 12VDC output nominal voltage
- Five terminal connector with screw security connections (female mating half supplied)
- 95% maximum non-condensing operating humidity
- Operating temperature range from -25 to +30°C, >162 years (HRD4) mean time between failures
- Dimension is 283 x 125 x 74mm
Product details
| Power Supply Applications: - |
| No. of Outputs: 1 Output |
| Output Power Max: 600W |
| Output Voltage Nom: 12V |
| Output Current Max: 50A |
| DC / DC Converter Output Type: Fixed |
| DC / DC Converter Mounting: Chassis |
| Input Voltage DC Min: 17V |
| Input Voltage DC Max: 32V |
| DC / DC Converter Type: Enclosed |
| Depth: 283mm |
| Width: 125mm |
| Height: 74mm |
| Product Range: PowerVerter Series |
Other details
| Brand | ALFATRONIX |
| Part Number | PV50S |
| Quantity | Each |
| Technical Data Sheet EN |  |
