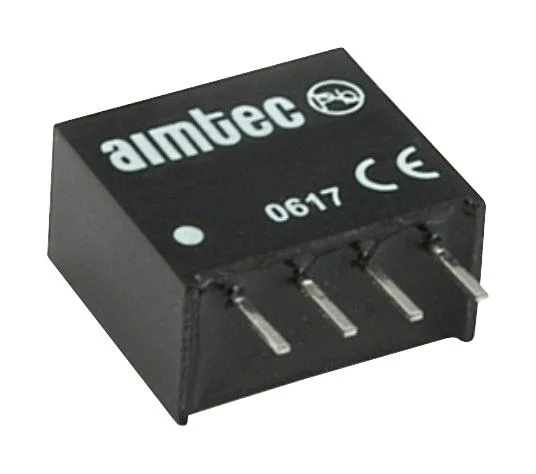

Aimtec AM1S-0505SZ Isolated Through Hole DC/DC Converter 1 W Output 5 V 200 mA New

AM1S-0505SZ is an AM1S-Z series 1W DC-DC converter. It features low ripple and noise, 4 pin SIP package and it is pin compatible with multiple manufacturers. Safety specifications are EN55032, IEC61000-4-2(ESD), IEC61000-4-3, IEC61000-4-4(EFT), IEC61000-4-5(Surge), IEC61000-4-6(CS), IEC61000-4-8(PFMF).

• 1W DC/DC converter
• Input voltage range from 4.5 to 5.5V, output voltage is 5V
• Maximum output current is 200mA, isolation is 1000VDC
• Efficiency is 81%
• 4 pin SIP package, low ripple and noise
• Typical switching frequency is 80KHz(100% load)
• Non-conductive black plastic UL94-VO case material
• Operating temperature range from -40°C to +85°C
• Dimension (L x W x H) is 11.68 x 6.00 x 10.15mm

Other details

Brand	AIMTEC
Part Number	AM1S-0505SZ
Quantity	Each
Technical Data Sheet EN
