ZWO ASI676MC Overview

Capture meteors, surveil the sky, and make high-resolution planetary images with the ASI676MC USB 3.0 Color Astronomy Camera from ZWO. The square sensor format is especially compatible with wide-angle or fisheye lenses. It also allows for easy mosaic stitching of images. Equipped with a Sony IMX676 CMOS sensor, the camera achieves 12MP resolution with low read noise and no amp glow. It transmits data to your computer quickly, thanks to the USB 3.0 interface and DDR3 256MB cache, with a frame rate as high as 31.2 fps. The camera's 10.55ke full well capacity allows for long exposures and helps avoid overexposure issues.

2.1MP Sensor
The ASI676MC features a 7.1mm square Sony sensor with a resolution of 3552 x 3552. The 2µ pixels accommodate a full well capacity of 10.55ke. The sensor boasts a quantum efficiency of 83%. The square shape of the sensor is highly compatible with wide-angle lenses for meteor capture and simplifies mosaic stitching.
USB 3.0 & 256M DDR3 Memory
The ASI676MC is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.
High-Conversion Gain Mode
HCG mode comes on automatically when the gain is set to 180, and it keeps readout noise as low as 0.56e while maintaining a nearly 11-stop dynamic range.
No Amp Glow
Using zero-glow amp circuitry, the ASI676MC eliminates amp glow�a weak infrared light source often created by traditional CMOS sensors, sometimes seen in the corners of uncalibrated images. You won't have to worry about it, even during high-gain, long-exposure imaging.
IR Cut Window
The 21mm diameter, 1.1mm thickness sensor window is infrared-cut coated to reduce IR interference and improve image quality.

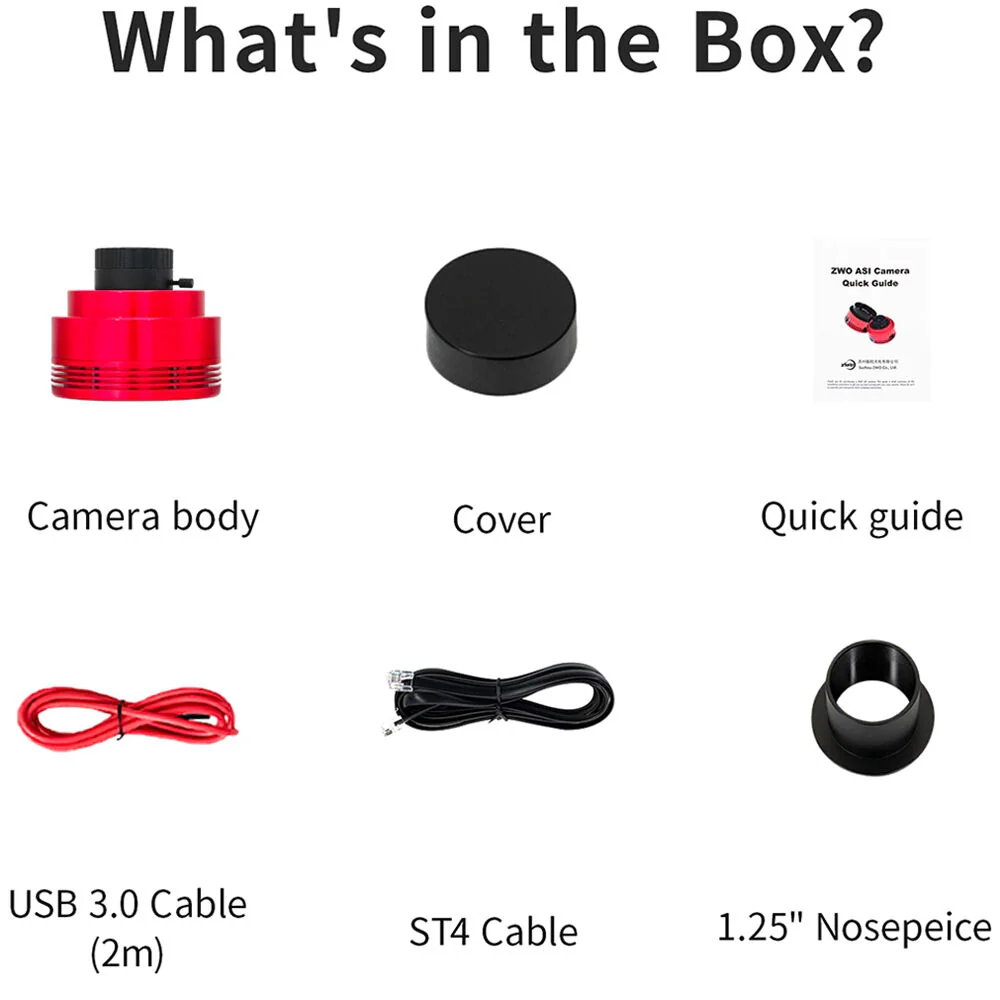

Items Included

  • ZWO ASI676MC USB 3.0 Color Astronomy Camera
  • USB 3.0 Cable (6.6')
  • ST4 Cable
  • Nosepiece (1.25")
  • Cover
  • Limited 2-Year Manufacturer Warranty

Additional Resources

No additional resources available

ZWO ASI676MC Specs

General
Image Sensor
12MP 7.1 mm Square Sony IMX676 CMOS
Sensor Resolution
3552 x 3552
Pixel Pitch
2 µ
Frame Rate
31.2 fps
Readout Noise
0.56 e
Internal Memory
DDR3 256 MB
Ports
1 x USB 2.0/3.0
1 x ST4
Power
Power Source
USB
Physical
Mounting
1x M42 x 0.75
1x 1/4"-20
Color
Red
Material of Construction
Aluminum
Dimensions
2.41.1" / 6228 mm (Diameter)
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
0.91 lb
Box Dimensions (LxWxH)
6.1 x 6.1 x 2.6"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$209.93

Original: $699.77

-70%
ZWO ASI676MC USB 3.0 Color Astronomy Camera—

$699.77

$209.93

More Images

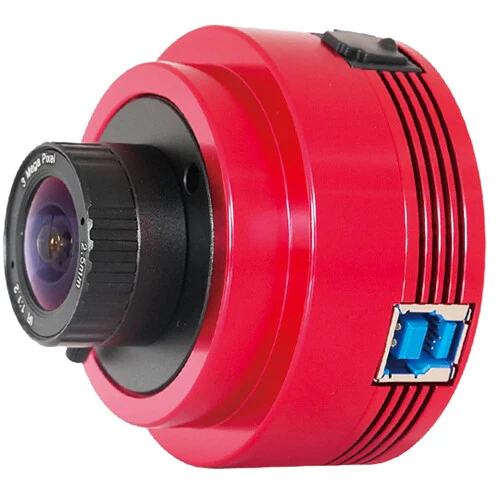

ZWO ASI676MC USB 3.0 Color Astronomy Camera - Image 2

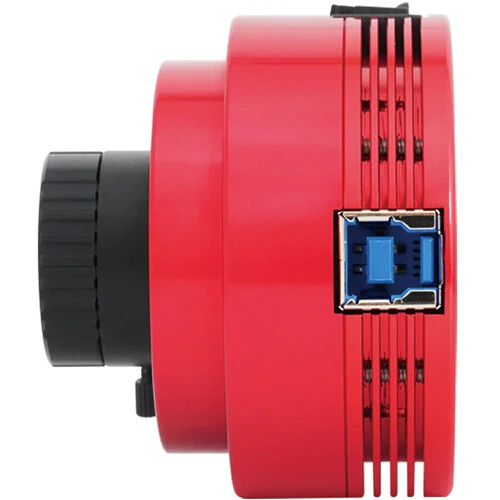

ZWO ASI676MC USB 3.0 Color Astronomy Camera - Image 3

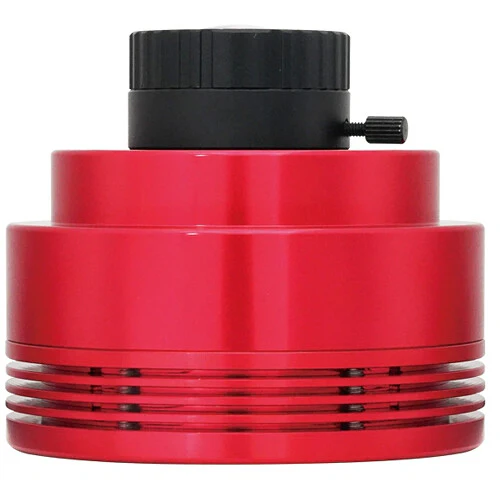

ZWO ASI676MC USB 3.0 Color Astronomy Camera - Image 4
