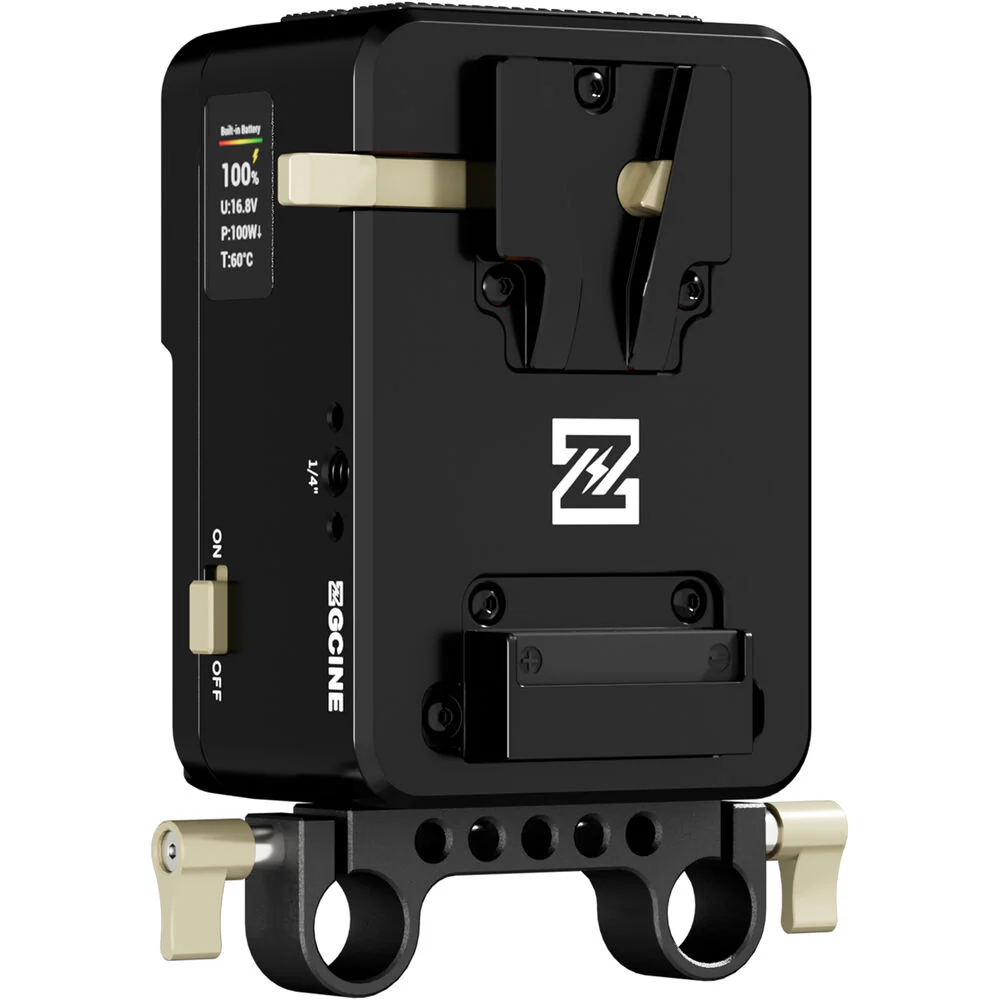

ZGCINE VM-HS1 Hot-Swap V-Mount Battery Plate (Black)
ZGCINE VM-HS1 Overview

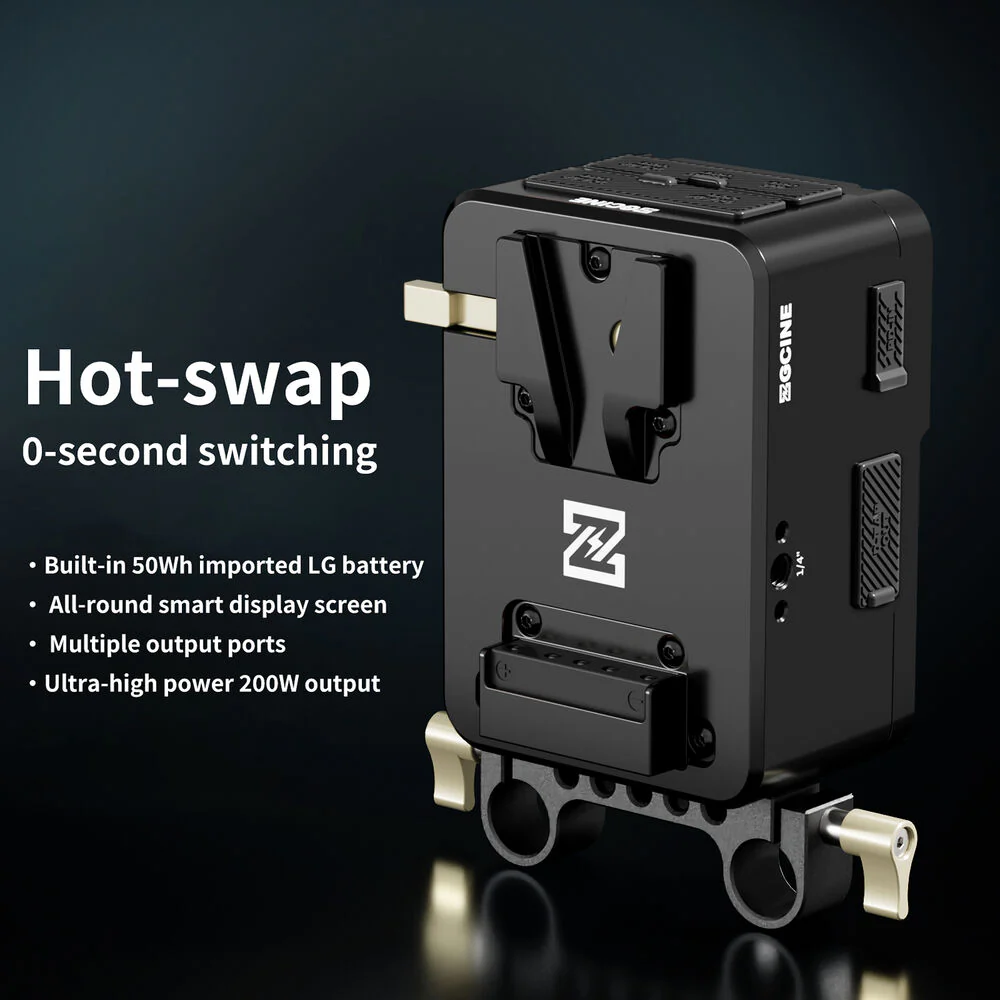

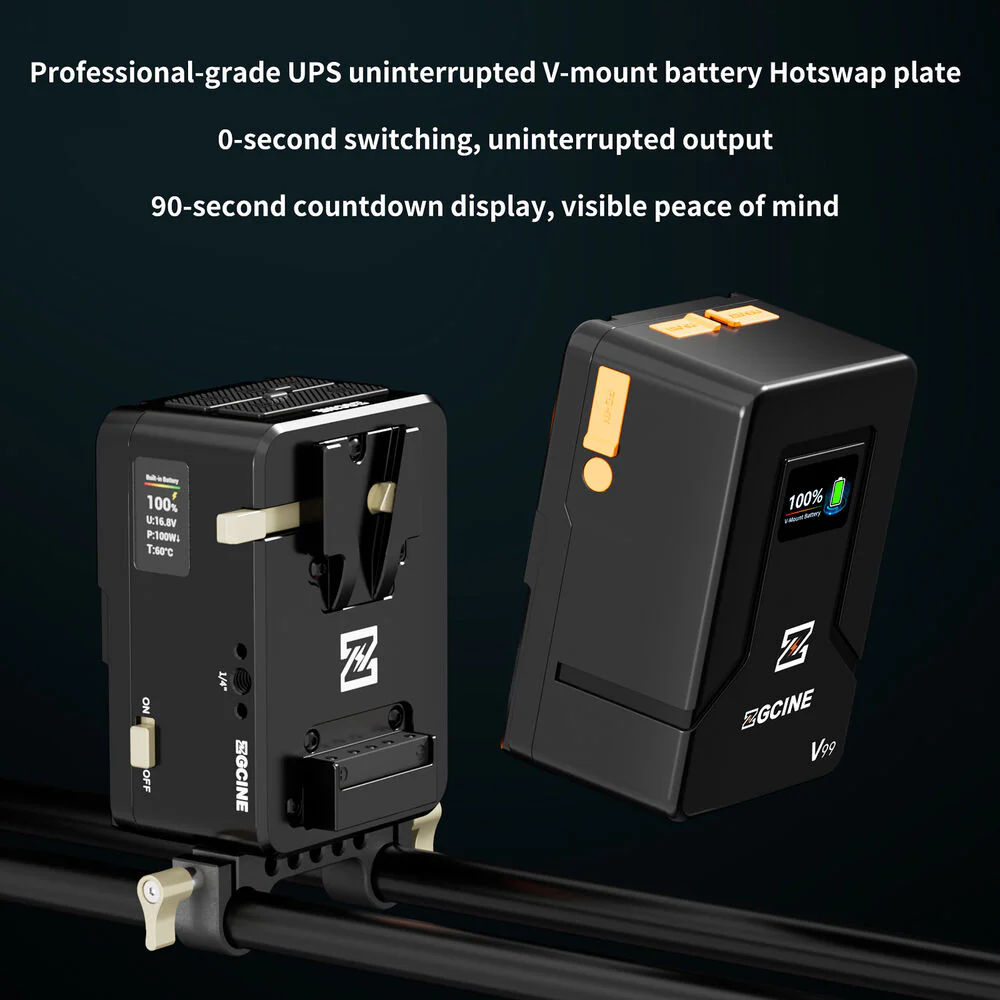

Add power and redundancy to your camera rig with the VM-HS1 Hot-Swap V-Mount Battery Plate from ZGCINE. This compact unit provides a V-mount battery plate with numerous outputs as well as a built-in 3500mAh / 50Wh battery to provide redundancy with no interruption when you need to swap out your V-mount battery for charging.

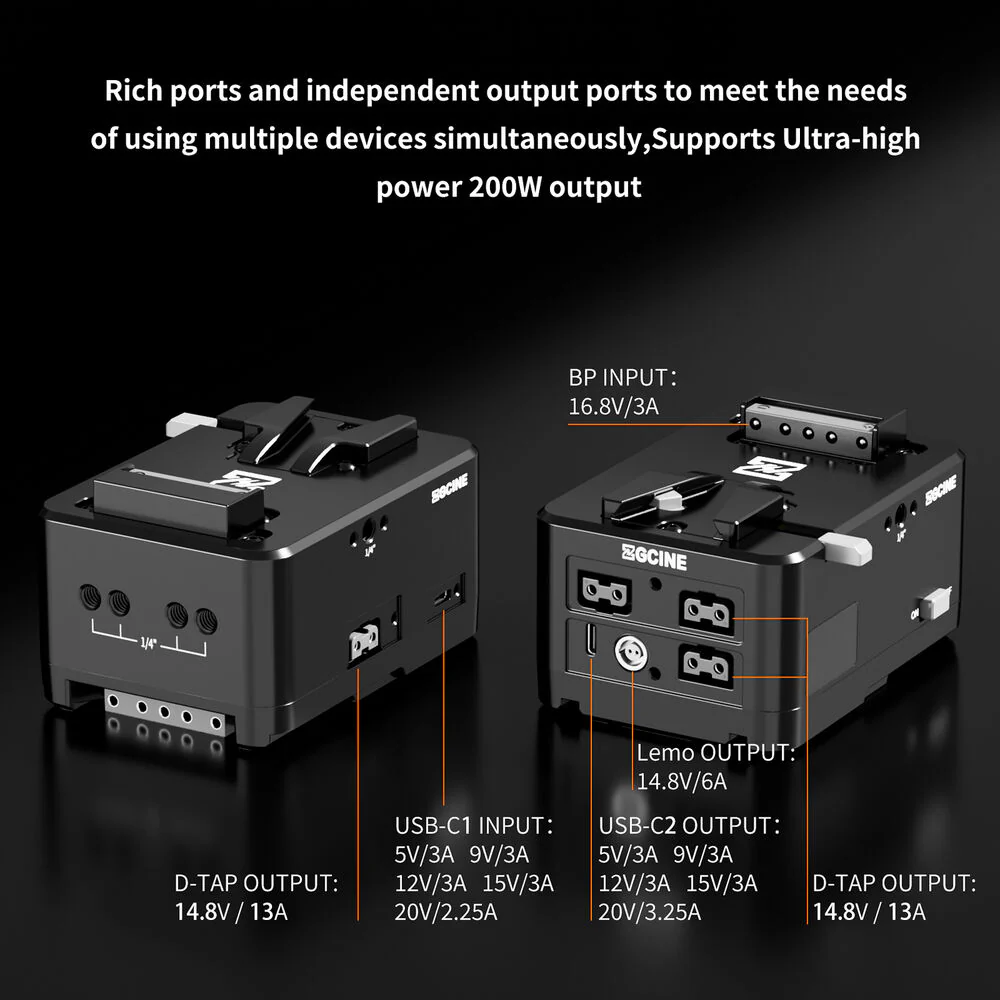

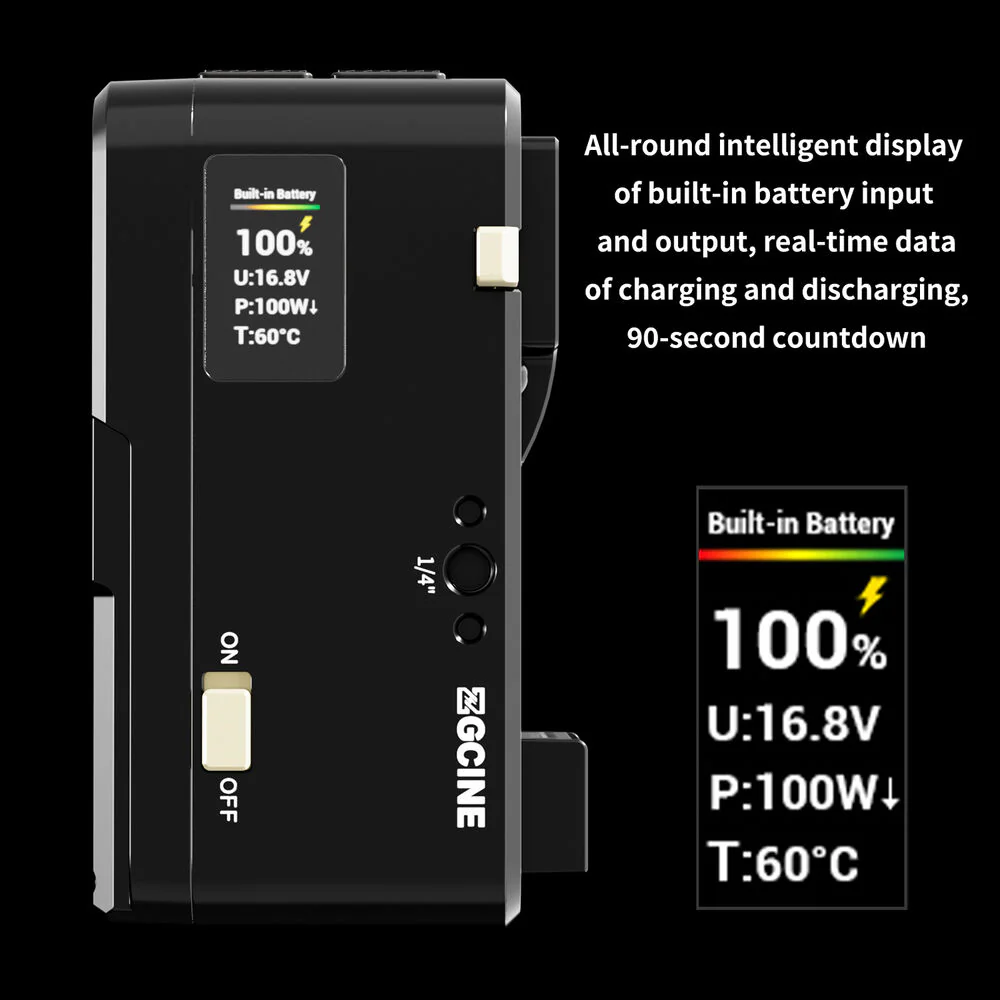

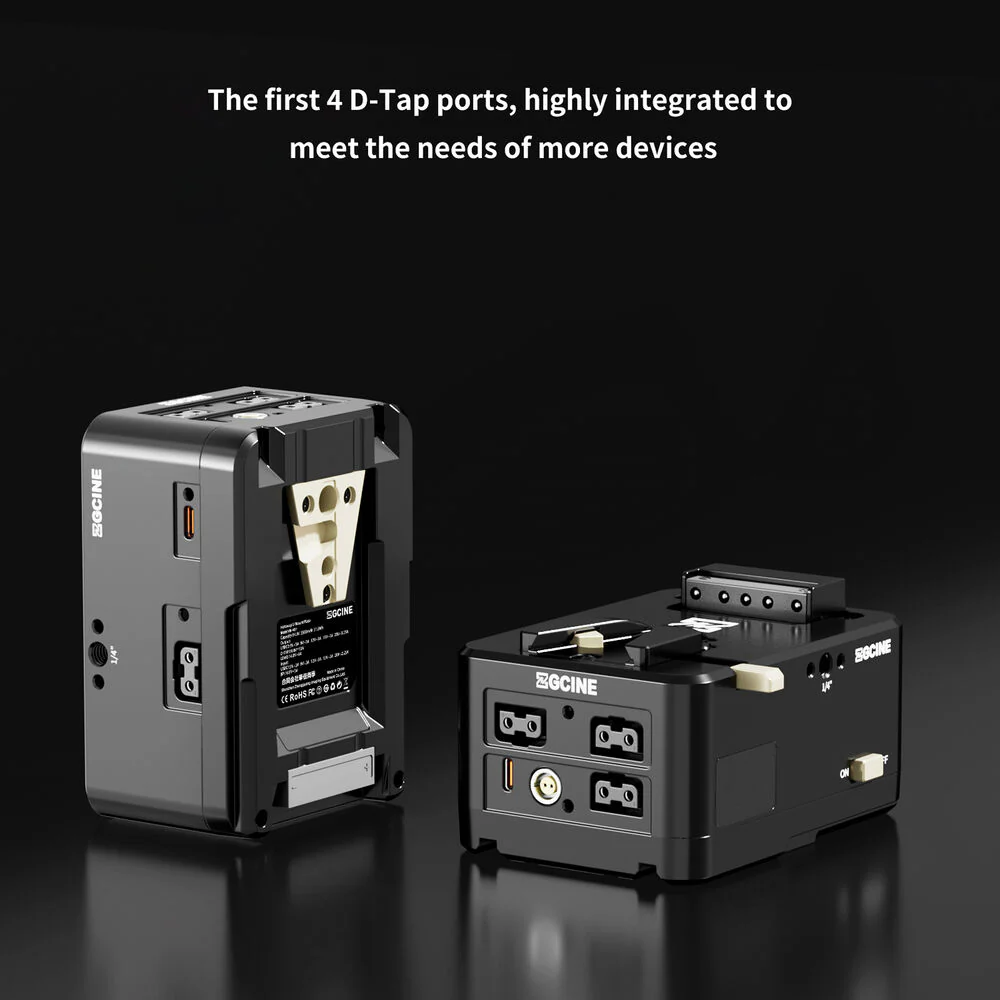

Outputs include one 2-Pin LEMO, one USB-C, and four D-Tap outputs that total up to 200W in total output to power your camera and accessories. There are multiple 1/4"-20 threads around the plate as well as a 15mm LWS rod block to mount the unit onto a camera rig. A smart color display on the side provides battery status information.
Items Included
- ZGCINE VM-HS1 Hot-Swap V-Mount Battery Plate (Black)
- USB-C Charging Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
ZGCINE VM-HS1 Specs
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
Solid
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
4 x 1/4"-20 Female Bottom
1 x 1/4"-20 Female Left 1 x 1/4"-20 Female Right 1 x 15 mm LWS Mount Bottom |
| Indicator |
LCD Display
|
| Inputs/Outputs |
4x D-Tap/P-Tap (14.8 VDC / 13 A) Output
1x USB-C (20 VDC / 3 A) Input 1x USB-C (20 VDC / 3.25 A) Output 1x LEMO 2-Pin (14.8 VDC / 6 A) Output |
| Dimensions |
4.4 x 3.5 x 2.5" / 112 x 90 x 64 mm
|
| Weight |
1.2 lb / 565 g
|
| Package Weight |
1.8 lb
|
| Box Dimensions (LxWxH) |
6 x 4.8 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
