YUAN SC720N4 HDMI 4-Channel 4K60 Capture Card
HomeStore

YUAN SC720N4 HDMI 4-Channel 4K60 Capture Card

YUAN SC720N4 HDMI 4-Channel 4K60 Capture Card

YUAN SC720N4 HDMI2.0 Overview

  • 1Description
  • 2Video Processing
  • 3Color Formats
  • 4Audio

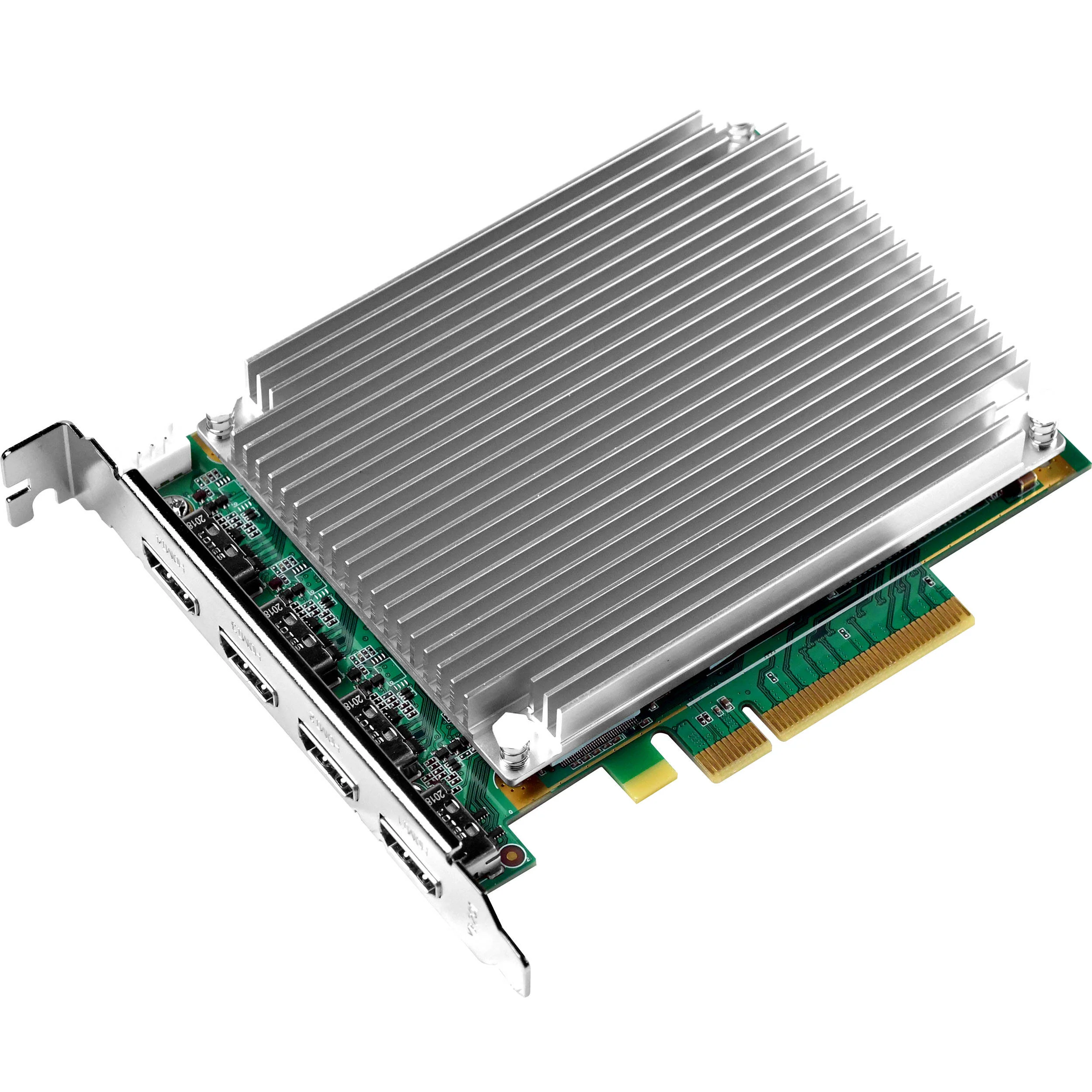

The SC720N4 HDMI 4-Channel 4K60 Capture Card from YUAN is a PCIe x8 Gen2 video capture card capable of ingesting up to four channels of simultaneous video and audio from HDMI sources. With this card installed in your Windows or Linux computer, you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, Skype, and most other platforms that support Windows DirectShow or Linux V4L2 drivers.

Each input supports up to DCI 4K (4096x2160) resolution at 60 fps. The card also supports high color depth at up to 4:4:4, 8-bit RGB32 and 4:2:0, 10-bit P010. This ensures that you are able to capture highly accurate reproduction of your video sources without quality loss.

Video Processing
  • Video cropping and scaling
  • Auto signal detection
  • Deinterlace engine
Color Formats
  • 4:4:4, 8-bit RGB24
  • 4:4:4, 8-bit RGB32
  • 4:2:2, 8-bit YUY2
  • 4:2:0, 8-bit YV12, NV12
  • 4:2:0, 10-bit P010
Audio
  • 4 x embedded stereo audio channels
  • Up to 16-bit/48 kHz
UPC: 653559999402
    Table of Contents
    • Description
    • Video Processing
    • Color Formats
    • Audio

    YUAN SC720N4 HDMI2.0 Specs

    System Connection PCIe 2.0 x8
    Video Inputs 4 x HDMI (HDMI 2.0)
    Audio Inputs None
    Input Video Format HDMI
    DCI 4K at 24/25/30/50/60 fps
    UHD 4K at 24/25/30/50/60 fps
    1440p at 144 fps
    1080p at 24/25/30/50/60/100/120/144/240 fps
    1080i at 50/60 fps
    720p at 50/60 fps
    SXVGA (1280 x 1024) at 60 fps
    SXGA- (1280 x 960) at 60 fps
    XGA (1024 x 768) at 60 fps
    SVGA (800 x 600) at 60 fps
    480p at 60 fps
    VGA (640 x 480) at 60 fps
    576p at 50 fps
    480i / 525 lines at 60 fps
    576i / 625 lines at 50 fps
    Embedded Audio HDMI
    Standards
    HDR Compatibility None
    Hardware
    OS Compatibility Windows 10
    Windows 8.1
    Windows 8
    Windows 7
    Linux 2.6.14 or Later (32/64-Bit)
    *As of August, 2022: Check with manufacturer for the most up-to-date compatibility
    General
    Dimensions 55.5 x 39.8" / 141 x 101 cm
    Packaging Info
    Package Weight 0.77 lb
    Box Dimensions (LxWxH) 9.8 x 5.8 x 1.7"

    YUAN SC720N4 HDMI2.0 Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $405.78

    Original: $1,352.60

    -70%
    YUAN SC720N4 HDMI 4-Channel 4K60 Capture Card—

    $1,352.60

    $405.78

    More Images

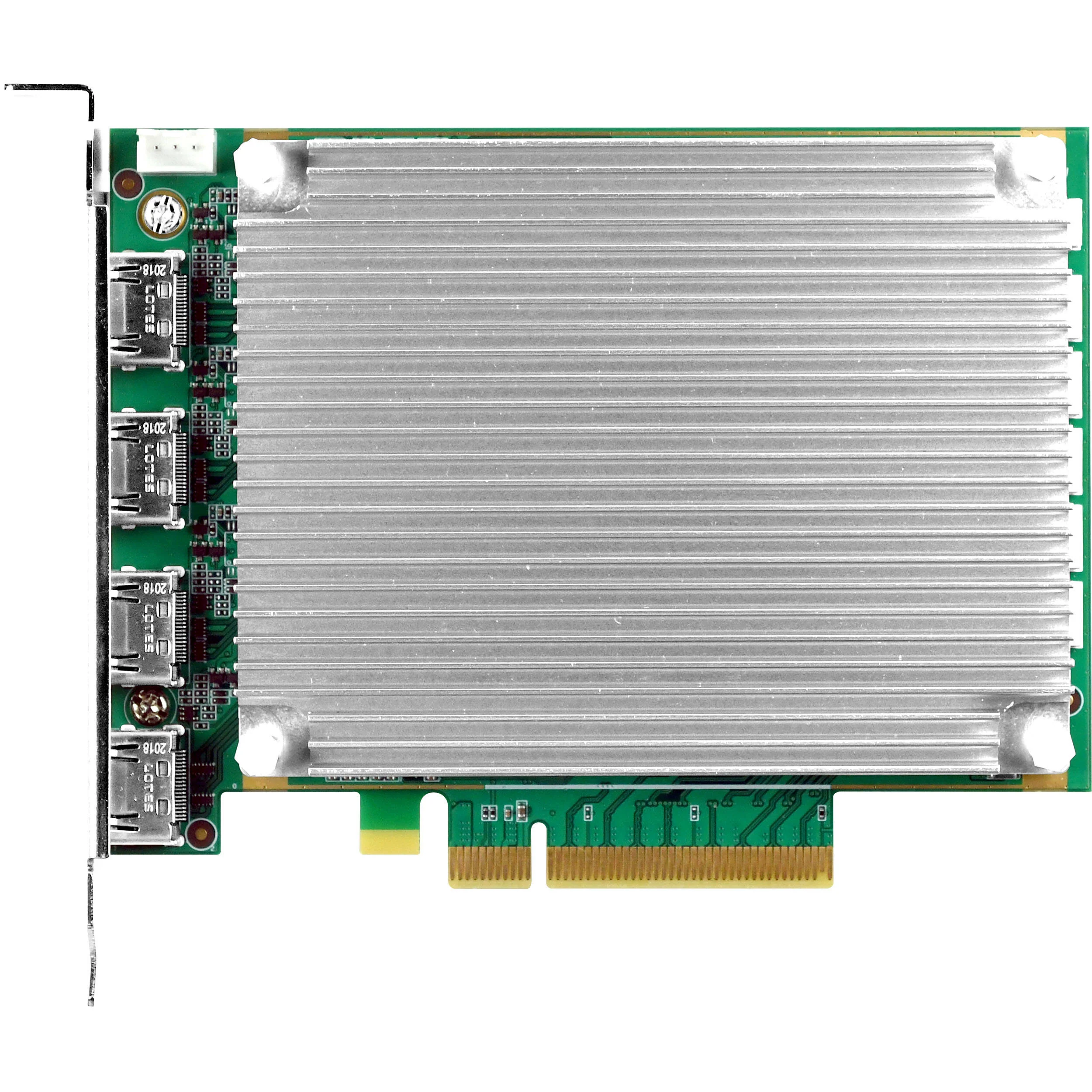

    YUAN SC720N4 HDMI 4-Channel 4K60 Capture Card - Image 2
