YoloLiv Instream Vertical Live Streaming Encoder and Monitor
HomeStore

YoloLiv Instream Vertical Live Streaming Encoder and Monitor

YoloLiv Instream Vertical Live Streaming Encoder and Monitor

YoloLiv Instream Overview

  • 1Description
  • 2Touchscreen Control
  • 3Streaming Platforms
  • 4Functions
  • 5Three Ways to Connect
  • 6Overlays
  • 7SD Card Input
  • 8Use Only as a Monitor & Recorder
  • 9Battery

Add multi-camera streaming to your Instagram, TikTok, and other livestream services with the YoloBox Instream Vertical Live Streaming Encoder and Monitor from YoloLiv. The Instream features native integration with Instagram and TikTok, and it is designed to allow you to use external cameras when streaming, which you cannot normally do when streaming from the Instagram app on your phone as the app doesn't allow it. However, the Instream allows you to select and switch between three external cameras while using the Instagram app.

In addition to multi-cam streaming over a variety of platforms, the Instream allows you to add graphic overlays, picture-in-picture, chroma key, and use transition effects when switching camera inputs. Stream at up to 1080p60 using the H.264 codec and record to an optional SD card. Featuring a 7" LCD touchscreen display, two HDMI and one USB-A input, and one HDMI output for viewing your stream on a local device. The Instream doesn't neglect audio as it has a line-level audio input as well as mic input and a headphone jack for direct audio monitoring.

Touchscreen Control
The Instream provides you with a touchscreen interface for easy streaming and control.
Streaming Platforms
Major streaming platforms such as Instagram & TikTok are directly integrated in the Instream device. You can simply login to your social account and stream. The Instream supports RTMP and RTMPS streaming for compatibility with many livestreaming services.
Functions
The Instream works as a switcher with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.
Three Ways to Connect
  • Wi-Fi
  • 4G LTE
  • Ethernet
Overlays
  • You can brand your livestream by adding logos/watermarks/rolling captions
  • Customized PiP options allow you to bring a unique look and feel to your stream
  • Engage with your audience in real time via feature comment overlays
  • Supports Chroma Keying
  • Built-in lower-thirds & animated countdown templates can be edited or you can add your own
SD Card Input
Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.
Use Only as a Monitor & Recorder
You can use the Instream, even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.
Battery
The 10,000mAh internal battery can power your Instream for approximately 3 hours. The Instream charges via the USB-C connection, which is used for power only.
UPC: 664918139100

In the Box

  • YoloLiv Instream Vertical Live Streaming Encoder and Monitor
  • 2 x USB Type-C Cable
  • Shoe Mount
  • SIM Card Eject Pin
    Table of Contents
    • Description
    • Touchscreen Control
    • Streaming Platforms
    • Functions
    • Three Ways to Connect
    • Overlays
    • SD Card Input
    • Use Only as a Monitor & Recorder
    • Battery

    YoloLiv Instream Specs

    IP Encoding/Decoding
    IP Video H.264:
    720 x 480 to 1920 x 1080 Encoding
    IP Audio AAC-LC: Encoding
    Transport Protocols RTMP, RTMPS
    Simultaneous Streams 1 Streams
    Compatible Services Instagram, TikToK
    Wireless
    Wi-Fi Yes
    Bluetooth None
    Cellular
    SIM Card Slots 1 x Nano SIM
    Interfaces

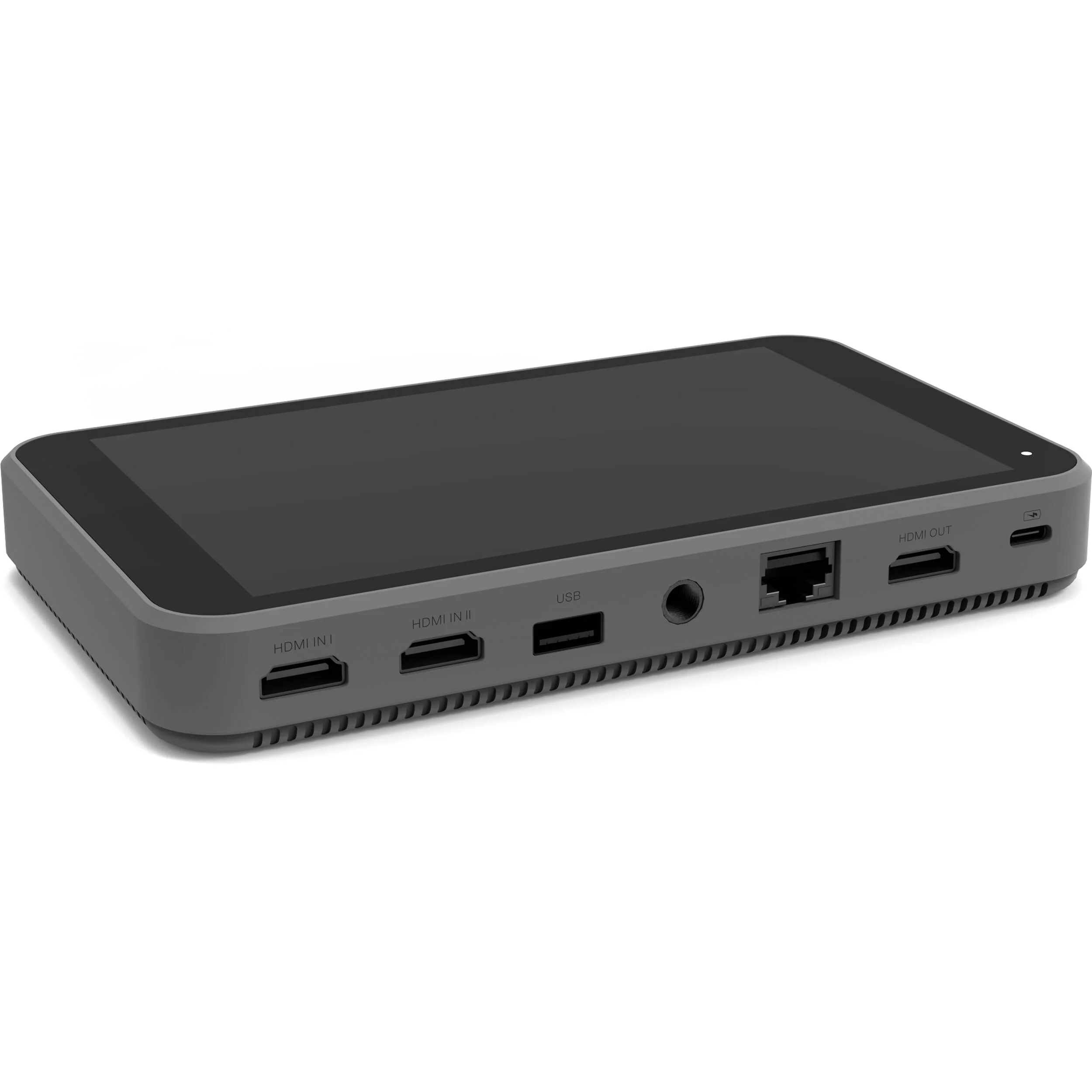

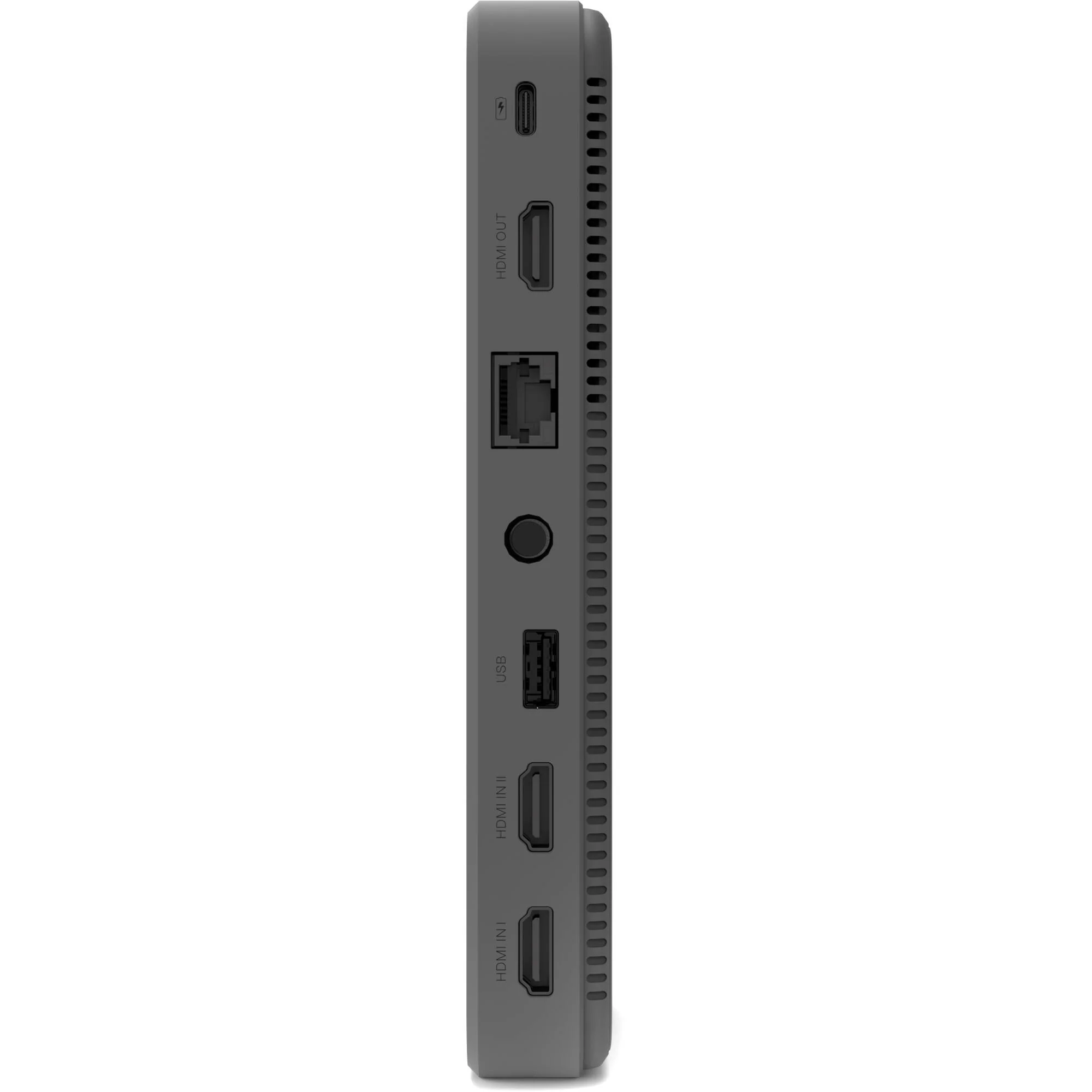

    Video I/O 2 x HDMI Input
    1 x HDMI Output
    Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Analog Input
    1 x 1/8" / 3.5 mm TRS Mono Analog Input
    1 x 1/8" / 3.5 mm TRS Stereo Analog Output
    Other I/O 1 x RJ45 (10/100 Ethernet) Input/Output
    1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input
    Embedded Audio HDMI: 2-Channel
    Internal Recording
    Recording Media 1 x SD (Unspecified Type)
    Recording Modes 1920 x 1080p up to 60 fps
    Power
    Built-In Battery 10,000 mAh
    Power Connector 1 x USB-C (5 to 12 VDC at 1.5 A) Input
    Environmental
    Operating Temperature 14 to 104°F / -10 to 40°C
    Storage Temperature 41 to 104°F / 5 to 40°C
    General
    Display LCD
    Dimensions 7.4 x 4.4 x 1" / 188 x 112.5 x 25 mm
    Weight 21.2 oz / 600 g
    Packaging Info
    Package Weight 2.64 lb
    Box Dimensions (LxWxH) 10.5 x 6.7 x 3.2"

    YoloLiv Instream Reviews

    Software bugs

    By Tech De
    Rated 2 out of 5
    Date: 2023-01-31

    Cropped Image in Zoom Sound cuts out on recording Unable to adjust right or left verical image Image not fluid in hdmi out You have to wait for a software update


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $1,335.77
