X-keys USB General Purpose Input Output Module
X-keys XK-1502-UHIO14-R Overview

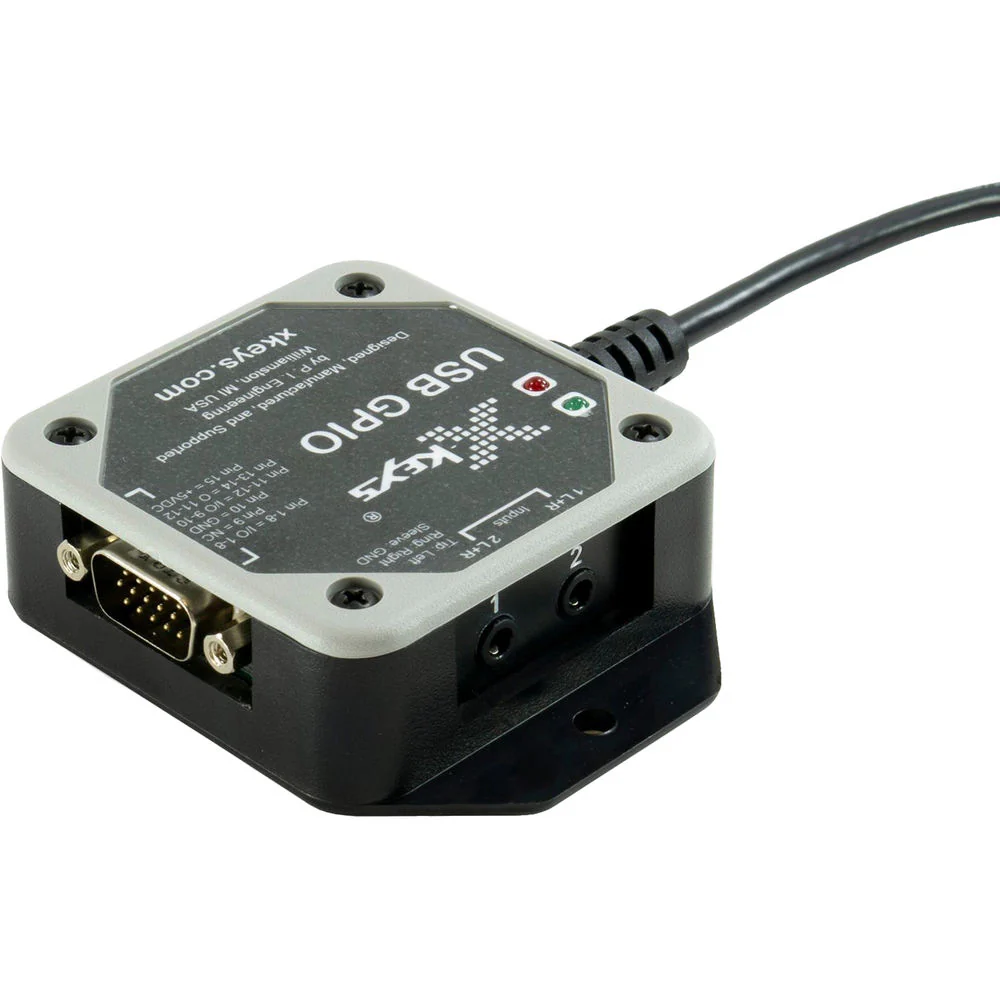

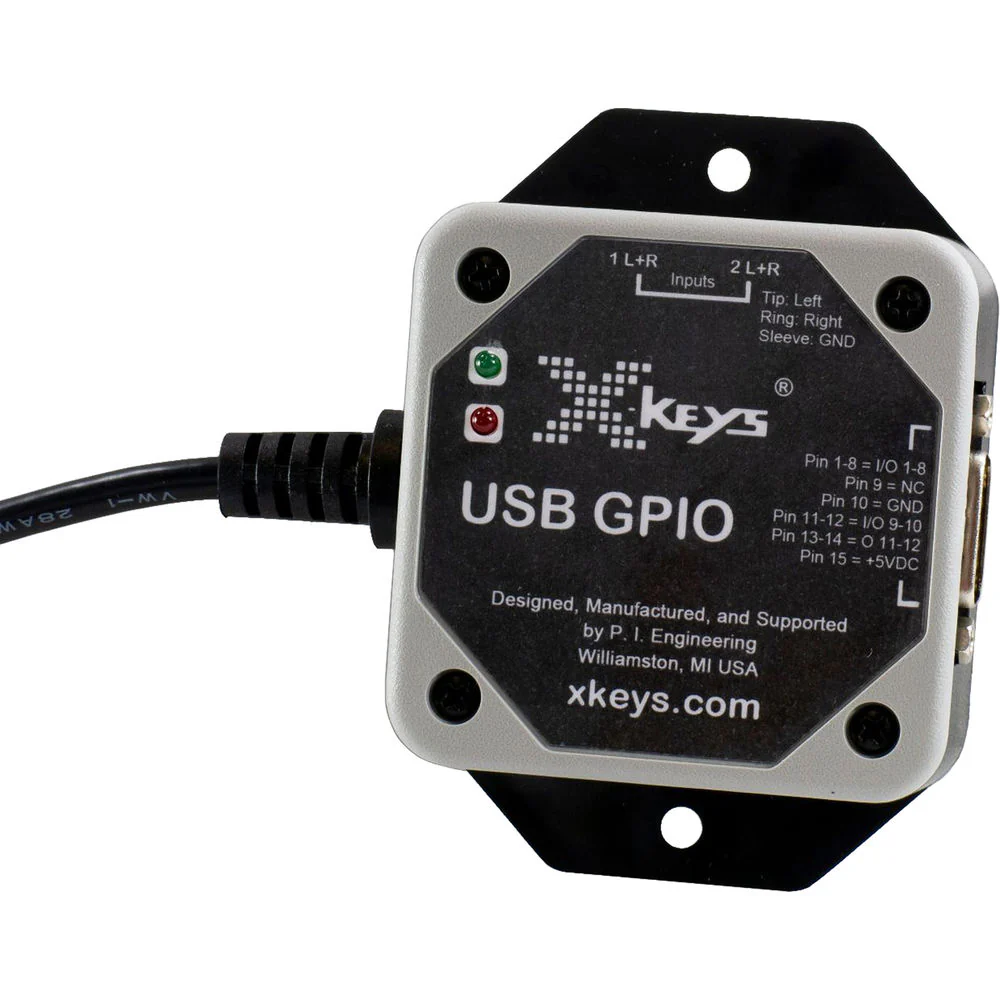

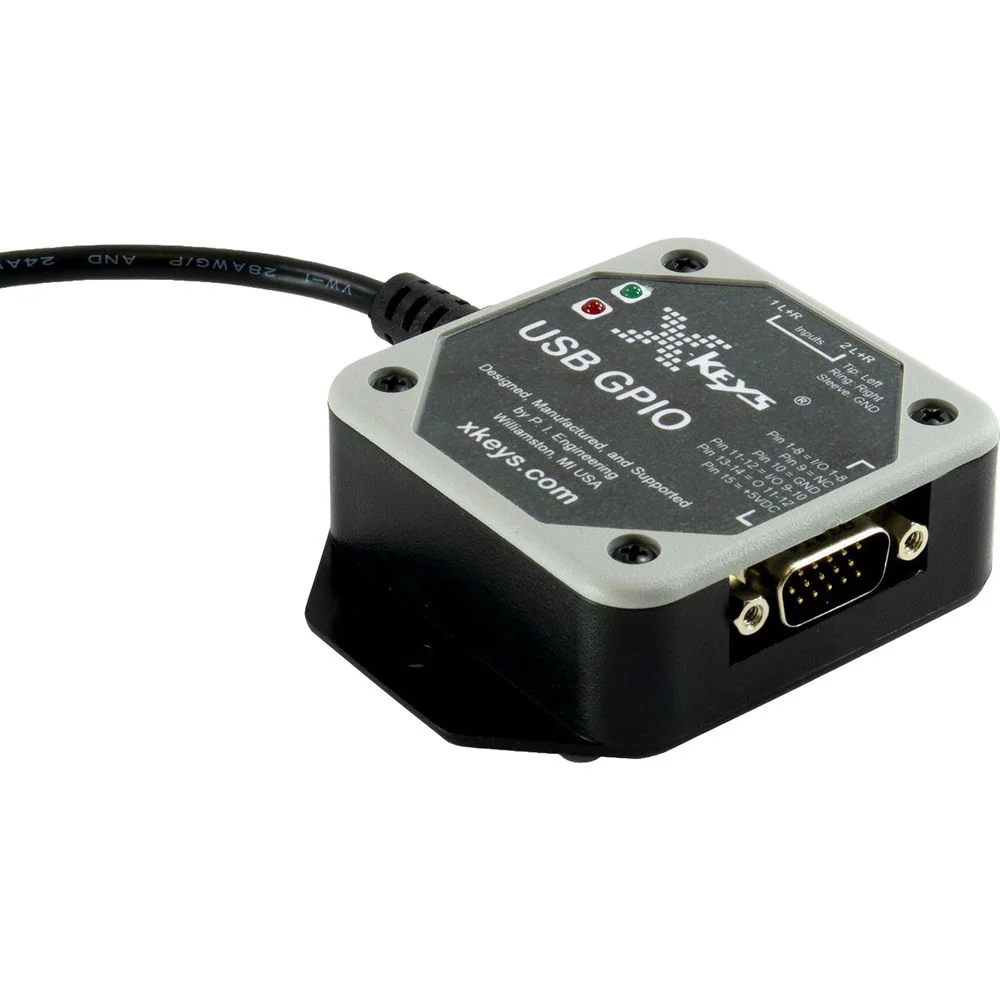

Turn hardware switches into keyboard inputs or macro commands with the USB General Purpose Input Output Module from X-keys. Sporting two 3.5mm TRS ports and a 15-pin D-Sub port, this module provides four dedicated short-to-ground inputs and two dedicated 5V outputs. Furthermore, ten pins on the D-Sub port can be configured as 5V pull-down or short-to-ground inputs, or 5V outputs. Internal memory allows for OS independent support via hardware and resident macros. Connecting to a host via an integrated USB cable, this general purpose input output (GPIO) module is compatible with Windows, Linux, and Android using free software developer kits (SDKs).
X-keys XK-1502-UHIO14-R Specs
| Inputs and Outputs | 2 x Dedicated Outputs 4 x Dedicated Inputs 10 x Configurable Input/Output Pins |
| Connectors | 2 x 3.5 mm TRS Ports 1 x 15-Pin D-Sub Port |
| Host Connection | USB |
| Package Weight | 0.545 lb |
| Box Dimensions (LxWxH) | 7.3 x 6.4 x 1.8" |
X-keys XK-1502-UHIO14-R Reviews
GPIO deviced that works great with vMix
We needed a simple way to convert a contact closure relay to work with the software application vMix. Works as advertised.
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $174.97
-70%$174.97
$52.49More Images
