Wooden Camera D-Box + B-Box System Bundle (V-Mount)

Wooden Camera D-Box + B-Box System Bundle (V-Mount)

Wooden Camera A00600 Overview

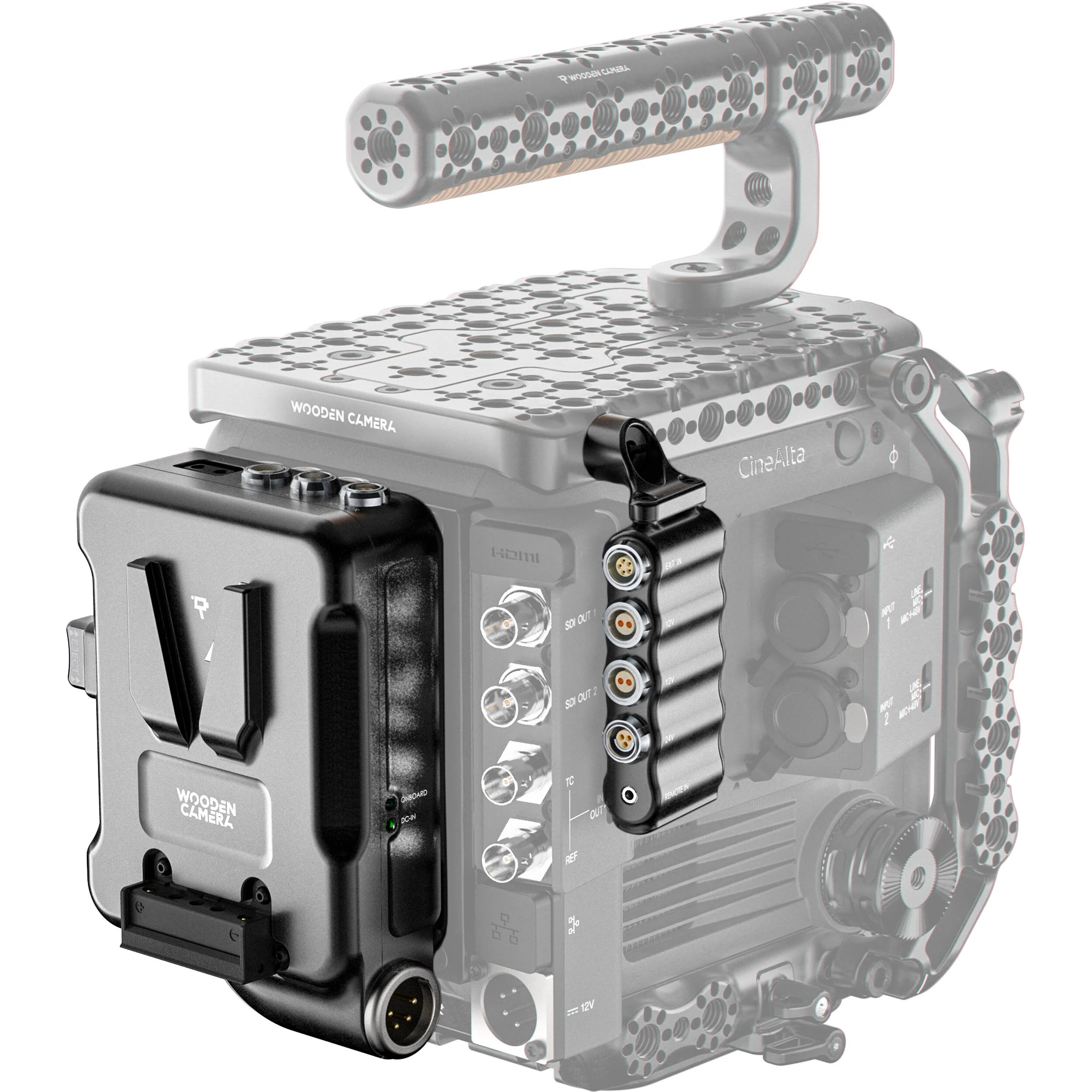

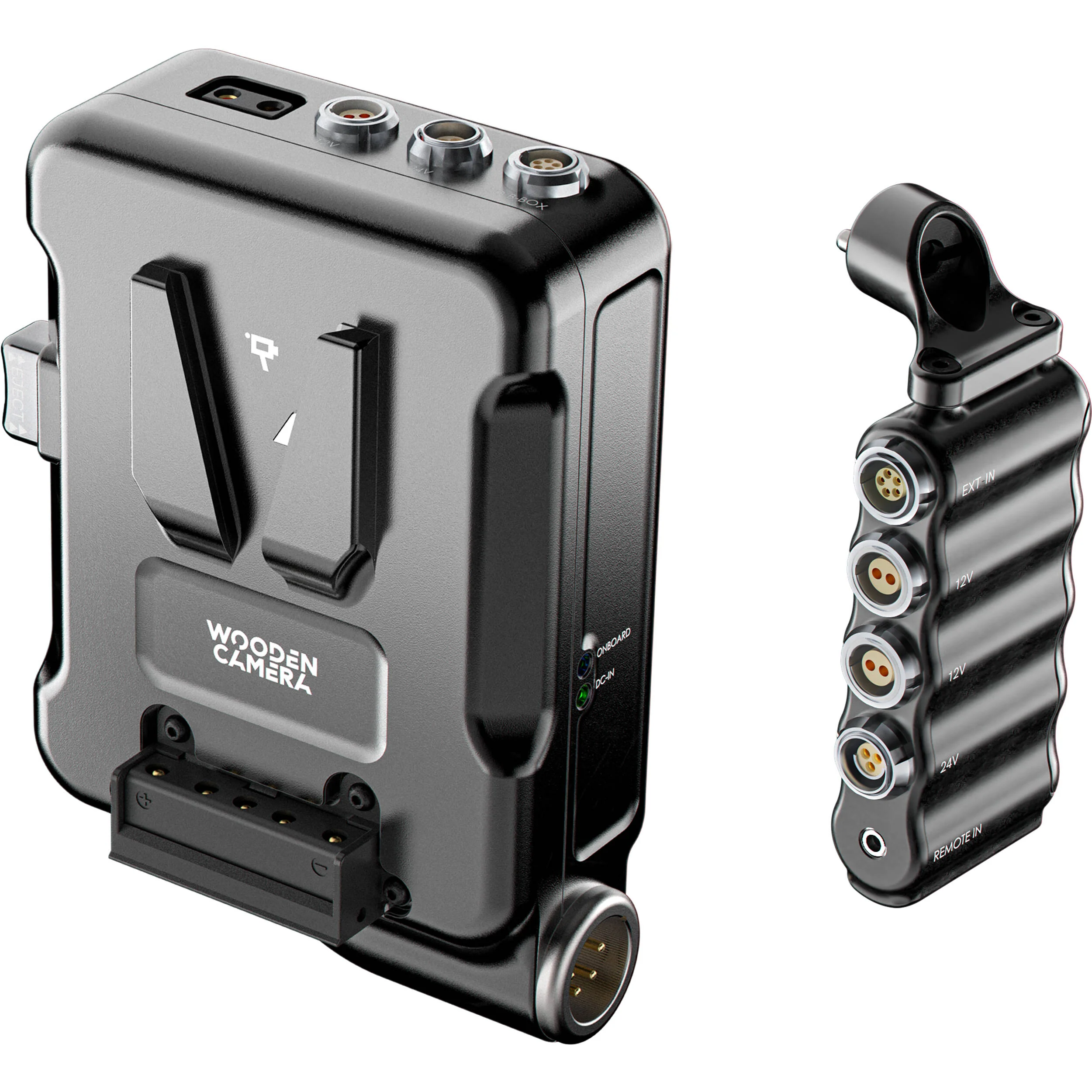

Extend the power output options of your Sony BURANO cinema camera with this D-Box + B-Box System Bundle from Wooden Camera. The bundle includes the D-Box power distribution unit with a V-mount battery plate and the B-Box power extension unit. A remote cable and a link cable are included with the B-Box.

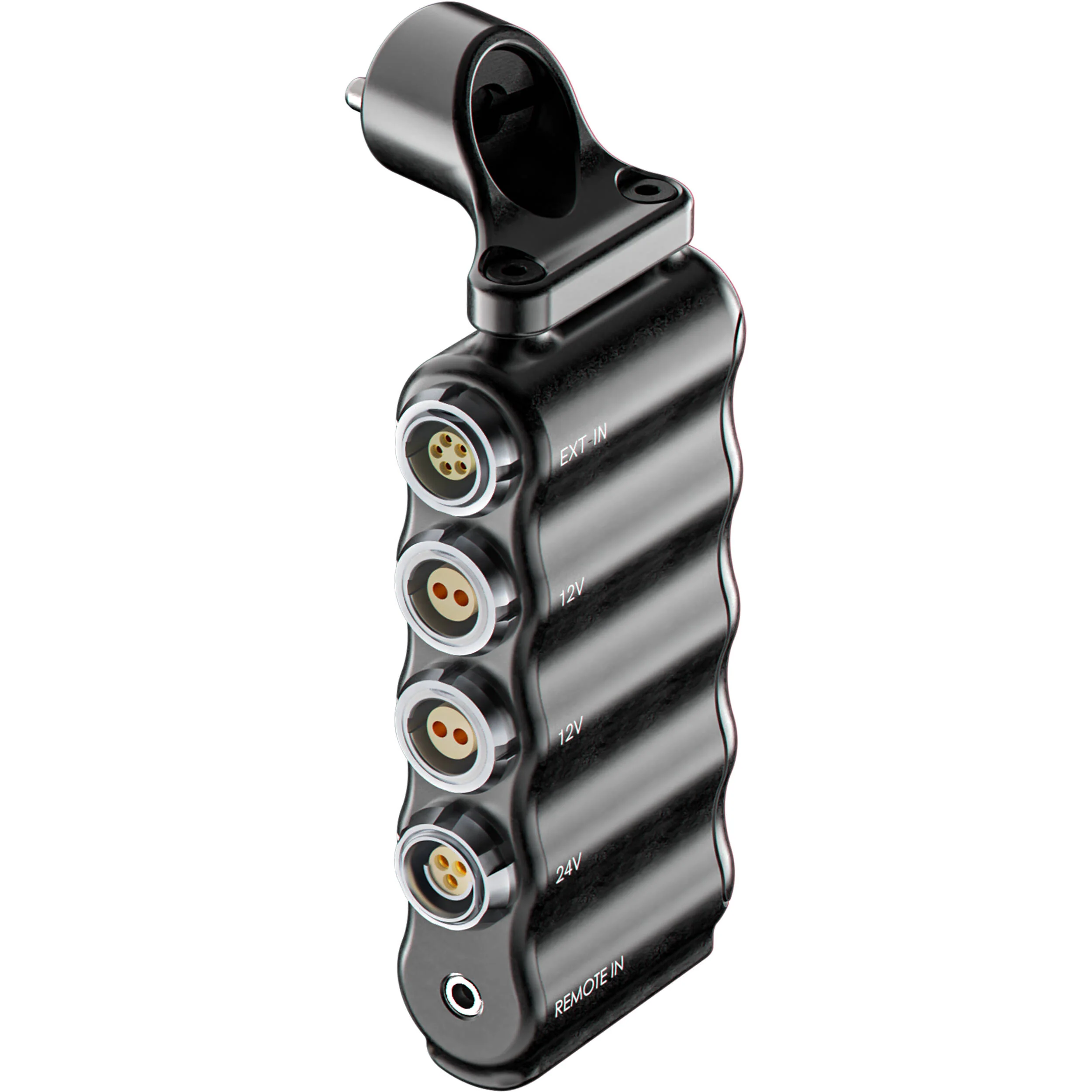

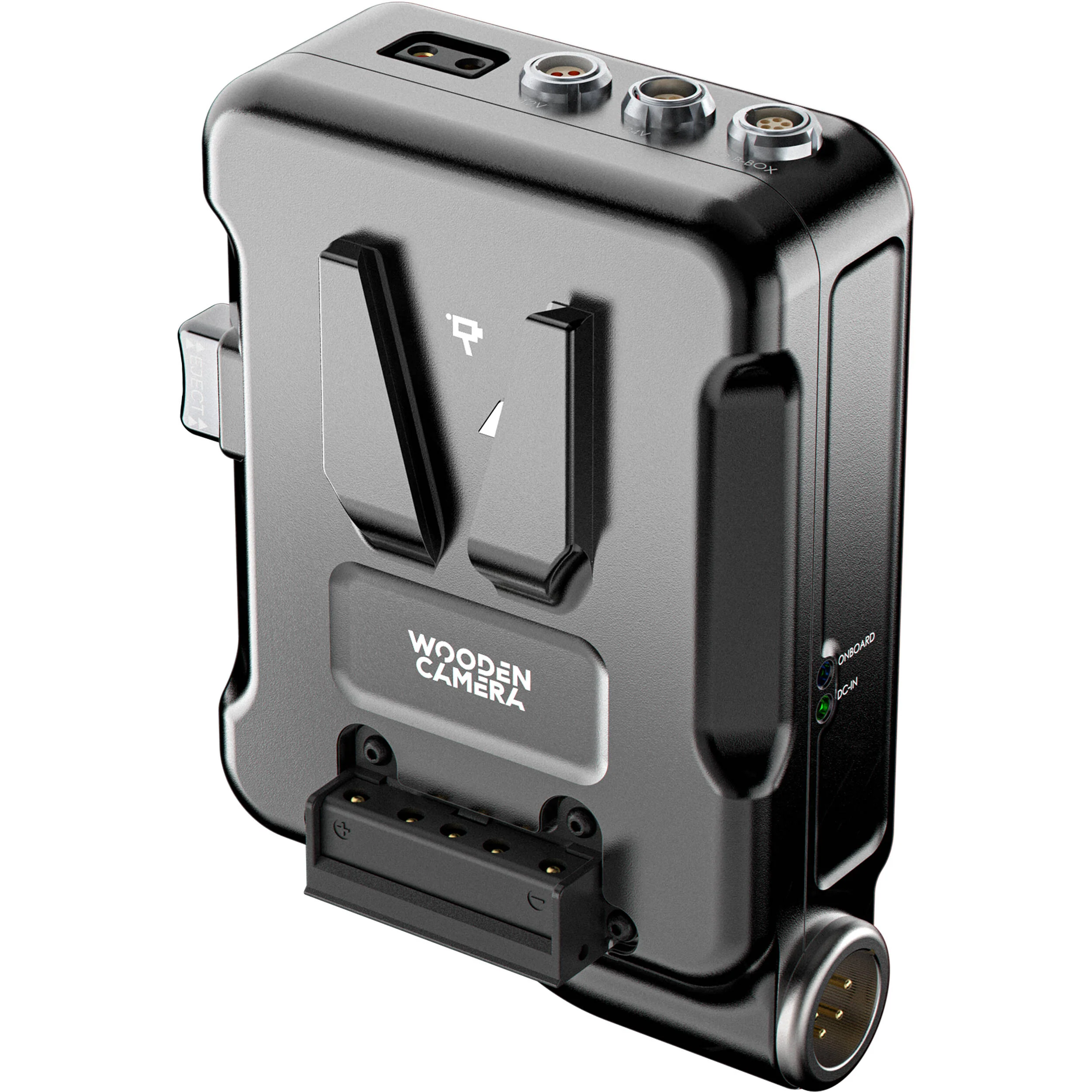

The D-Box provides 12V 2-pin, D-Tap, and 24V 3-pin ports to output power for the camera and accessories from a V-mount battery, and it supports hot swapping when using the DC input. The B-Box connects to the D-Box with the link cable and adds two 12V 2-pin ports and a 24V 3-pin port that can be used with run/stop communication using the included remote cable. The B-Box mounts onto an optional top plate using the included side mount.

Features
The V-mount box provides power distribution for the Sony Burano cinema camera
Simultaneously active output for D-Tap and LEMO ports
Expands selection of accessory ports, and enables connection of an on/off trigger, AC power supply, etc.
Tool-free installation and cable-free interface
When used with an AC power supply, the box maintains power to the camera and accessories while changing the camera battery
Compatible with the B-Box expander module
UPC: 655466635220

In the Box

  • Wooden Camera D-Box for Sony Burano Camera (V-Mount)
    • Limited 1-Year Manufacturer Warranty
  • Wooden Camera B-Box System for Sony BURANO
    • Wooden Camera B-Box for Sony BURANO
    • Wooden Camera B-Box Bolt-On Mount for Sony BURANO
    • Wooden Camera Remote Cable for Sony BURANO B-Box
    • Wooden Camera B-Box Link Cable for Sony VENICE, VENICE 2, and BURANO

Additional Resources

No additional resources available

Wooden Camera A00600Specs

Key Specs
Power Output
D-Tap: VDC
LEMO 2-Pin: 12 VDC
LEMO 3-Pin: 24 VDC
Camera Power Method
Battery Plate Mount Type, Connector
Plate Front / Battery Mount
V-Mount
Hot-Swap Support
Yes
Power
Power Input
Mini 4-Pin XLR: VDC
Power Output
D-Tap: VDC
LEMO 2-Pin: 12 VDC
LEMO 3-Pin: 24 VDC
General
Camera Power Method
Battery Plate Mount Type, Connector
Inputs/Outputs
1x D-Tap
1x LEMO 2-Pin
1x LEMO 3-Pin
1x Mini XLR 4-Pin Male
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
V-Mount Battery Plate
Number of Battery Bays
1
Hot-Swap Support
Yes
Dimensions
53.1 x 37.8 x 18.5" / 135 x 96 x 47 cm
Weight
0.9 lb / 400.5 g
Packaging Info
Package Weight
1.245 lb
Box Dimensions (LxWxH)
6.9 x 4.45 x 3.3"
