Wohler eVAM1-1 16-Channel Audio and Video Monitor
Wohler EVAM1-1 Overview

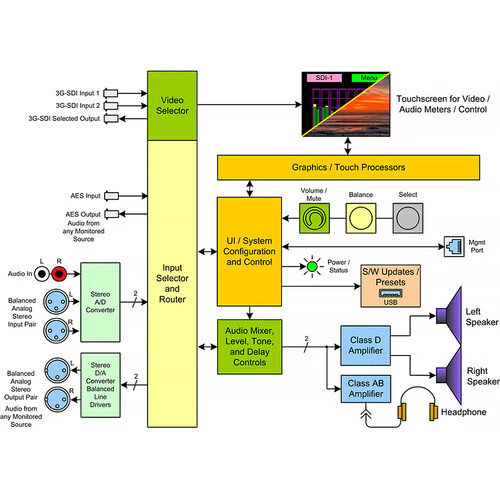

Designed for A/V techs on a budget, the Wohler eVAM1-1 is a well featured and easy-to-use 16-channel video and audio monitor with two 3G-SDI inputs and one 3G-SDI output plus a pair of AES inputs and outputs and a pair of balanced XLR inputs and outputs. Additionally, the device offers a pair of unbalanced RCA inputs for added flexibility.
With touchscreen operation included as well as 8 presets, the eVAM1-1 is a great solution for any application that requires a compact product for monitoring of baseband signals.
Key Features
- Video and audio monitoring (up to 16 channels) from multiple sources
- Two 3G-SDI inputs on BNCs with selected output on BNC, 1 pair AES3 in/out on BNC, 1 pair balanced analog I/O on XLR + 1 pair unbalanced analog inputs on RCA
- Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute, or solo
- Monitor through built-in speakers, headphones, or analog outputs with optional muting for internal speakers
- 8 presets
- Stereo phase indicators
- Adjustable volume and balance
- Automatic frame rate detection and selection
- Selectable line level or front-panel volume control and outputs
- Shallow chassis depth for easy installation in OB vehicles and consoles
- Software upgradeable via USB or network
- Remote GUI for preset creation and web meters
- APIs for remote management
Items Included
- Wohler eVAM1-1 16-Channel Audio and Video Monitor
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wohler EVAM1-1 Specs
General
| Compatibility |
Not Specified by Manufacturer
|
| Specifications |
Analog Input Impedance: 40 Kilohms Balanced
Analog Outputs: Stereo XLR-3 Male, Balanced +28 dBu Max Analog Output Frequency Response: 40 Hz to 20 kHz (± 1 dB) Analog Output Distortion: <0.02% THD+N Analog Output Dynamic Range: >100 dB Analog Output Reference Level: -20 dBFS = +4 ± 1.0 dBu Internal Speakers: Stereo 2.8" / 70 mm Full Range Peak Acoustic Output: 90 dB SPL (at 2') Hum and Noise: Better than -68 dB Below Full Output Power Output: 5 W RMS, 12 W Peak (Each Side) Acoustic Frequency Response: 150 Hz to 16 kHz (± 5 dB) Headphone Out: Stereo 40 Hz to 20 kHz (± 1 dB) Headphone Load: 8 to 150 Ohms |
Display
| Panel Type |
LCD
|
| Display Size |
2.4"
|
| Native Resolution |
320 x 240
|
| Touchscreen |
Yes
|
| Viewing Angle (H x V) |
160 x 160°
|
Inputs/Outputs
| USB I/O |
1 x USB-A 2.0 Female Input/Output
|
| Video I/O |
2x BNC (SD-SDI) Input
1x BNC (SD-SDI) Output |
| Audio I/O |
1x BNC 2-Pin AES3 Input
1x BNC 2-Pin AES3 Output 2x XLR 3-Pin Line Input 1x 2RCA TS Line Input 2x XLR 3-Pin Line Output 1x 1/4" TRS Headphone Output |
Power
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
65 W
|
Physical
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
19 x 5.5 x 1.75" / 48.3 x 14 x 4.45 cm
|
| Weight |
5.5 lb / 2.5 kg
|
Packaging Info
| Package Weight |
5.01 lb
|
| Box Dimensions (LxWxH) |
22 x 13.2 x 5.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$1,055.23
Original: $3,517.45
-70%Wohler eVAM1-1 16-Channel Audio and Video Monitor—
$3,517.45
$1,055.23More Images
