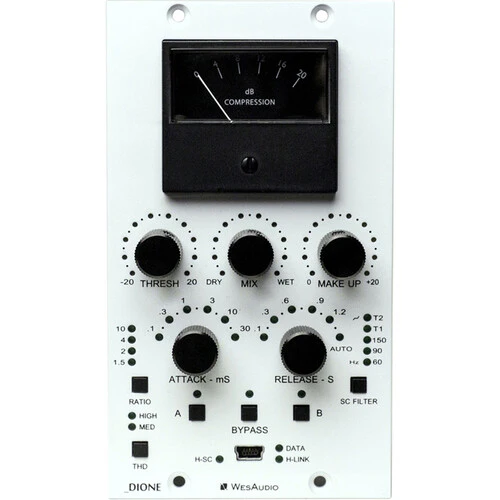

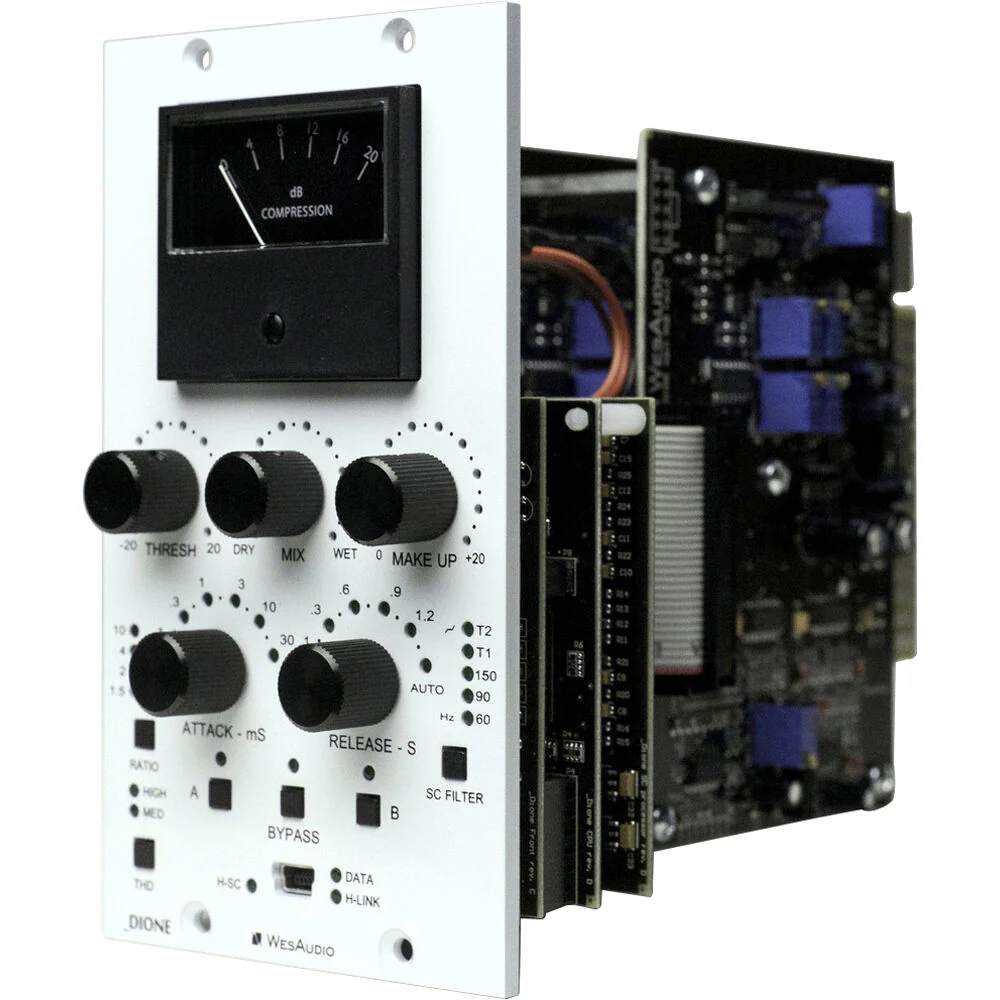

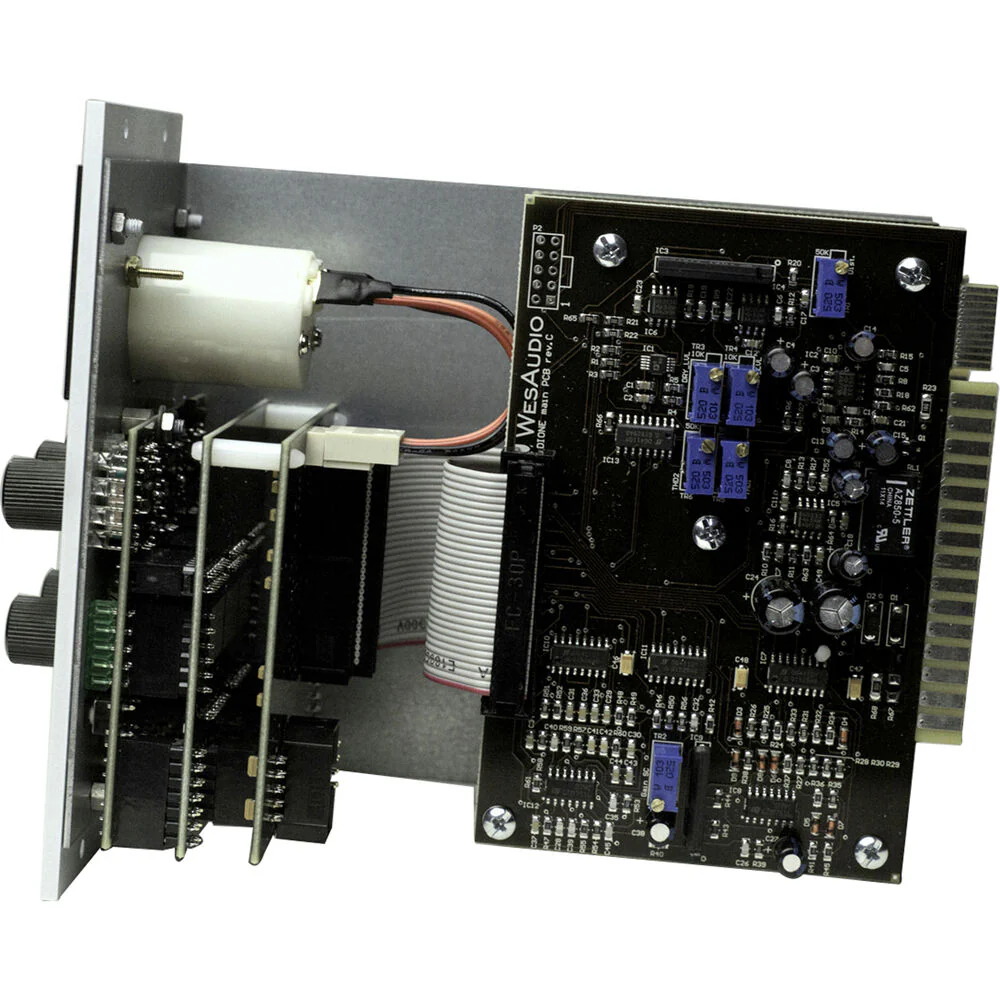

WesAudio _DIONE 500 Series Stereo Bus Compressor with Digital Recall
WesAudio DIONE Overview
- 1Description
- 2New Implementation of a Legend
- 3THAT 2181 VCAs
- 4Mix Knob for Parallel Compression
- 5THD
- 6Sidechain Filters
- 7Four Ratio Settings
- 8500 Series Compatible
- 9ng500 Series
- 10Hardware A/B
- 11Total Recall and Plug-In Control
- 12Analog Automation
- 13Additional Features
Merging the best of analog and digital worlds, the WesAudio _DIONE 500 series stereo bus compressor offers legendary mix bus glue and the powerful luxury of digital total recall. On the analog side, it provides high headroom of +24 dBu, THAT 2181 VCAs, variable parallel compression, and selectable THD coloration intensity for big tone that'll help you get pro impact in your mixes. Plus, there's true bypass and hardware A/B switching, so you can easily compare dry versus compressed or two different configurations of settings.
When it comes to the digital integration, _DIONE is high-tech with USB connectivity and plug-in control. It has three touch-sensitive encoders that not only adjust the settings of the analog circuitry, but also allow you to write real-time automation from _DIONE to your DAW. Alternatively, you can draw automation in the DAW and _DIONE will react accordingly. You can even send a DAW track to the sidechain of _DIONE over the USB connection; analog compression digitally sidechained from your DAW. The sidechain also has five different filter settings for full control over the trigger signal.
New Implementation of a Legend
The legendary sound of "the" stereo bus compressor has been a true companion on countless recordings for 40 years. Often recognized as "mix bus glue," this particular compression sound has become industry standard in the analog and DAW worlds. WesAudio's _DIONE implements legendary VCA compression into a 500 Series module and brings with it one of the most demanded features in the audio industry�digital recall.
THAT 2181 VCAs
_DIONE is a 100% analog device with +24 dBu headroom. Regardless of its digital control nature, the fully analog signal path provides top-tier VCA compression. It contains two THAT 2181 VCAs in the signal chain and two more in the sidechain detector.
Mix Knob for Parallel Compression
The inclusion of a dedicated mix knob allows _DIONE to perform parallel compression at the twist of a dial.
THD
THD stands for "total harmonic distortion" and it allows you to saturate your signal with beautiful analog color with two different intensity levels. Choose "Mid" for 1% THD or "High" for 3% THD.
Sidechain Filters
_DIONE's sidechain filter functionality allows you to modify signal going into the compressor's detector. It includes three high-pass filters at 60, 90, and 150 Hz, and two tilt filters, which are special "curve" filters.
Four Ratio Settings
_DIONE provides selectable ratios of 1.5:1 and 2:1 for gentle mix bus processing, and 4:1 and 10:1 for more aggressive compression.
500 Series Compatible
Regardless its extensions, _DIONE is fully compatible with the 500 series standard. Digital features can be enabled through the mini-USB socket on the front panel.
ng500 Series
Each WesAudio device in ng500 (Next Generation 500 series) product line is equipped with a special connector. This connector is an extension to the 500 series, and allows your device to be managed/recalled through specialized GCon protocol (e.g. _TITAN 500 series 10-slot frame). This extension is compatible with the 500 series standardized plug type; however, some manufacturers apply enormous screws to the plug itself, which prevent the device from fitting in. Based on official research, more than 90% of available 500 series racks will fit just fine. Currently known exceptions include:
- Rupert Neve Designs 500 series Racks (R6 & R10)
- Aphex 500 series rack
- Some older BAE racks (not produced anymore)
- Midas L6 (module won�t fit to the very end on slots 3 and 6)
- Midas L10 (module won�t fit to the very end on slots 4 and 8)
Hardware A/B
Even using _DIONE as a pure analog signal processor, you can easily switch between two parallel settings with the magic of simple A/B buttons.
Total Recall and Plug-In Control
Along with classic analog compression, you receive one of the most demanded features in the audio industry�total recall. Plus, full plug-in control (VST2, VST3, AU, AAX, and AAX DSP) makes _DIONE compatible with most, if not all, major DAWs. This total integration with your beloved DAW will change your workflow forever.
Analog Automation
It's very common to want different device settings based on song sections. Now it is possible; just draw automation lines in your DAW and the _DIONE analog device will follow. And remember, you can use four touch-sensitive encoders to record automation to your DAW.
Additional Features
- Fully digitally controlled analog circuit
- +24 dBu of headroom
- Digital recall can be achieved by connecting directly through the mini-USB socket on the front panel, or using it inside a _TITAN chassis
- Dedicated stereo plug-in
- Digital sidechain makes it possible to send any track from your DAW as a sidechain signal to the compressor
- Three touch-sensitive encoders, perfect for recording automation of all parameters to your DAW in real time
- True bypass
- Accurate analog gain reduction meter and its precise simulation implemented in the plug-in
- Free software and firmware upgrades
In the Box
- WesAudio _DIONE 500 Series Stereo Bus Compressor with Digital Recall
- Limited 2-Year Warranty
Not in the Box
- Essential Additional Hardware (Not Included)
Table of Contents
- Description
- New Implementation of a Legend
- THAT 2181 VCAs
- Mix Knob for Parallel Compression
- THD
- Sidechain Filters
- Four Ratio Settings
- 500 Series Compatible
- ng500 Series
- Hardware A/B
- Total Recall and Plug-In Control
- Analog Automation
- Additional Features
WesAudio DIONE Specs
| Function | Compressor |
| Number of Channels | 2 |
| Inputs | 2 x Balanced Line Input via 500 Series Multipin Connector |
| Outputs | 2 x Balanced Line Output via 500 Series Multipin Connector |
| USB | 1 x Mini-USB Port (Front Panel) |
| Plug-In Formats | VST2, VST3, AU, AAX, and AAX DSP |
| Input Impedance | 10 Kilohms |
| Output Impedance | <100 Ohms |
| Maximum Gain | 21 dB |
| Compression Ratio | 1.5:1, 2:1, 4:1, or 10:1 |
| Attack Time | 0.1, 0.3, 1, 3, 10, or 30 ms |
| Release Time | 0.1, 0.3, 0.6, 0.9, or 1.2 Seconds, or Auto Mode |
| Sidechain Filter | 60, 90, or 150 Hz, or T1 / T2 |
| Frequency Response | 20 Hz to 20 kHz (0.1 dB) |
| Headroom | +24 dBu |
| THD | Mid Switch: 1% High Switch: 3% |
| THD + N | Wet: 0.008% (1 kHz, 0 dBu) Dry: 0.004% (1 kHz, 0 dBu) |
| Crosstalk | < -90 dB |
| Power Consumption | 70 mA / +16 V and 50 mA / -16 V (per Slot) |
| Dimensions | 3.0 x 5.2 x 6.2" / 7.6 x 13.3 x 15.8 cm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 1.66 lb |
| Box Dimensions (LxWxH) | 8.2 x 6.3 x 4.4" |
