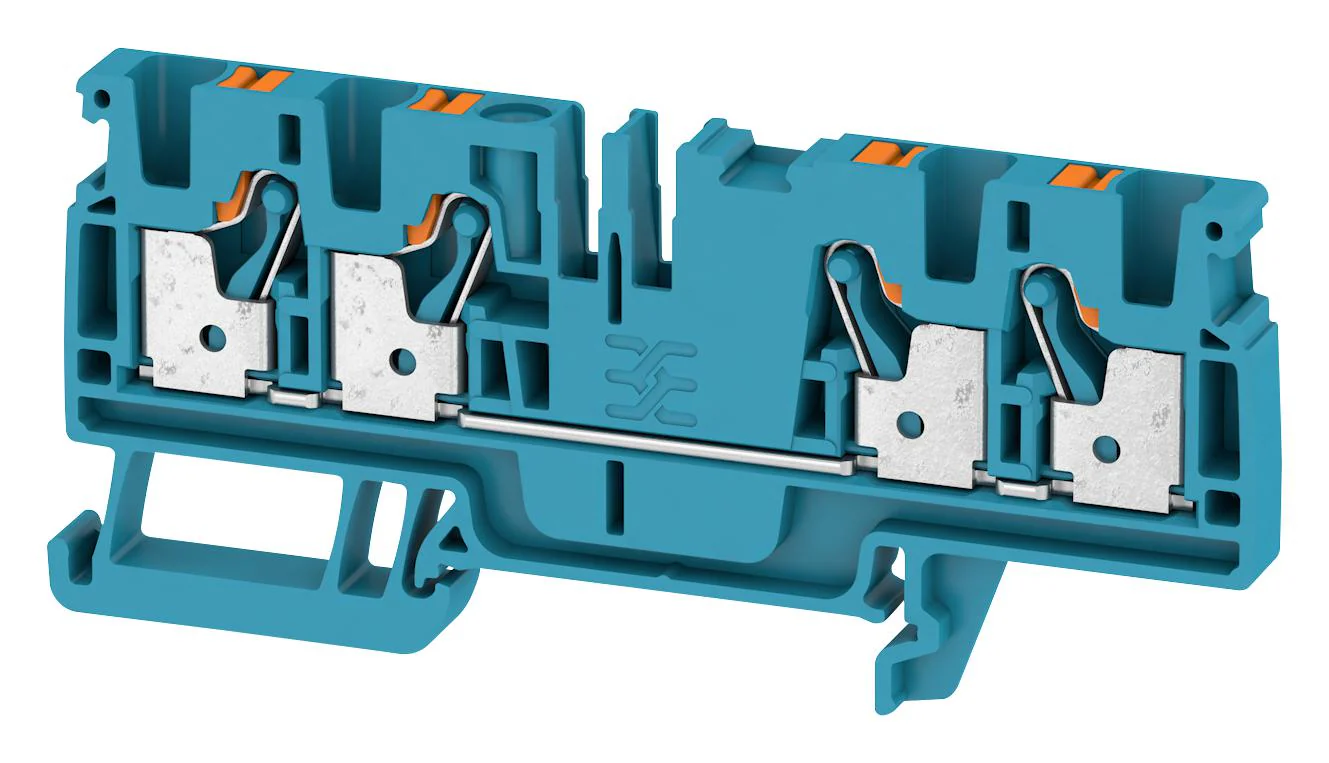

Weidmuller 2051520000 DIN Rail Mount Terminal Block 4 Ways 26 AWG 12 mm² Push In 32 A

The 2051520000 from Weidmuller is a blue colour feed-through terminal. It is made of wemid material. This terminal block has one potential, one level, two clamping points per level and one potential per tier. The wire connection cross section ranges from 26AWG to 12AWG.

• PUSH IN technology
• Dimension is 6.1mm x 87.5mm x 39.5mm (W x H x D)
• Net weight of 15.06g
• Continuous operating temperature range from -50°C to 130°C
• Flammability rating meets UL94-V0
• TS 35 mounting rail
• Clamping range, rated connection range from 0.5mm² to 4mm²
• Rated voltage of 800V and rated current of 32A, rated impulse withstand voltage is 8KV
• In accordance with IEC 60947-7-1 standard, pollution severity 3

Applications

Industrial

Other details

Brand	WEIDMULLER
Part Number	2051520000
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
