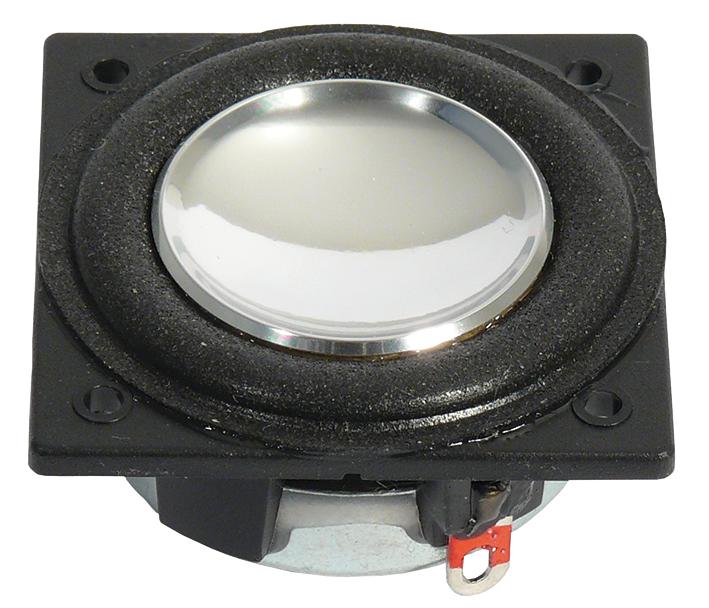

Visaton BF32-8OHM BF32-8OHM 1.3" Full Range Mini Speaker 2W RMS 8 Ohm

3.2cm (1.3") Full range speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver. Suitable for applications where slim construction and good music and speech reproduction are requested. Square basket with four mounting holes for easy mounting.

• Typical applications
• Flat screens (TV and PC)
• Info terminals
• Other compact devices speech and music reproduction
• Power rating: 2W (5W Max.)
• Frequency range: 150Hz - 20kHz
• Impedance: 8R
• SPL (@ 1W/1m): 78dB
• Resonant frequency: 220Hz
• Cut-out: 31.5mm

• Fixing centres: 24.5mm
• Dimensions (WxHxD): 32x32x11mm
• Weight: 28g

Product details

Driver Type	Miniature
External Diameter - Metric	-
External Width - Metric	32mm
Impedance	8ohm
Power Rating Nom	2W
Sound Level SPL	78dBA
External Diameter - Imperial	-
External Width - Imperial	1.26"
Frequency Response Min	150Hz
Frequency Response Max	20kHz
Speaker Shape	Round with Square Frame
Resonant Frequency	220Hz
Speaker Mounting	Panel Mount
Power Rating Max	3W
External Length - Metric	32mm
External Depth - Metric	13mm
External Length - Imperial	1.26"
External Depth - Imperial	0.512"
Product Range	-

Other details

Brand	VISATON
Part Number	BF32-8OHM
Quantity	Each
Technical Data Sheet EN
