Ubiquiti Networks CWDM Mux Demux 8
Ubiquiti Networks UACC-CWDM-8 Overview

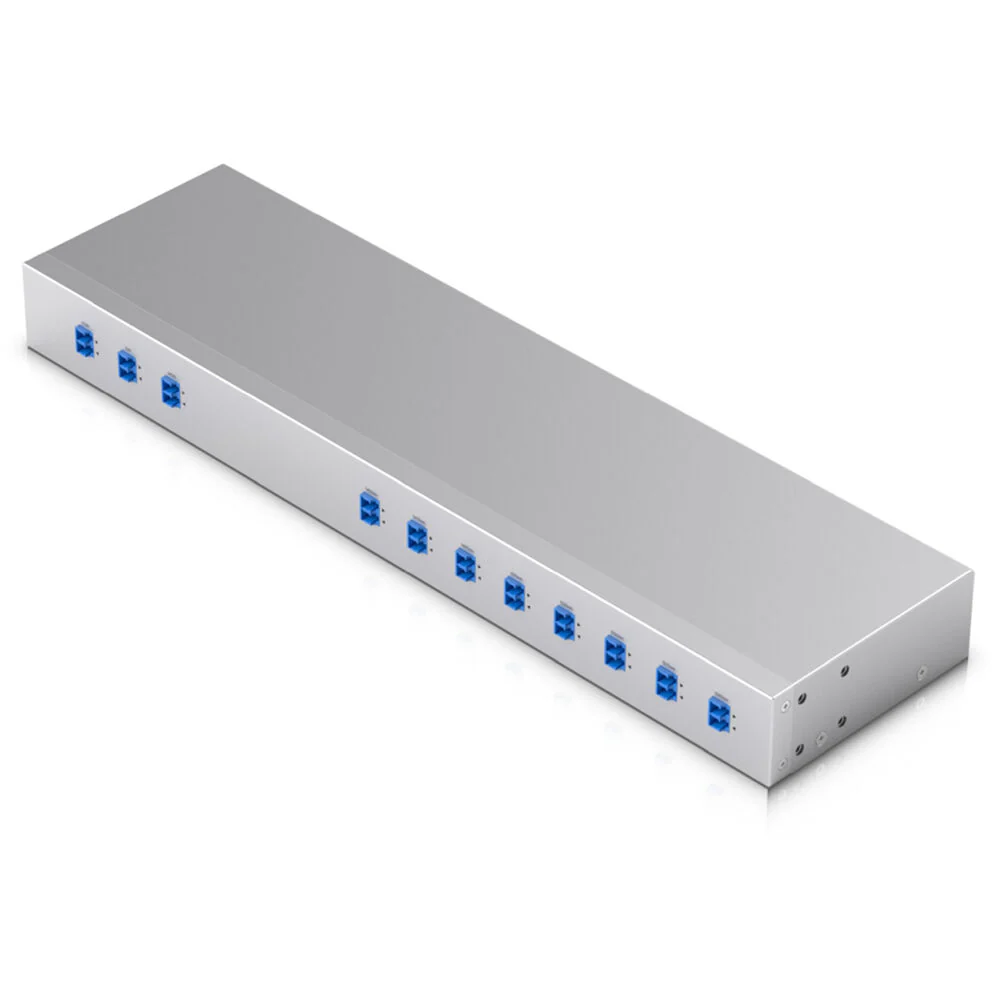

Increase the capacity of your fiber infrastructure with the Ubiquiti CWDM Mux Demux 8. Featuring eight multiplexer / demultiplexer channels, this rack mountable device switches signals from multiple inputs to a single output device or vice versa.
Each of the eight LC UPC ports support between 1450 to 1590nm single-mode fiber cables. An LC UPC communication port allows you to link a second CWDM Mux Demux 8 using a pair of single-mode fiber cables while the LC UPC expansion port lets you add more channels using a CWDM Mux Demux 4 device. You can use the LC UPC monitor port to add a separately purchased power meter or optical spectral analyzer.
Items Included
- Ubiquiti Networks CWDM Mux Demux 8
- Rackmount Kit
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ubiquiti Networks UACC-CWDM-8 Specs
| Compatibility |
Ubiquiti UniFi
|
| Channels |
8 x 1450 to 1590 nm Mux / Demux
|
| Connectors |
1 x 1450 to 1590 nm (LC/UPC)
1 x COM (LC/UPC) 1 x MON (LC/UPC) 1 x EXP (LC/UPC) |
| Cable |
Fiber Type: SMF-28e
Fiber Length: ?5 to 1 m |
| Mounting |
1x RU
|
| Color |
Gray
|
| Material of Construction |
Metal
|
| Operating Conditions |
-22 to 167°F / -30 to 75°C
|
| Storage Conditions |
-40 to 194°F / -40 to 90°C
|
| Dimensions |
17.4 x 4.7 x 1.7" / 442 x 120 x 43.7 mm
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
4.535 lb
|
| Box Dimensions (LxWxH) |
21.6 x 8 x 4.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
