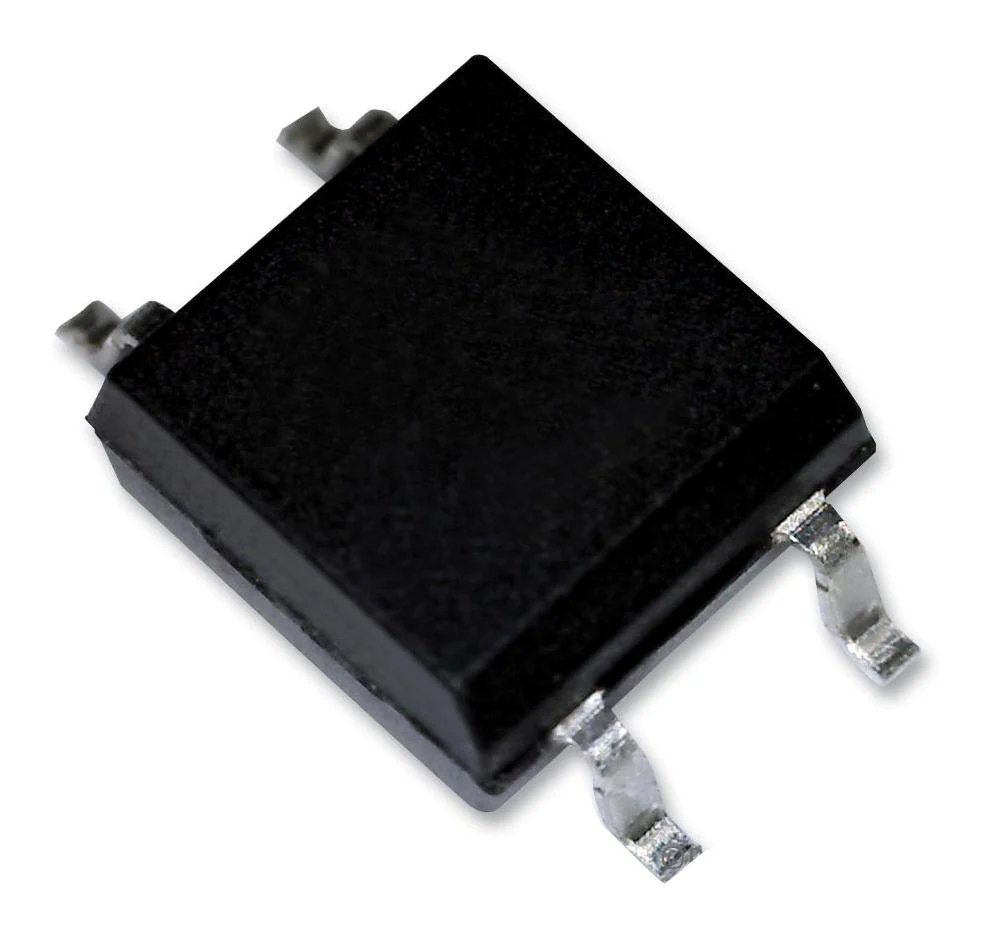

TOSHIBA TLP172GAM(TPL,E(T MOSFET Relay, SPST-NO (1 Form A), AC / DC, 400 V, 110 mA, SOP-4, Surface Mount TLP172GAM, TLP172GAM(TPL,E(O
TOSHIBA TLP172GAM(TPL,E(T MOSFET Relay, SPST-NO (1 Form A), AC / DC, 400 V, 110 mA, SOP-4, Surface Mount TLP172GAM, TLP172GAM(TPL,E(O
TLP172GAM(TPL,E(T is a photo relay. It consists of an infrared LED optically coupled to a photo-MOSFET, which is suitable for surface mount assembly. It is suitable for the battery management systems which require space savings. It is approved by UL-recognized: UL 1577, File No.E67349, cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349, VDE-approved: EN 60747-5-5. It is used in applications such as battery management system (BMS) (non-automotive), factory automation (FA), security systems, measuring instruments, smart meters, mechanical relay replacements.
- Halogen-free, normally opened (1-Form-A)
- OFF-state output terminal voltage is 400V minimum
- Trigger LED current is 3mA maximum
- ON-state current is 110mA maximum
- ON-state resistance is 45 ohm maximum at (t < 1s)
- Isolation voltage is 3750Vrms minimum
- Operating temperature range from -40°C to 110°C
- 4-pin SO6 package
Product details
| Contact Form: SPST-NO (1 Form A) |
| Load Type: AC / DC |
| Load Voltage Max: 400V |
| Load Current: 110mA |
| MOSFET Relay Package Style: SOP-4 |
| Relay Mounting: Surface Mount |
| Relay Terminals: Gull Wing |
| On State Resistance Max: 65ohm |
| Isolation Voltage: 3.75kV |
| I/O Capacitance Typ: 0.8pF |
| Off State Leakage Current Max: 1µA |
| Product Range: - |
Other details
| Brand | TOSHIBA |
| Part Number | TLP172GAM(TPL,E(T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$0.65
Original: $2.18
