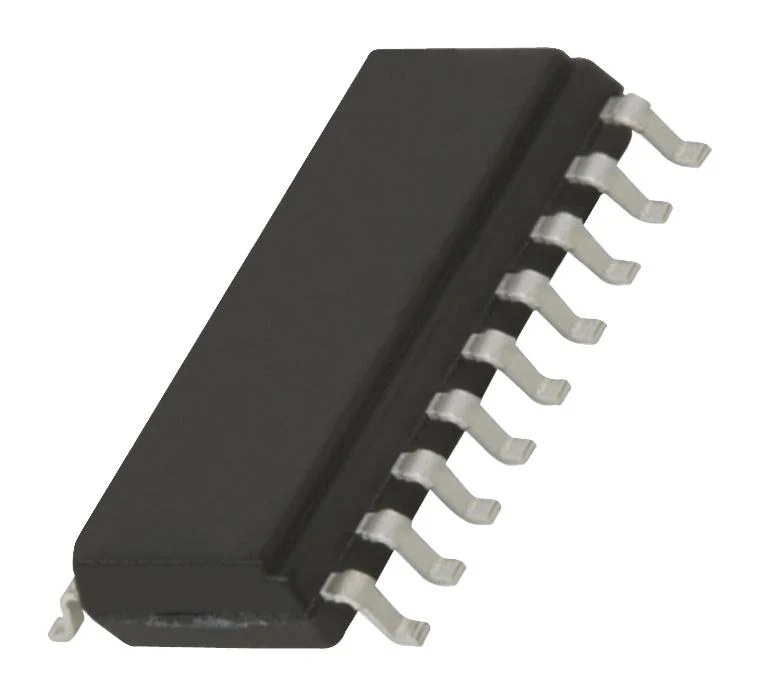

TOSHIBA TBD62783AFG(Z,EL) Peripheral Driver, 50 V /-0.5 A out, 8 Outputs, SOP, -40 °C to 85 °C TBD62783AFG, TBD62783AFG(Z
TOSHIBA TBD62783AFG(Z,EL) Peripheral Driver, 50 V /-0.5 A out, 8 Outputs, SOP, -40 °C to 85 °C TBD62783AFG, TBD62783AFG(Z
TBD62783AFG(Z,EL) is a TBD62783A series BiCD silicon monolithic integrated circuit. It has a clamp diode for switching inductive loads built-in in each output.
- 8 channel source type DMOS transistor array
- High voltage is 50V (max, Ta = 25°C), high current is -500mA (max, for each channel, Ta = 25°C)
- Input voltage range from 2 to 25V (output on, IOUT = -100mA or upper, VDS=2V, Ta = -40 to 85°C)
- Clamp diode forward current is 400mA (max, Ta = -40 to 85°C)
- Output leakage current is 1.0µA (max, VCC = 50V, VIN = 0V, Ta = 85°C)
- Clamp diode reverse current is 1.0µA (max, VR = 50V, Ta = 85°C)
- Turn on delay is 0.4µs (max, VCC = 50V, RL = 125ohm, CL = 15pF)
- Turn off delay is 2.0µs (max, VCC = 50V, RL = 125ohm, CL = 15pF)
- SOP18-P-375-1.27 package, operating temperature range from -40 to 85°C
Footnotes
Please be careful about thermal conditions during use.
Product details
| Supply Voltage Min: 2V |
| Supply Voltage Max: 50V |
| No. of Outputs: 8Outputs |
| Output Voltage: 50V |
| Output Current: -500mA |
| Driver Case Style: SOP |
| Product Range: - |
Other details
| Brand | TOSHIBA |
| Part Number | TBD62783AFG(Z,EL) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
