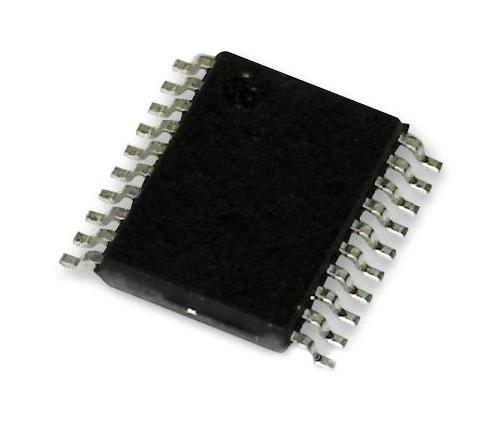

Texas Instruments PCF8574PWR PCF8574PWR I/O Expander 8 bit I2C 2.5 V 6 Tssop 20 Pins

The PCF8574PWR is an 8-bit input/output (I/O) Expander for the two-line bidirectional bus (I²C) is designed for 2.5 to 6V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface [serial clock (SCL), serial data (SDA)]. It features an 8-bit quasi-bidirectional I/O port (P0-P7), including latched outputs with high-current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data-direction control signal. At power on, the I/Os are high. In this mode, only a current source to VCC is active.

• Low standby-current consumption of 10µA maximum
• Open-drain interrupt output
• Compatible with most microcontrollers
• Latched outputs with high-current drive capability for directly driving LEDs
• Latch-up performance exceeds 100mA
• Green product and no Sb/Br

Applications

Industrial, Automation & Process Control, Communications & Networking, Computers & Computer Peripherals

Warnings Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	PCF8574PWR
Quantity	Each (Supplied on Cut Tape)
