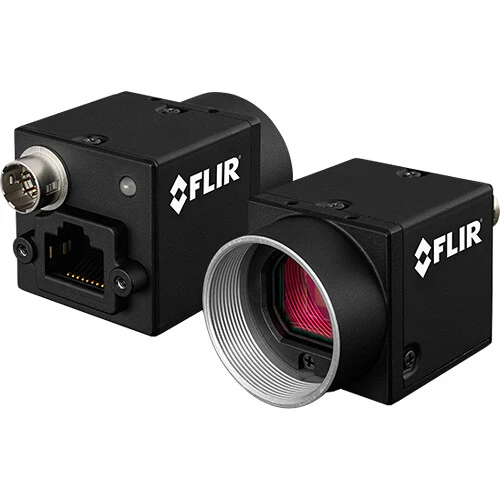

Teledyne Flir Blackfly S GigE 1.6MP Black & White Camera (CS Mount)
Teledyne Flir Blackfly S GigE 1.6MP Overview
The Blackfly S GigE 1.6MP Black & White Camera from Teledyne Flir captures up to 1440 x 1080 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 78 fps and 137 fps with turbodrive and lossless compression. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A CS lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX273 1/2.9" 2MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 20 ?s to 30 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: gamma, lookup table, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.57
- Dynamic range: 71.20 dB
- Gain range: 0 to 47 dB
- Quantum efficiency mono: 63 at 530nm
- Saturation capacity (e-): 10499
- Temporal dark noise (read noise): 2.26
Items Included
- Teledyne Flir Blackfly S GigE 1.6MP Black & White Camera (CS Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
Guides & Manuals
Teledyne Flir Blackfly S GigE 1.6MP Specs
| Image Sensor |
1/2.9"-Type CMOS
|
| Sensor Resolution |
Effective: 1.6 Megapixel
|
| Lens Mount |
CS
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
1440 x 1080 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
3 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.3 oz / 36 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
