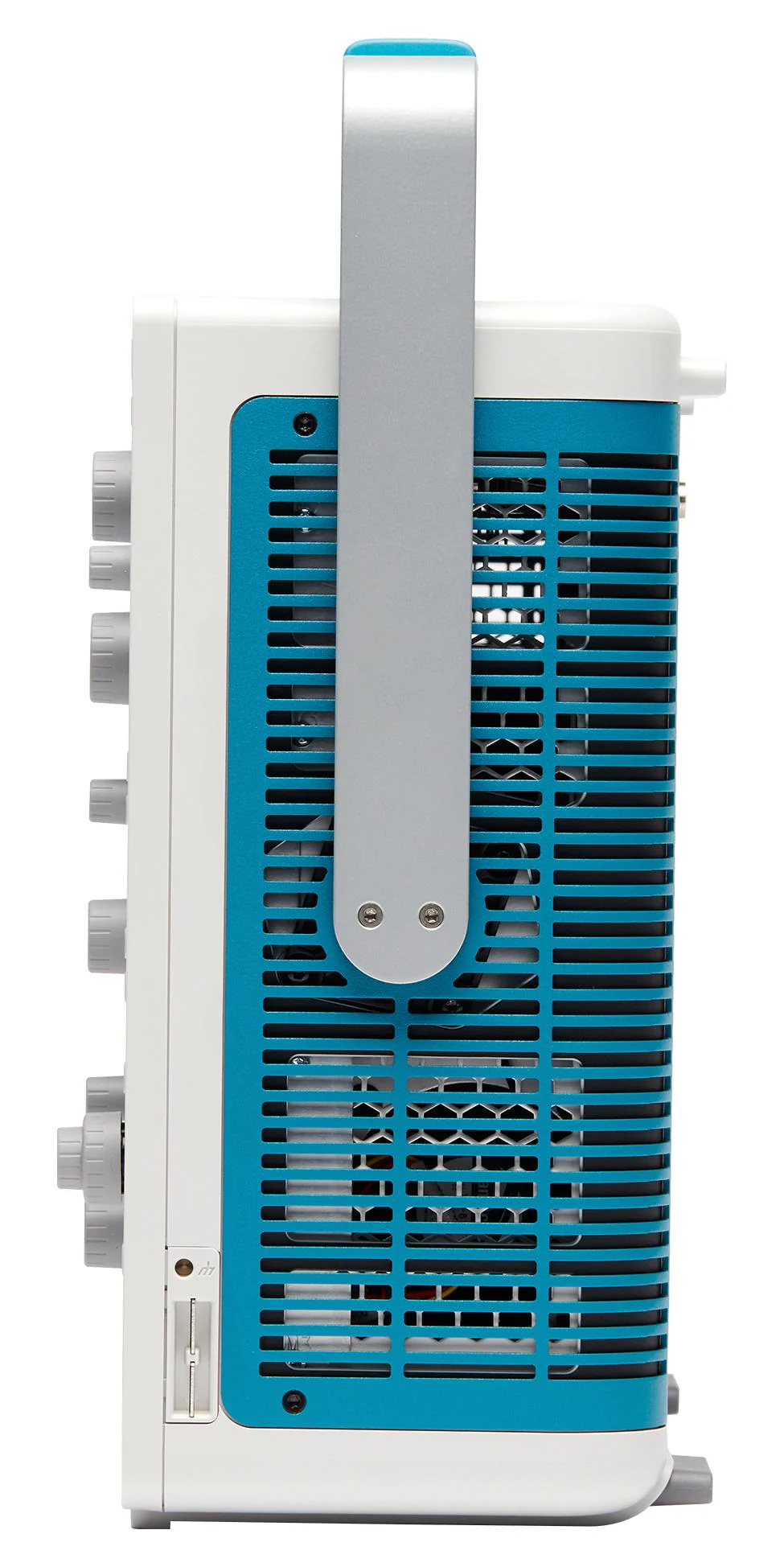

TEKTRONIX MSO44B 4-BW-200 MSO / MDO Oscilloscope, 4 Series B, 4 Analogue, 32 Digital, 200 MHz, 6.25 GSPS, 31.25 Mpts

MSO44B 4-BW-200 is a 4 series MSO with 200MHz bandwidth. It offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display and highly intuitive user interface. Applications such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analogue signals to verify and characterize device performance, and to debug challenging system issues. FlexChannel technology enables each channel input to be used as a single analogue channel, eight digital logic inputs (with the TLP058 logic probe ordered separately), or simultaneous analogue and spectrum views with independent acquisition controls for each domain.

• 4 FlexChannel® inputs
• Maximum digital channels (with optional logic probes): 32
• Sample rate is 6.25GS/s
• Record length of 31.25Mpoints standard (62.5Mpoints optional upgrade)
• 500,000 waveforms/s
• Vertical resolution 12 bit ADC, up to 16 bits in High Res mode
• 6-in-1 instrument integration
• Remotely view and control the oscilloscope over a network connection through a standard web browser
• 3 year standard warranty
• 249mm H x 450mm W x 155mm D size

Contents

MSO44 with 4 FlexChannels, Four TPP0250B 250MHz probes, Probe accessory kit, Installation and safety manual (translated in English, Japanese, Simplified Chinese), Accessory pouch, Power cord, Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration, 3-year warranty covering all parts and labor on the instrument, 1-year warranty, parts and labor, on included probes.
