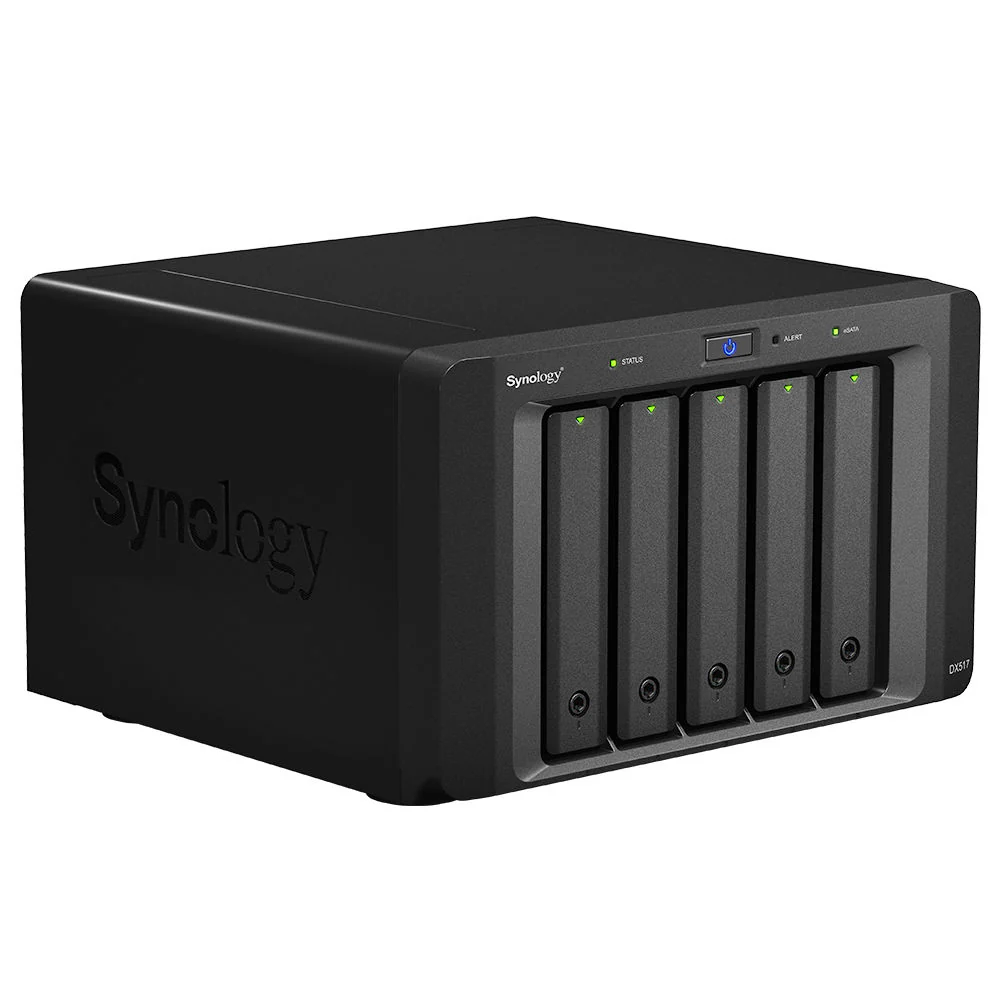

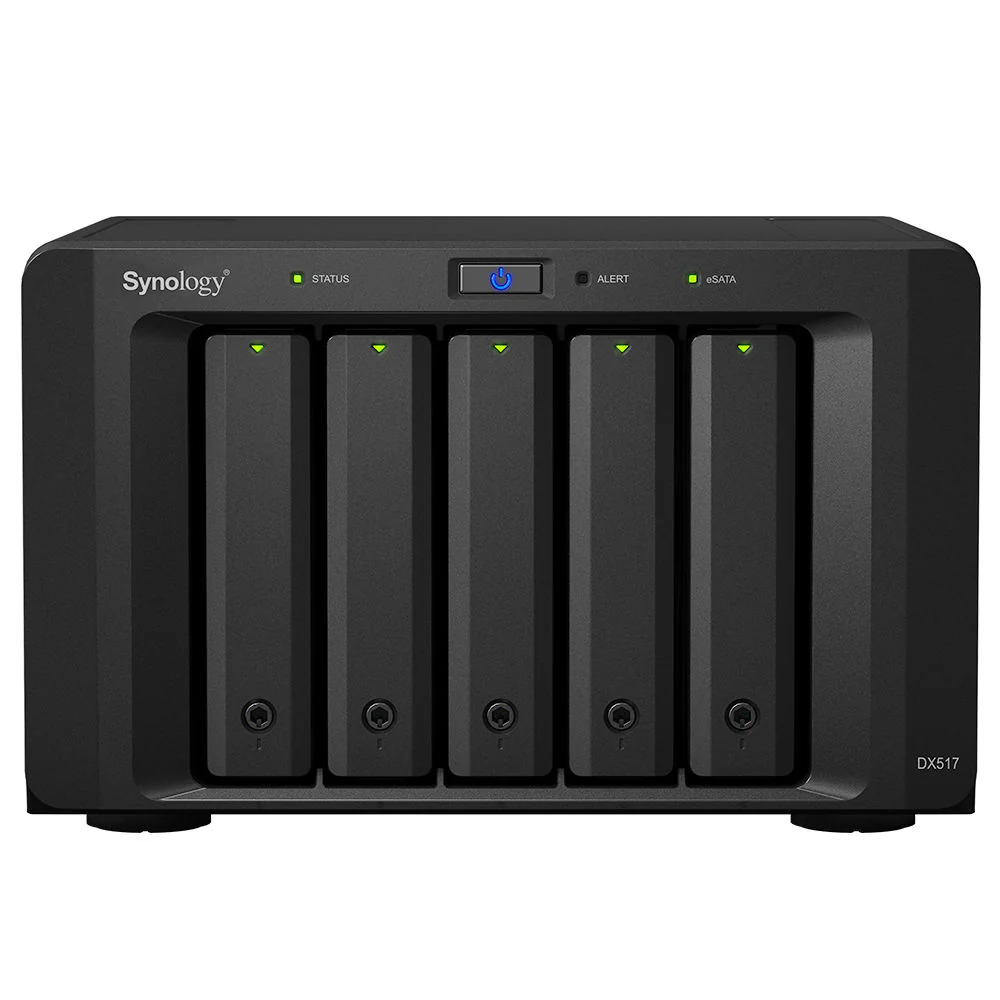

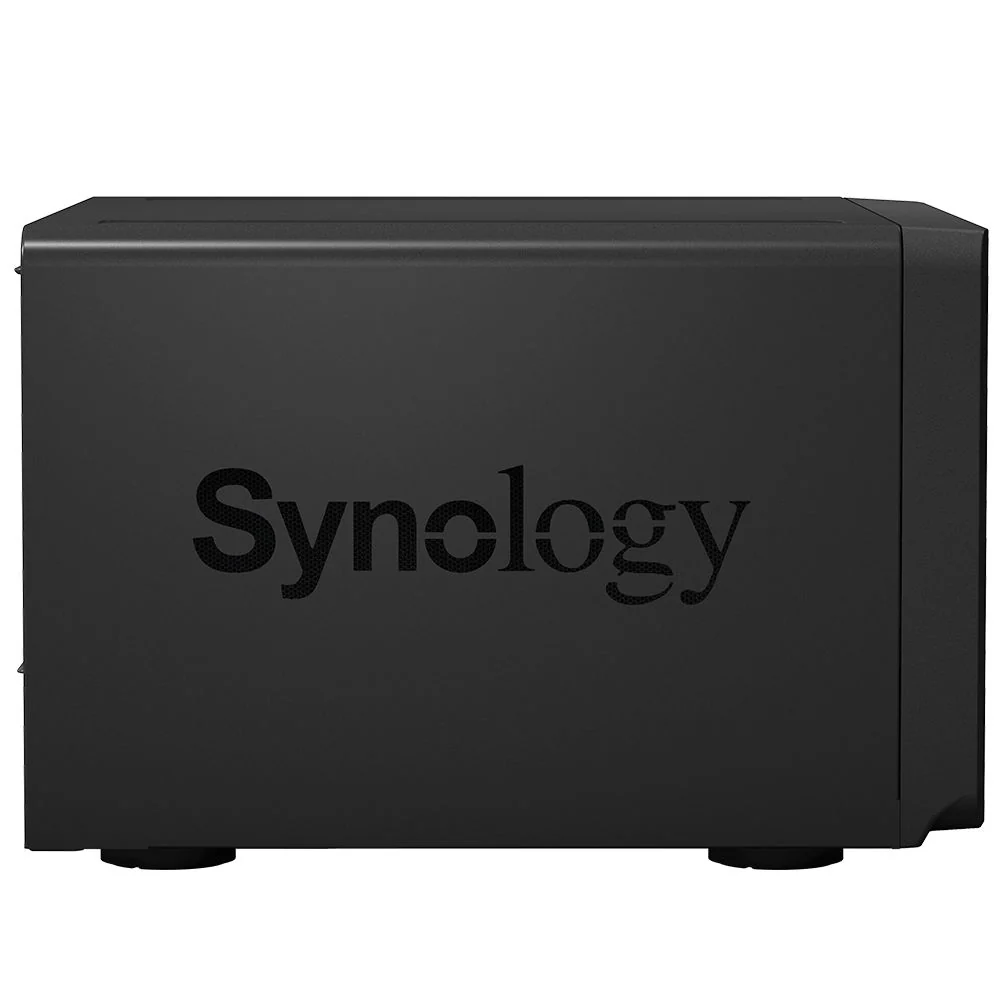

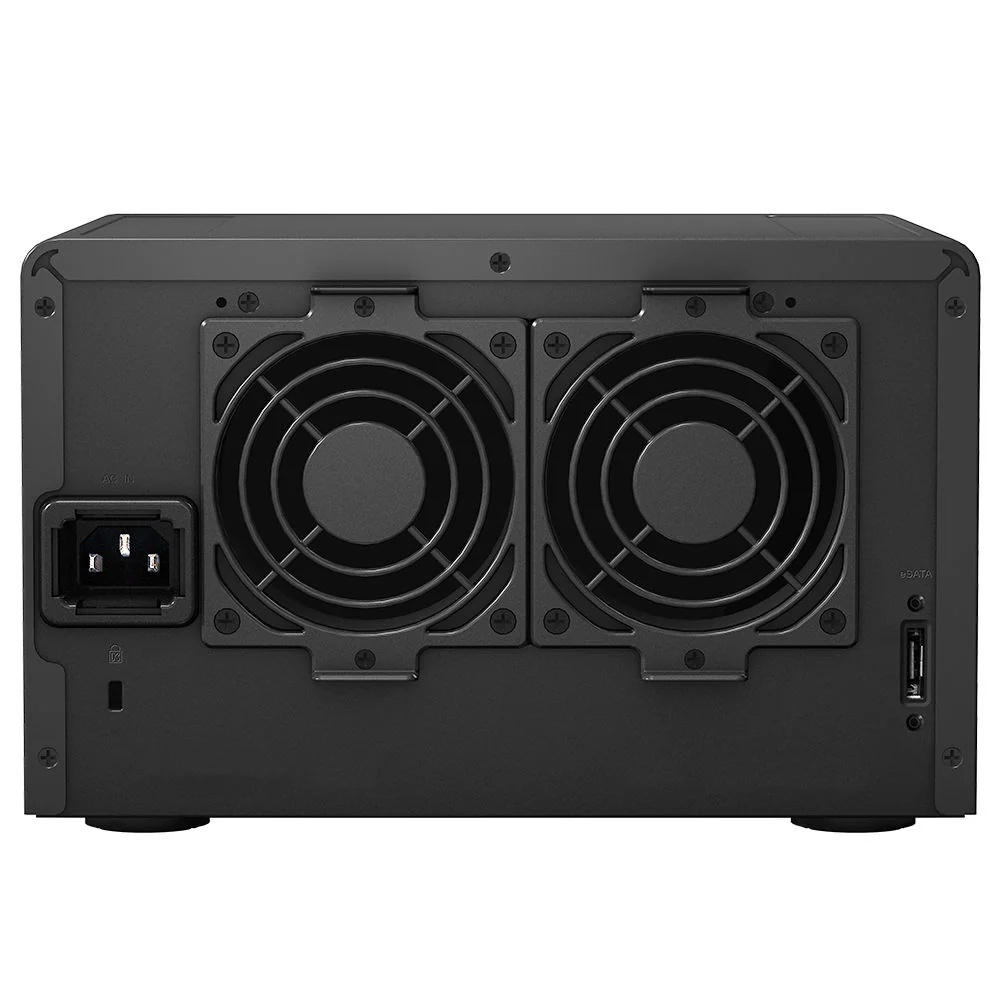

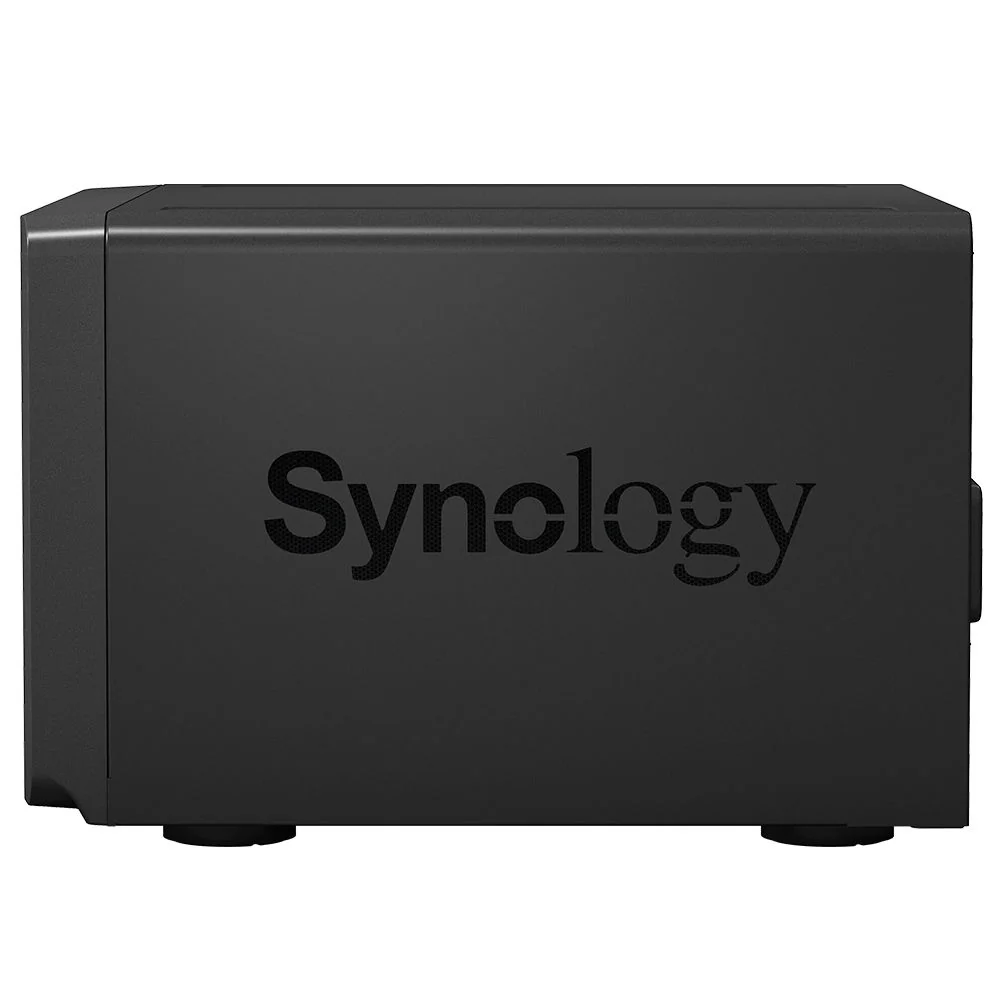

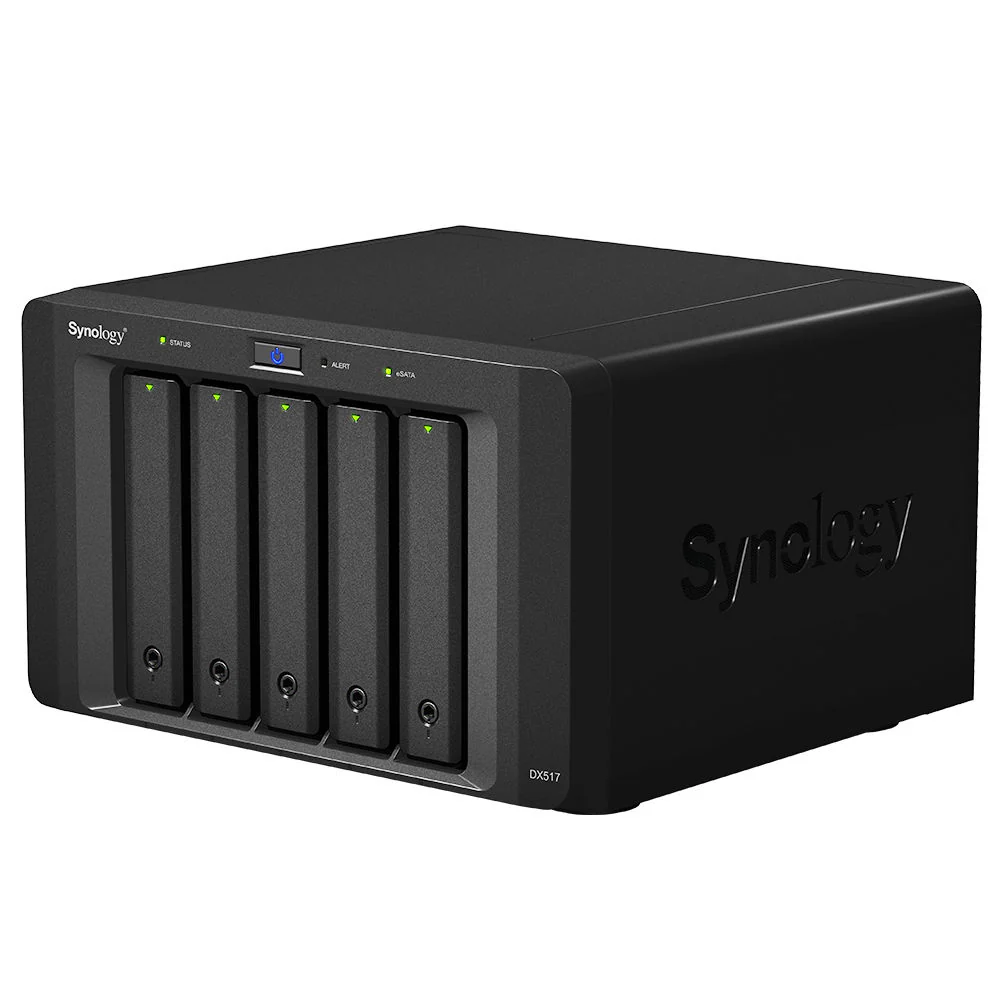

Synology DX517 5-Bay Expansion Enclosure
- For the Synology DiskStation DS1817+
- For the Synology DiskStation DS1517+
- 5 x 3.5"/2.5" SATA Drive Bays
- 1 x eSATA Port
- Hot-Swappable & Screwless Design
Built to support on-the-fly volume expansion and local backups, the DX517 5-Bay Expansion Enclosure from Synology adds an additional five 3.5"/2.5" SATA drive bays to their DiskStation DS1517+ 5-Bay NAS Enclosure or DiskStation DS1817+ 8-Bay NAS Enclosure. Its drive bays are hot-swappable and screwless, and included is an AC power cord, an accessory pack, and an eSATA expansion cable. Protection is provided by a limited 3-year warranty.
General Features
- 5-Bay 3.5"/2.5" SATA Expansion
- Add five additional drive bays to your Synology DiskStation DS1817+ and DS1517+. Supporting 2.5" SATA hard drives and SSDs, as well as 3.5" SATA hard drives, the DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
- Online Volume Expansion
- Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion helps ensure that storage and services on the host are not interrupted during volume expansion.
- Hot-Swappable Drive Tray Design
- The hot-swappable drive trays of DX517 allow drive installation and replacement without powering down the system. A screwless drive tray design also helps reduce the time needed for system setup.
- Dedicated Local Backup Solution
- Synology's DX517 can be used as a dedicated local backup solution for the Synology DiskStation DS1817+ or DS1517+. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
UPC: 846504002672
In the Box
Synology DX517 5-Bay Expansion Enclosure
- Accessory Pack
- AC Power Cord
- eSATA Expansion Cable
- Limited 3-Year Warranty
Synology DX517 specs
| Hardware Specifications |
|---|
| Applied Models | |
|---|---|
| Models | DS1817+, DS1517+ |
| Storage | |
|---|---|
| Drive Bays | 5 |
| Compatible Drive Types | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
| Hot Swappable Drives | Yes |
| RAID Management through Synology DSM | Yes |
| External Ports | |
|---|---|
| eSATA Ports | 1 |
| Power | |
|---|---|
| Power Recovery | Synchronized with the Synology DiskStation |
| Power Supply Unit / Adapter | 200 W |
| AC Input Voltage | 100 to 240 VAC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | Access: 29.9 W HDD Hibernation: 2.4 W |
| Temperature | |
|---|---|
| Operating Temperature | 40 to 104°F / 4 to 40°C |
| Storage Temperature | 15 to 155°F / -9 to 68°C |
| Relative Humidity | 5 to 95% |
| Others | |
|---|---|
| System Fan | 80 x 80 mm (2 pieces) |
| Easy Replacement System Fan | Yes |
| Noise Level | 21.5 dBA |
| Certifications | FCC Class B CE Class B BSMI Class B |
| Environment | RoHS Compliant |
| Dimensions & Weight | |
|---|---|
| Dimensions | 6.2 x 9.8 x 9.2" / 157 x 248 x 233 mm |
| Weight | 8.62 lb / 3.91 kg |
| Packaging Info | |
|---|---|
| Package Weight | 13.05 lb |
| Box Dimensions (LxWxH) | 14.7 x 13.6 x 12.7" |
$926.98
