SURGEX SX-AEP-209 Switched IP-Controllable Surge-Protected PDU
SURGEX SX-AEP-209 Overview

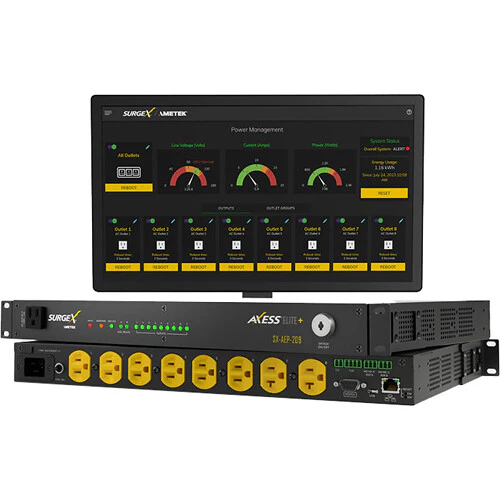

The SurgeX SX-AEP-209 Switched IP-Controllable Surge-Protected PDU is an AC power distribution unit with power conditioning, control, and monitoring, which is designed to mount into a rack unit. On the front, there are two NEMA 5-20R outlets and six NEMA 5-15R outlets, with one additional NEMA 5-15R outlet on the back. All nine total receptacles are grounded and switched.
The SX-AEP-209 is capable of remote control, enabled by the RJ45 port, micro-USB port, serial port, or contact closure connections. This device has a load rating of 16A at 120 volts and withstands up to 1000 occurrences of surge pulse voltages up to 6000V. The SurgeX Advanced Series Mode technology is completely non-sacrificial. The zero let-through technology provides the most reliable protection available.
- Magnetic shielding steel enclosure
- 10' grounded 3-wire #12 detachable line cord
- Advanced series mode surge protection
- EMI/RFI filtering
- SurgeX in-rush current elimination technology
- Remote turn-on
- Self-test circuit with visual indicator
- IP-Controlled: Individually switchable outlets with power analytics
- Auxiliary relays and contact closure for additional control
- Ethernet or RS-232 compatible
- External temperature and humidity sensor
- Scalable control
- Swappable power cord with lock
- Locking on/off Switch
- Third-party integration
- Supports wired RS-232, Ethernet HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1x, LDAP and SSH protocols
Items Included
- SURGEX SX-AEP-209 Switched IP-Controllable Surge-Protected PDU
- 10' Detachable Power Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
SURGEX SX-AEP-209 Specs
| Metering |
Yes
|
| Battery Backup |
No
|
| Outlets |
7x NEMA 5-15R
2x NEMA 5-20R |
| Additional I/O |
1x RJ45
1x Micro-USB |
| Surge Protection |
Yes
|
| Type |
Conditioner / Relay Outlets/Remote Power Control / Surge Suppressor
|
| Amp Rating |
16 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
Yes
|
| Battery Backup |
No
|
| Integrated Lamps |
No
|
| Outlets |
7x NEMA 5-15R
2x NEMA 5-20R |
| Wall Plug Type |
NEMA 5-20P
|
| Lamp I/O |
No
|
| Additional I/O |
1x RJ45
1x Micro-USB |
| Wireless |
Proprietary Wireless
|
| AC Input Power |
120 VAC, 50 / 60 Hz
|
| DC Output Power |
Not Specified by Manufacturer
|
| Load Capacity |
Not Specified by Manufacturer
|
| Sequencing Delay |
Yes
|
| Protection Types & Modes |
Line to Neutral, EMI Filter
|
| Circuit Breaker |
Yes
|
| Maximum Spike Current |
20 A
|
| Maximum Spike Voltage |
6000 V
|
| Surge Protection |
Yes
|
| Rackmount Size |
1 U
|
| Cable Length |
10' / 3 m
|
| Certifications |
CAN/CSA C22.2, FCC 47 CFR PART 15, SUBPART B, ICES-003 ISSUE 7, RoHS, UL 62368-1, WEEE
|
| Material of Construction |
Steel
|
| Dimensions |
17.4 x 11.8 x 1.7" / 442 x 300 x 44 mm
|
| Weight |
12.4 lb / 5.6 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
