STUDIO TITAN AMERICA High-Load Rotating Commercial Studio Stand
STUDIO TITAN AMERICA STA-01-350R-MK2-TRI (HIG... Overview

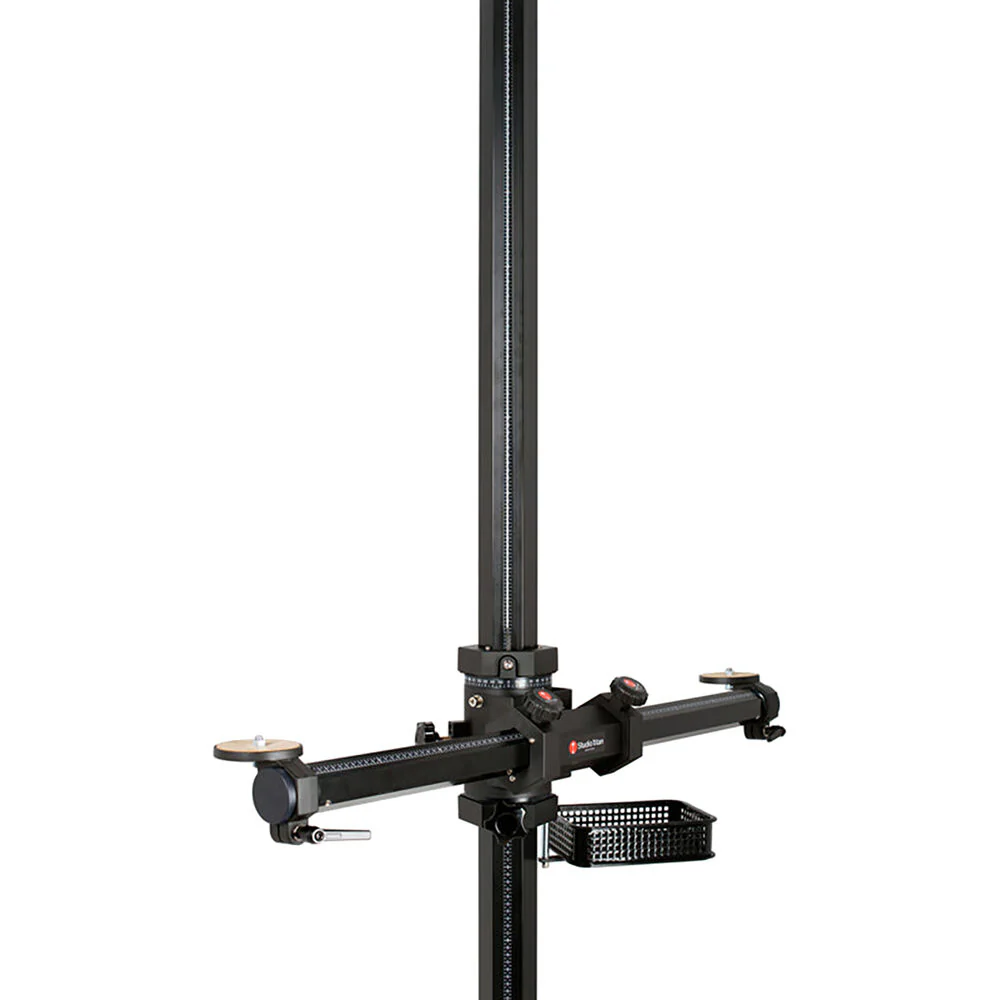

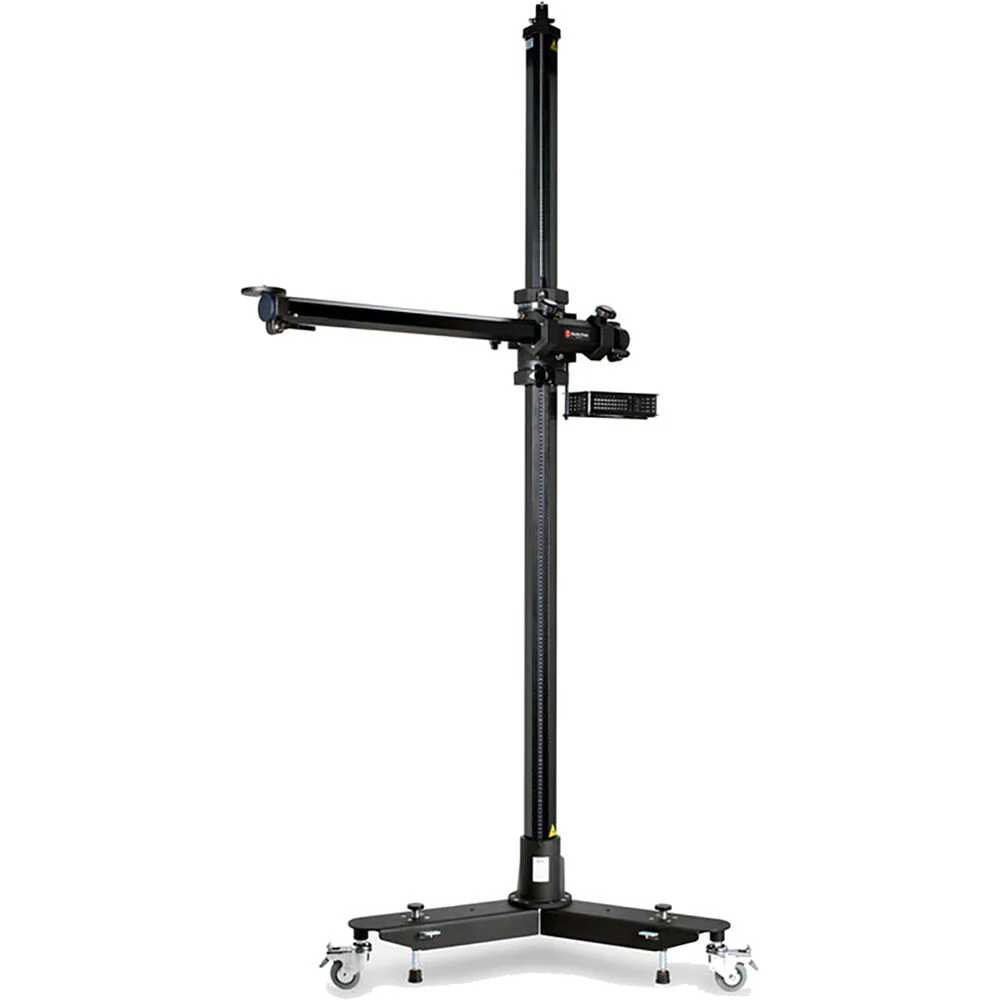

The High-Load Rotating Commercial Studio Stand from Studio Titan America is a camera stand designed for photogrammetry and optical measurement systems. It provides a working height of 78.7 inches from the top of the column extension to the floor and has a load capacity of 35 pounds. The horizontal arm has a travel range of 32.8 inches. The base is supplied with the STA-01-350LW-10 leg weight set for additional stability and provides additional reinforcement of the horizontal arm/bar with a heavy-duty interface plate. This design provides additional load support and spreads the load forces from the horizontal arm into both the front and the sides of the vertical carriage. This stand is categorized as 3-axis. It provides vertical, horizontal, and rotary movement of the camera. Vertical travel is provided by the vertical carriage. Horizontal arm extension is provided by the horizontal carriage. Rotary movement around the vertical column by the rotary carriage. The vertical carriage design incorporates a rotary carriage which allows the horizontal arm to freely rotate, 360 degrees, around the vertical column while the base remains stationary. The Camera Head Mount Plate has 360° movement and includes a 3/8"-16 mounting stud.
This product is intended for use in a studio, lab, or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat, and unobstructed.
- Vertical carriage provides precision smooth motion with secure axis lock from one brake knob.

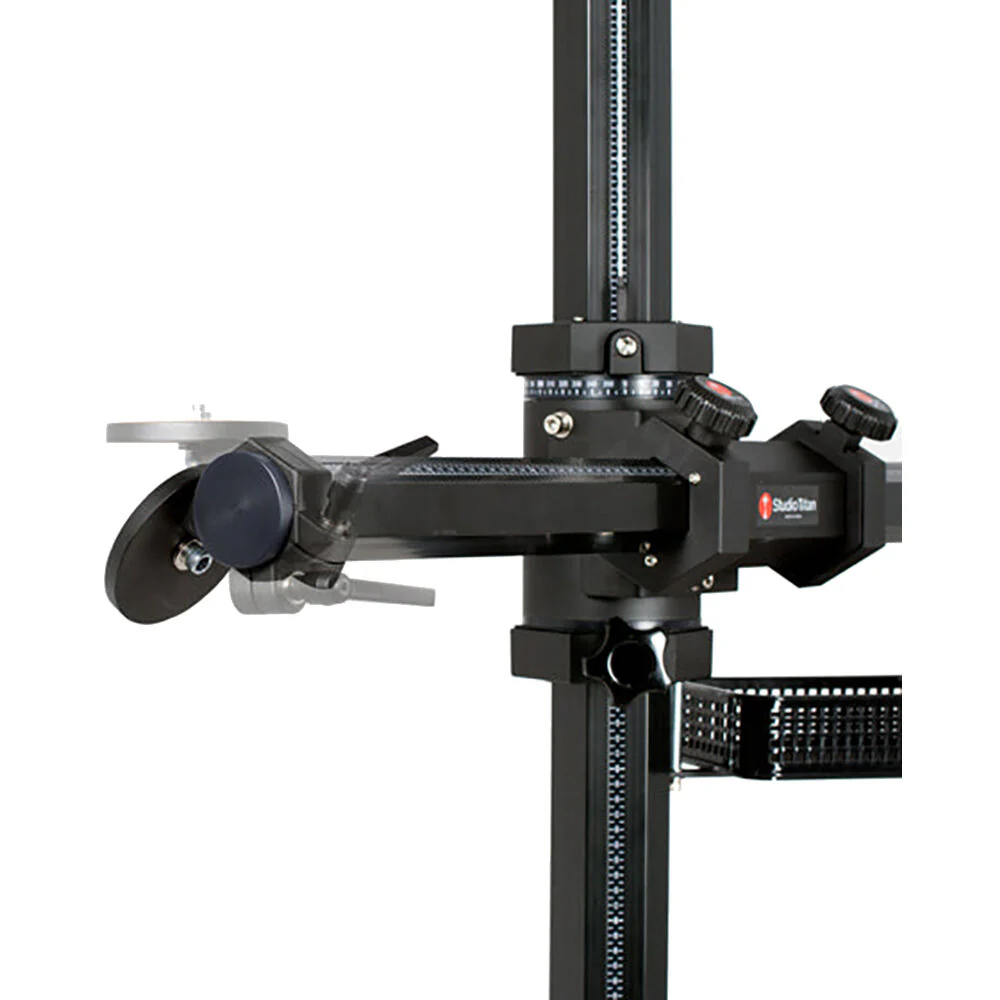

- Horizontal arm/bar carriage provides precision smooth motion with secure axis lock and two brake knobs

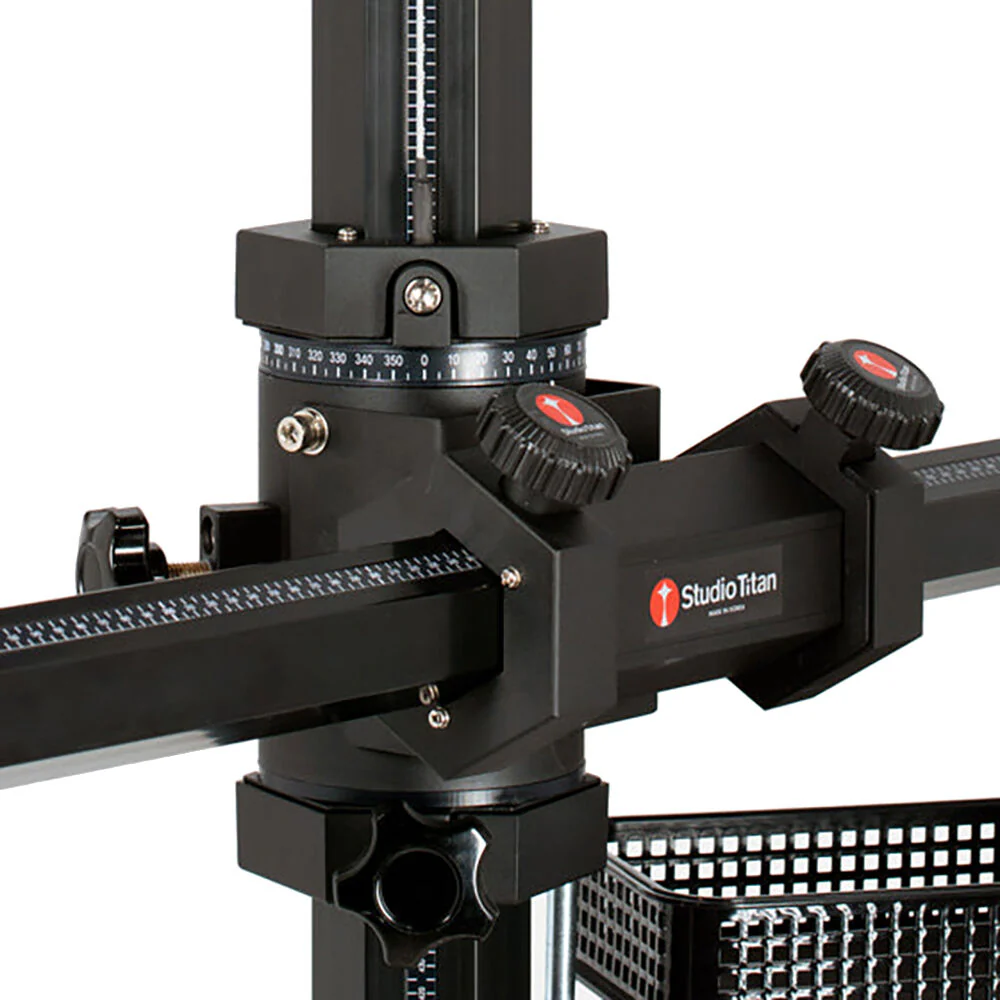

- Rotary carriage allows the horizontal arm to freely rotate 360° around vertical column, while the base remains stationary.
- Rotary carriage has smooth motion bearing, secure axis lock with one brake knob.
- Internal vertical column counterweight balances the load for single-handed operation.
- Low center of gravity base has foot-operated brake plungers.
- Foot-operated brake plungers provide quick operation and prevent movement on flat surfaces.
- Premium dual-stage bearing casters provide easy movement.
- Dual-stage foot brake stops both 3" wheel from rotating and the caster housing from swiveling
- Vertical and horizontal column have graduated tape scales.
- This stand ships in five boxes.
In the Box
- STUDIO TITAN AMERICA High-Load Rotating Commercial Studio Stand
- Assembly Tool
- Limited 90-Day Manufacturer Warranty
STUDIO TITAN AMERICA STA-01-350R-MK2-TRI (HIG... Specs
| Height |
78.7" / 200 cm (Assembled)
47.2 to 86.6" / 120 to 220 cm (Working) |
| Load Capacity |
35 lb / 15.9 kg
|
| Arm |
39.4" / 100 cm (33.5" / 85 cm Travel)
|
| Attachment Screw |
3/8"-16
|
| Base Type |
Wheeled
|
| Footprint |
39.4" / 100 cm
|
| Materials |
Aluminum Alloy, Steel
|
| Weight |
246.9 lb / 112 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $10,823.64
-70%$10,823.64
$3,247.09More Images
