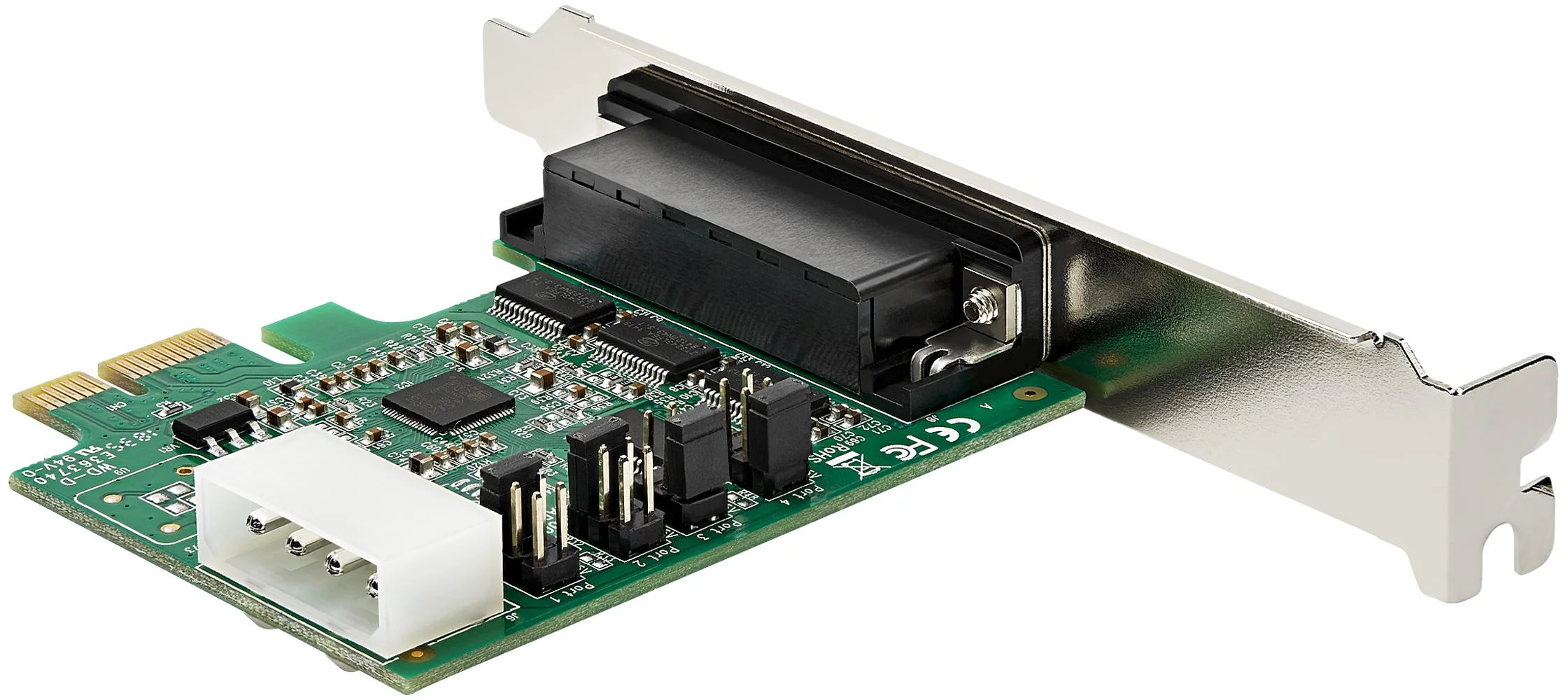

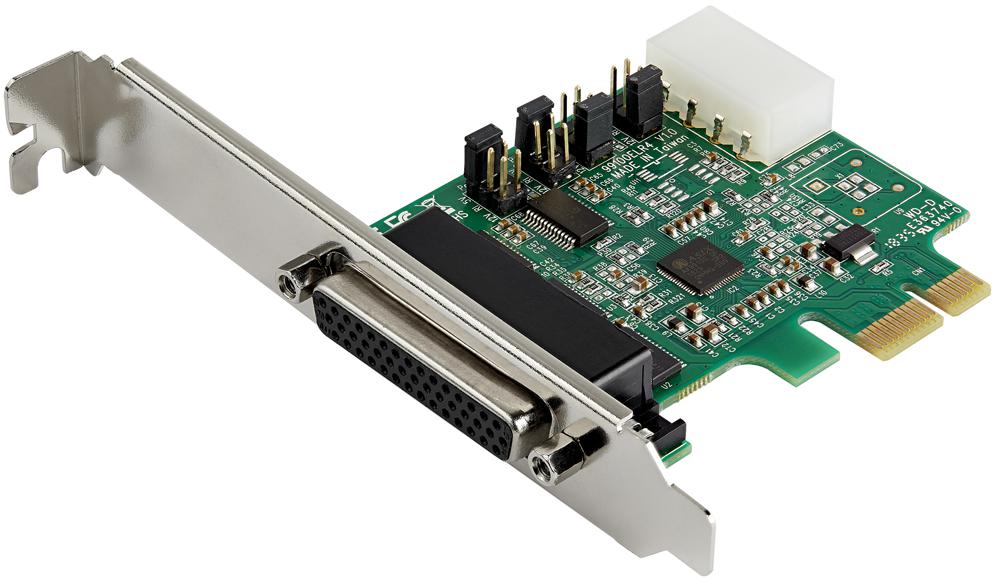

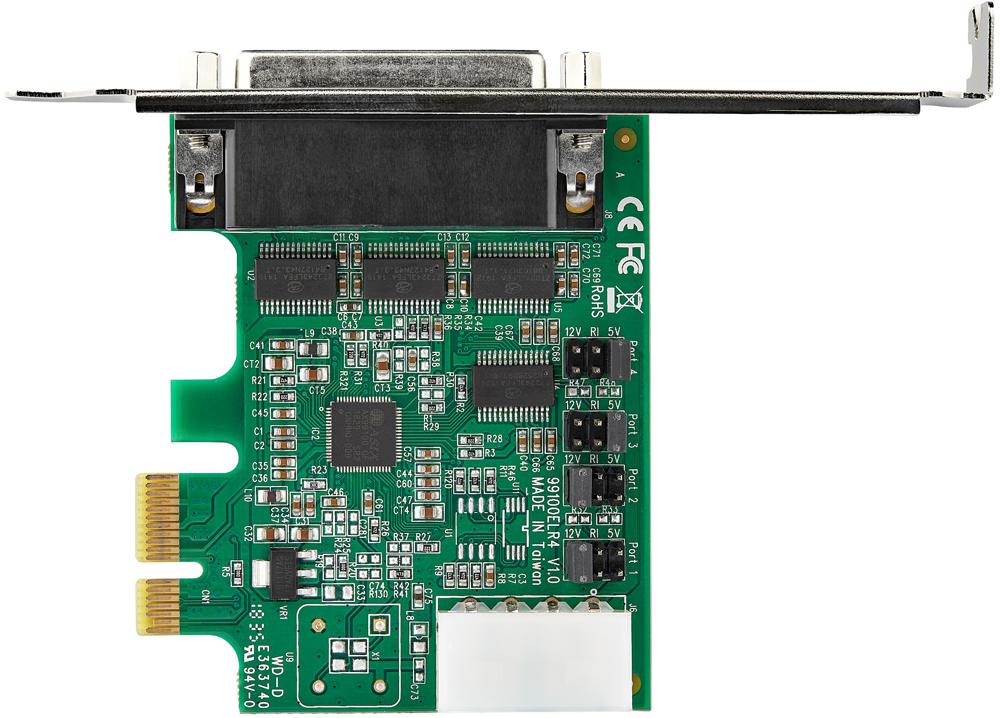

Startech PEX4S953 PEX4S953 Serial Interface PCI Express RS232 4 Port Expansion Card

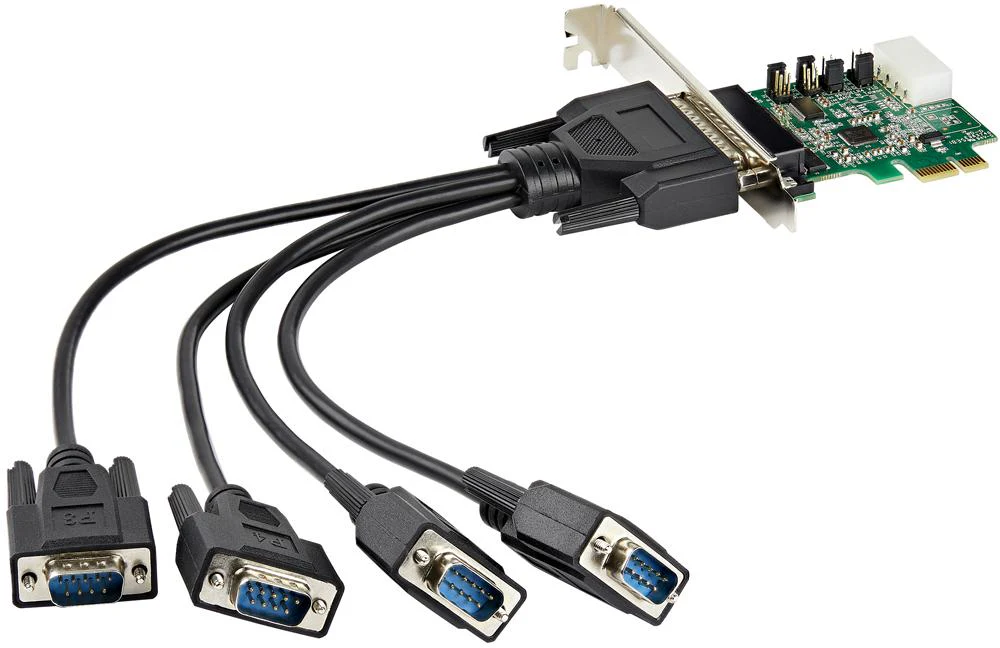

Provides four additional RS232 serial ports for your PC, ideal for connecting multiple legacy devices such as card readers, printers, PIN pads and modems. Serial connections are 9-pin D-Sub male via the included 4-way breakout cable and the board is fitted with a full size bracket.

• Compatible with industry standard 16950 UART
• Maximum data transfer rate of 921.6kb/s thanks to the ASIX AX99100 chipset
• Provides 5/12V power output on pin 9 (when external power is connected)
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• PCI-Express x1 interface

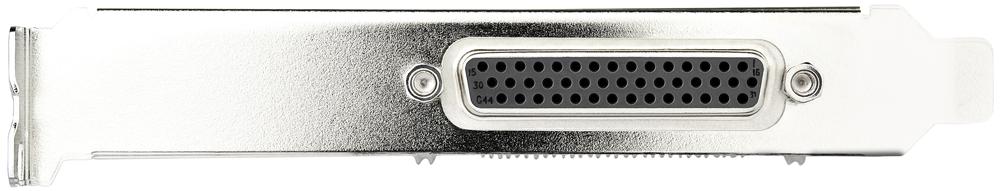

• Pre-fitted with full size bracket and supplied with Low Profile bracket
• Supports Win 7/8/10, Linux 2.4-2.6.x (LTS only)
• 2 Year manufacturer warranty

Contents

Serial card, LP bracket, breakout cable and user guide

Product details

Computer Interface	PCI Express, RS232
Product Range	-

Other details

Brand	STARTECH
Part Number	PEX4S953
Quantity	Each
Technical Data Sheet EN
