Soyuz Microphones Lakeside Single-Channel Preamp

Single-Channel Class-A Preamp

Inject weight, color, and lush, dimensional sound into your audio sources with The Lakeside, the first outboard processor from Soyuz. Designed to provide a finished sound to a wide range of inputs, including mics and passive instruments, The Lakeside offers a single channel of discrete, Class-A preamp circuitry for studio production.

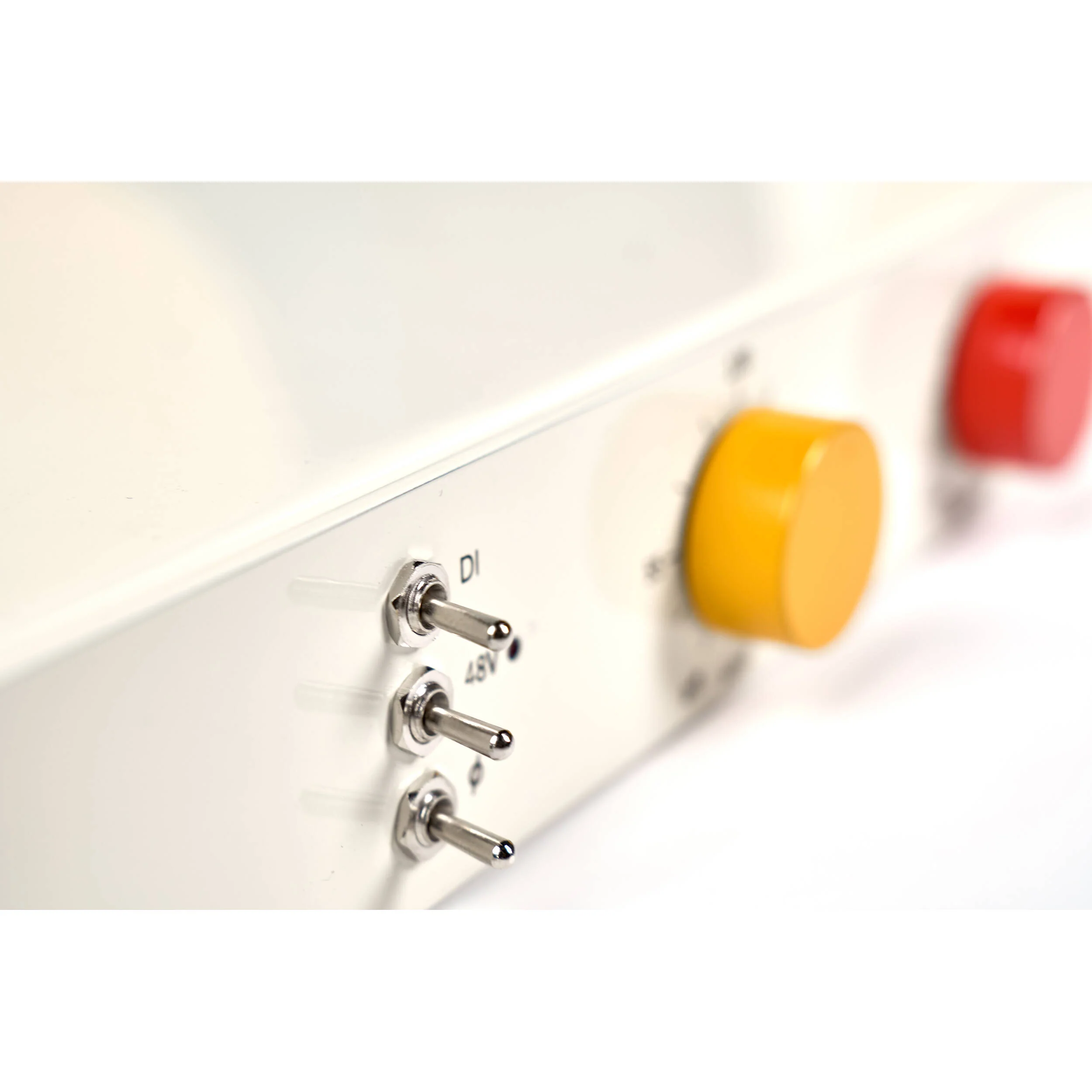

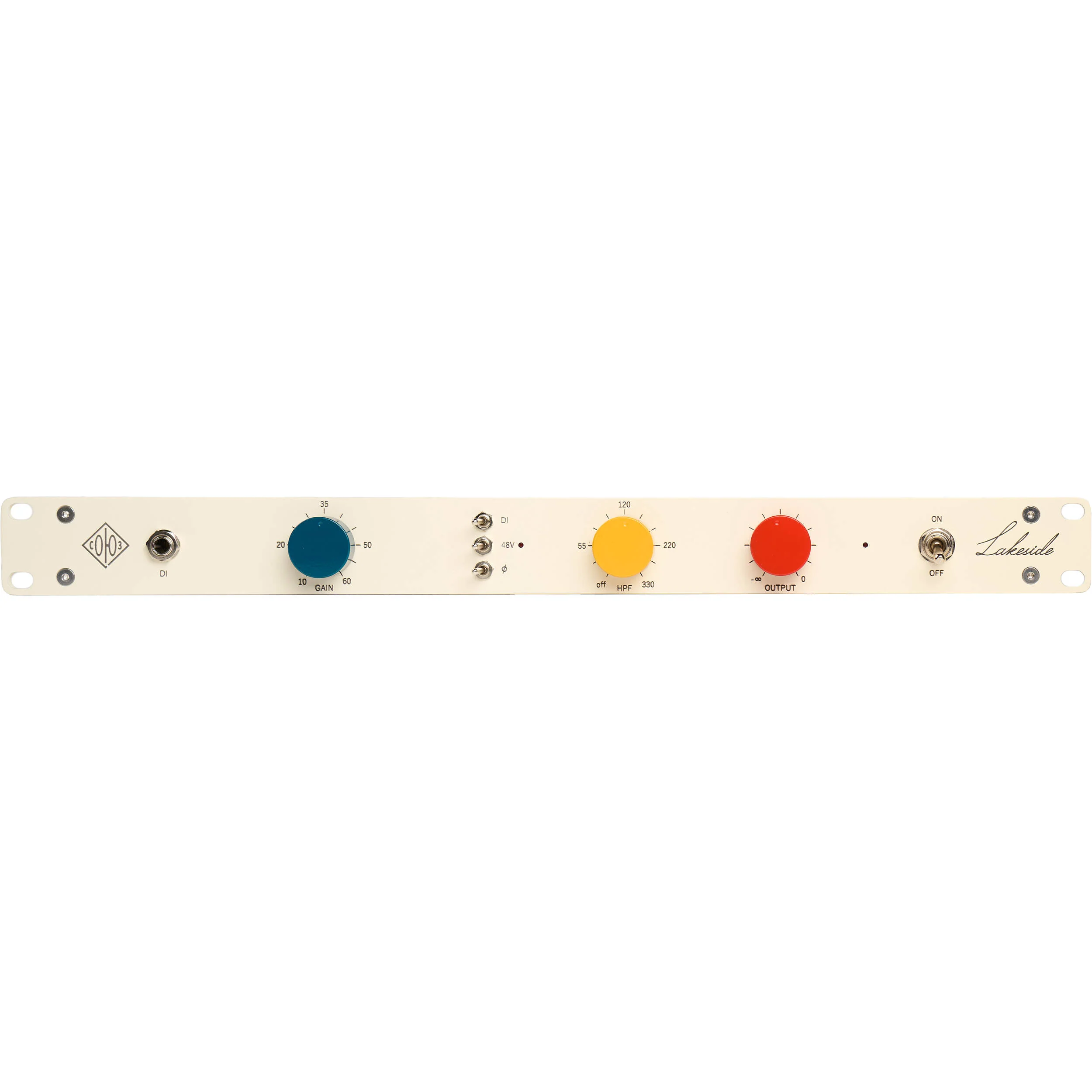

The Lakeside features stepped gain control between 10 and 60 dB in 5 dB increments for easy recall, and a smooth trim pot for adjusting output gain. With these two simple controls, you can easily find the optimal level of saturation for your signals. The front-panel 1/4" DI input is switchable, and ideal for capturing keyboards, drum machines, and passive guitars. You also get switchable 48V phantom power and phase reversal on the front panel. Finally, an inductor-based high-pass filter lets you remove unwanted rumbles, with adjustment from 40 to 330 Hz.

Inspired by the classics and built for the modern studio, the Lakeside Preamp combines Soyuz's renowned attention to detail, with engaging design and exceptional engineering. At the heart of The Lakeside are Soyuz�s proprietary custom-wound transformers on both the input and output, imbuing your sound with rich, harmonic texture.

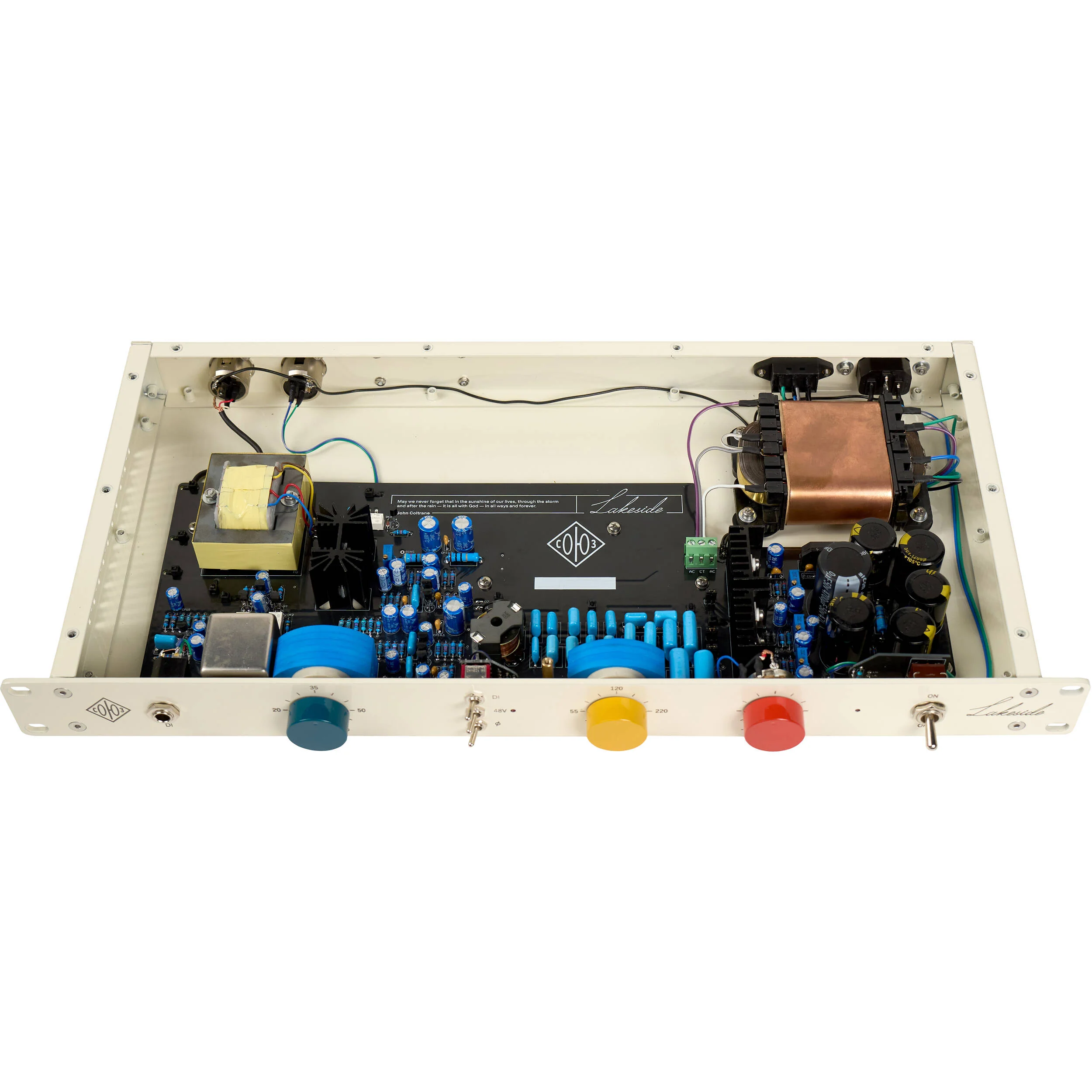

The Class-A, fully discrete, through-hole circuitry ensures maximum performance and clarity. The Lakeside preamp delivers the same vibe and sonic richness sought-after in prized vintage gear but with the benefits of cleaner headroom, lower noise, and consistent reliability.

The Lakeside is intentionally designed to be inviting and intuitive, enabling you to work quickly and easily, and dial in a perfect sound, while staying in your creative flow. The input-gain switch sets your signal to your optimal level and your preferred amount of saturation can be set in stepped 5 dB increments with satisfying clicks.

The output trim knob has a balanced and smooth response with precise control to fine-tune your level to your next capture stage. With these two knobs, you can explore a wide range of sounds with simple recall settings, and pair multiple Lakeside units for precise stereo matching on dual-mic setups or stereo sources.

The unique inductor-based high-pass filter adds another layer of control and creativity. The sturdy selector switch targets specific frequency points from 40 to 330 Hz with a musical resonance going beyond basic tone shaping.

This switch quickly sculpts your sound with a natural taper and gentle bump that preserves the originally captured feeling and encourages you to experiment in the moment. Whether you�re cutting through low-end rumble or adding clarity to your mix, use the filter�s resonances to discover new surprises in your sound.

The Lakeside preamp is the perfect match for every Soyuz microphone, but its sonic signature will enhance any other mic in your collection. Expect a full-bodied sound that adds a new dimension to your condensers, dynamics, and ribbons.

The 1/4� DI on the front panel adds weight and life to any instrument or high-impedance source�perfect for bass guitars, electrics, synths, drum machines, and more. Get creative and reamp your stems, recordings, and full mixes through the Lakeside, and take advantage of its warmth and distinct character across any track.

Soyuz Microphones Lakeside Specs

Frequency Response	20 Hz to 20 kHz (±0.5 dB)
Input Impedance	Mic: 1.2 Kilohms DI: 1 Megohm
Output Impedance	80 Ohms
Gain Control	10 to 60 dB
Maximum Output Level	+27 dBu (0.2% THD) +31 dBu (1.5% THD)
EIN	120 dB
THD+N	<0.02%

Audio I/O

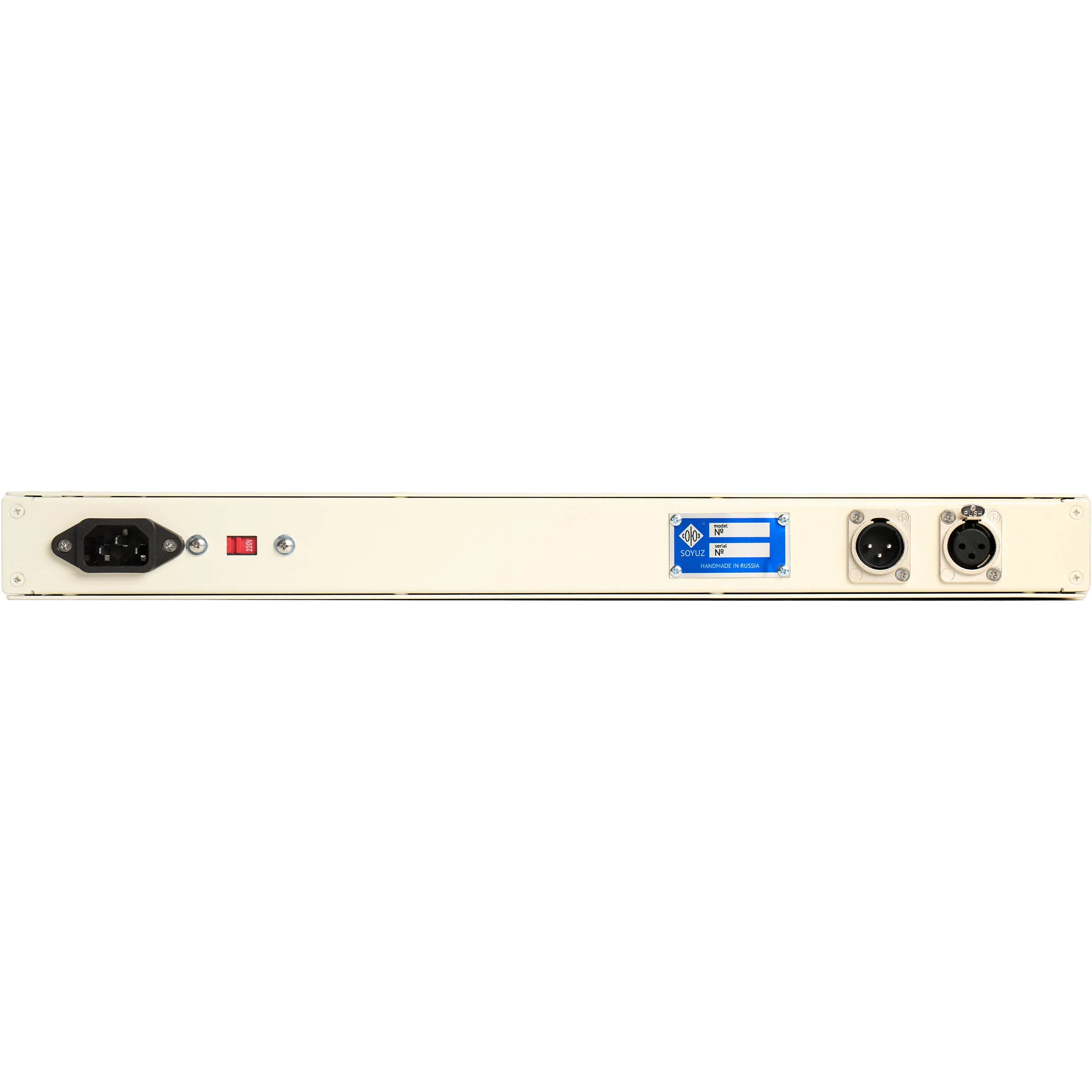

1x XLR 3-Pin Mic Input 1x 1/4" TS Hi-Z/Instrument Input (Front Panel) 1x XLR 3-Pin Line Output

Power Source

AC Input

Mounting	Front: 4x Standard Rackmount Screw
Color	Tan/Beige
Material of Construction	Metal
Dimensions	19 x 6.5 x 1.75" / 48.3 x 16.5 x 4.45 cm
Weight	13 lb / 5.9 kg

Package Weight	12.915 lb
Box Dimensions (LxWxH)	22 x 13.6 x 3.1"
