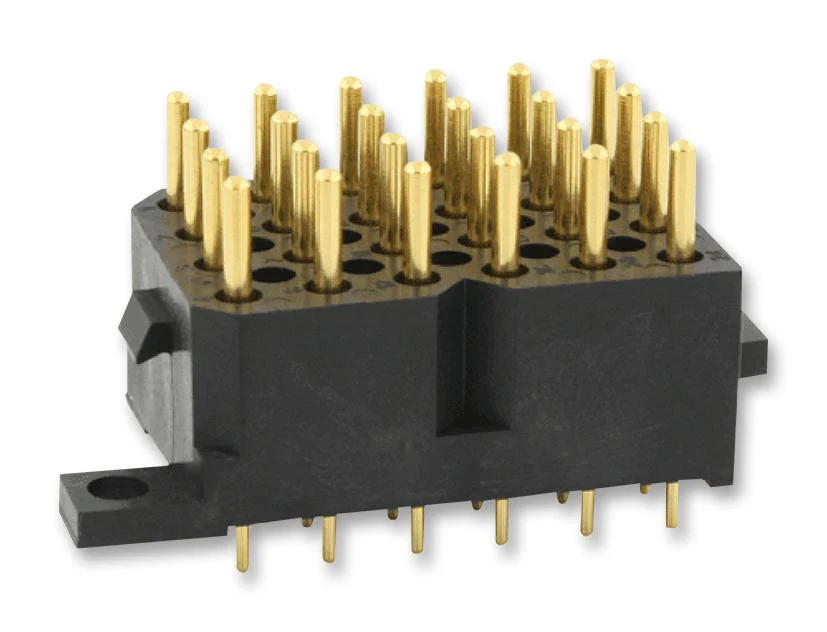

SOURIAU-SUNBANK / Eaton SMS24GE4 SMS24GE4 Pin Header Wire-to-Board 5.08 mm 4 Rows 24 Contacts Through Hole Straight Souriau Qikmate SMS

The Qikmate SMS series PC Boardmount Connector enable QIKMATE and preassembled TRIM TRIO contacts to be PC board mounted, using conventional solder production techniques. They will then mate and latch with the standard QIKMATE plugs. Straight boardmount QIKMATE is available in 10 insert arrangements from 2 to 36 positions. Right-angled boardmount QIKMATE is available in 3, 6, 12 and 18 positions. All boardmount connectors are supplied fully loaded with pin or socket contacts, either in solid machined or stamped and formed contacts. Stamped and formed contact has selective tin plating on the solder tails, thus eliminating flux operations. Some boardmount connectors have discrimination cavities in between contact cavities, thus offering discrimination without contact loss.

• 5000MR Minimum insulation resistance
• 2000VAC Test potential
• -55 to 125°C Operating temperature range

Applications

Industrial

Other details

Brand	SOURIAU-SUNBANK / EATON
Part Number	SMS24GE4
Quantity	Each
Technical Data Sheet EN
Drawing EN
CAD Multiple Formats EN
