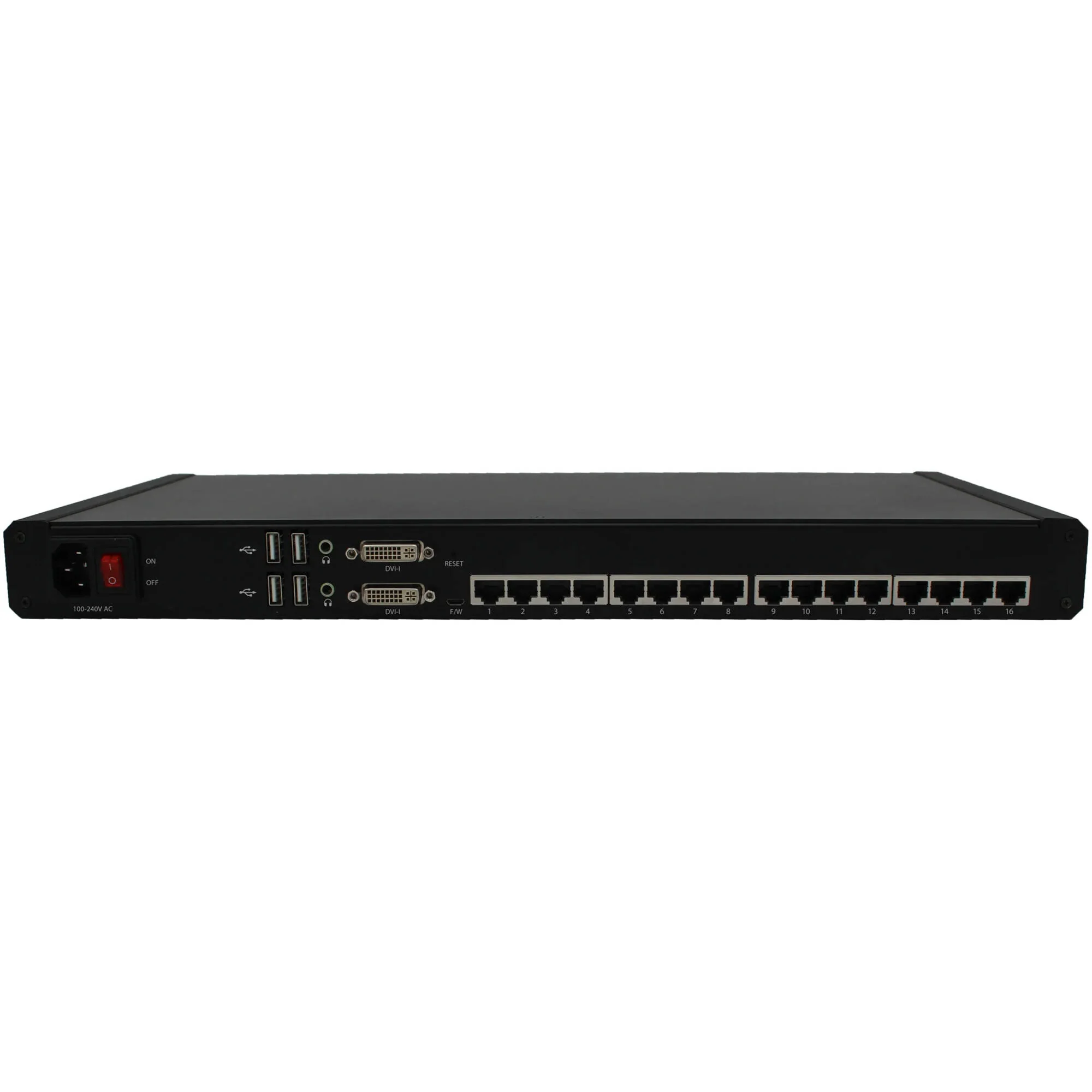

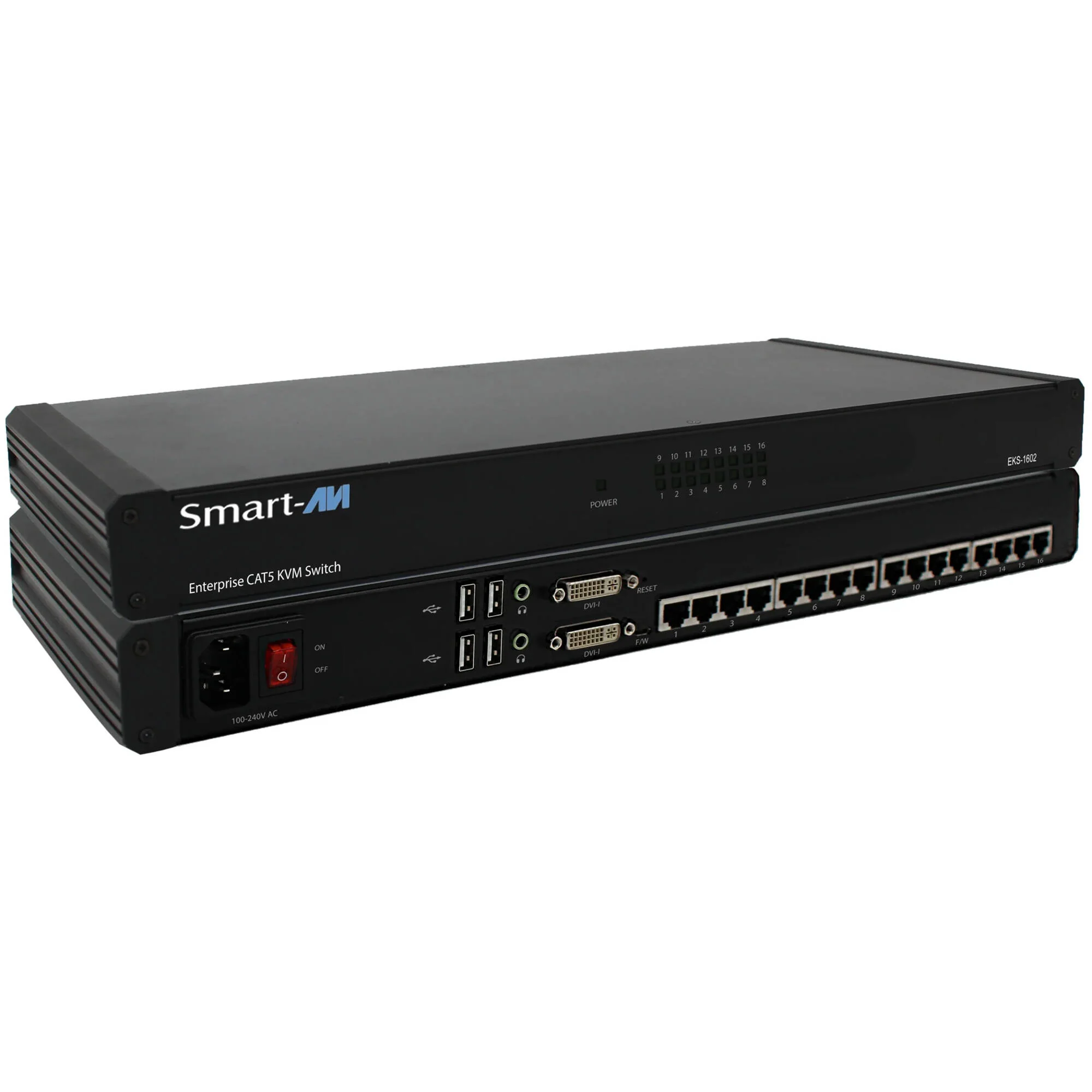

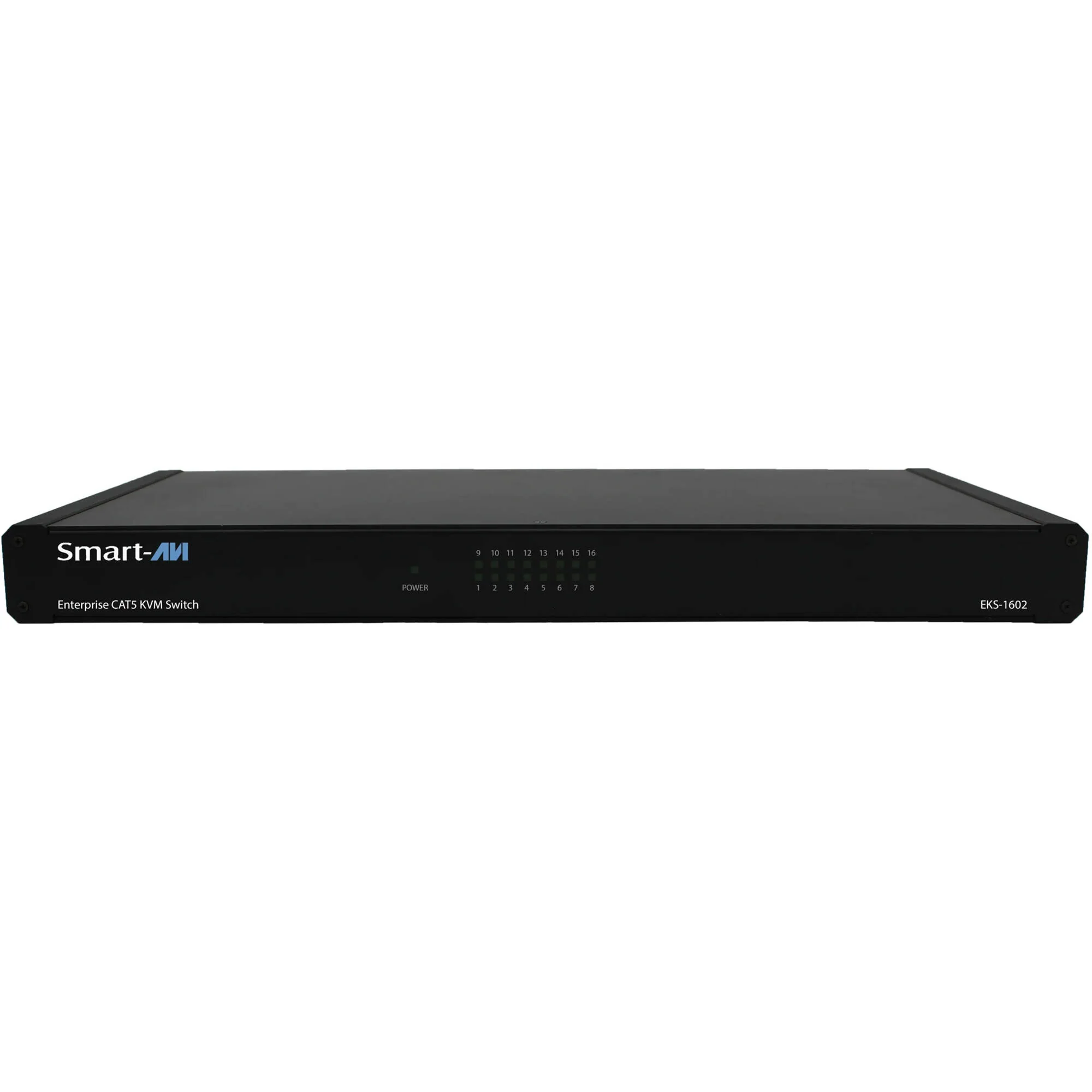

Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch
Smart-AVI EKS-1602 Overview
Maximize your company's efficiency by using the EKS-1602 16-Port Cat 5 KVM Switch from Smart-AVI. Supporting two local users, you can connect up to two USB keyboards, mice, 3.5mm speakers, and DVI-I compatible 1920 x 1200 resolution monitors and use them simultaneously.

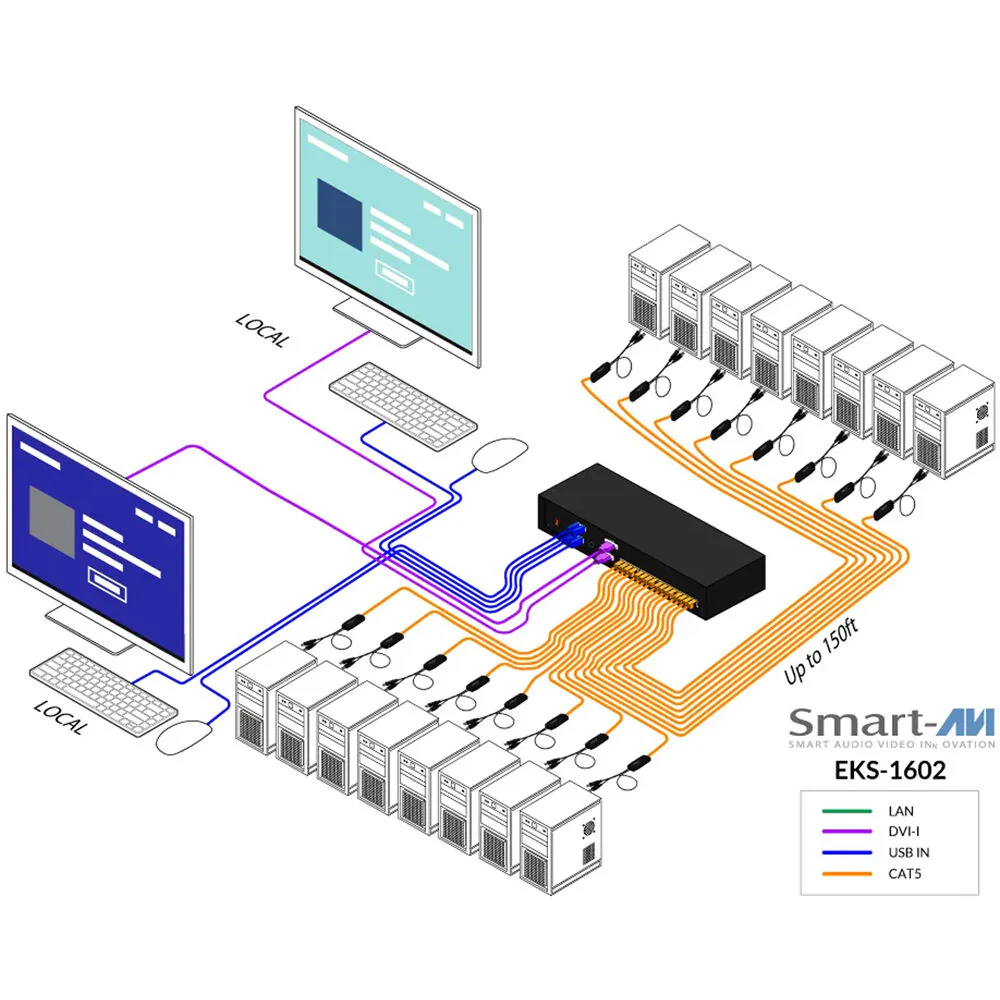

Connect devices to the 16 RJ45 ports through separately purchased Cat 5 Ethernet cables and KVM adapters. One HDMI, one DisplayPort, and one VGA adapter are included. You can quickly switch between devices using on-screen controls and hotkeys. No complicated configuration is required.
Items Included
- Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch
- Power Cable

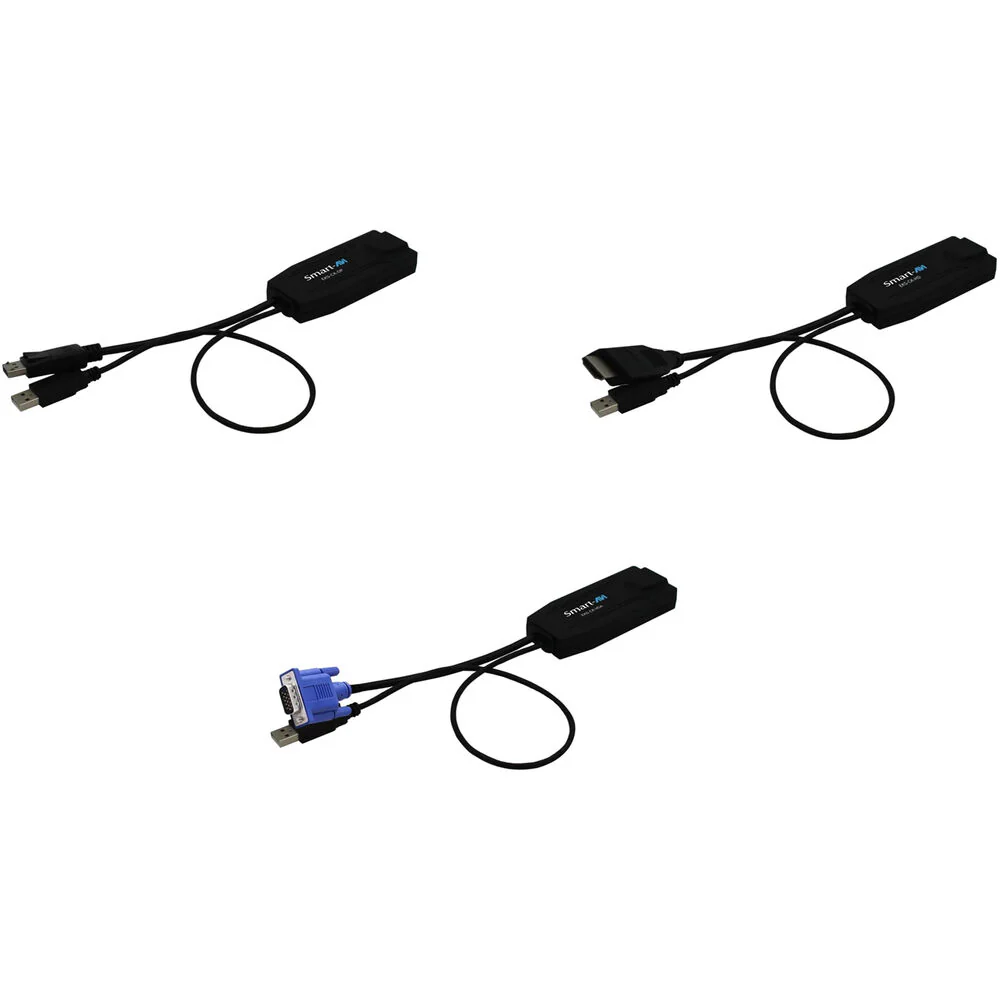

- KVM Adapter (HDMI)
- KVM Adapter (DisplayPort)
- KVM Adapter (VGA)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Smart-AVI EKS-1602 Specs
| # of Systems Supported |
16
|
| KVM I/O |
16x RJ45
|
| Console I/O |
2x DVI-I
2x USB-A (Keyboard) 2x USB-A (Mouse) 2x 1/8" / 3.5 mm Audio-Out 1x Micro-USB |
| Supported Resolutions |
1920 x 1200 @ 75 Hz
|
| # of Systems Supported |
16
|
| KVM I/O |
16x RJ45
|
| Console I/O |
2x DVI-I
2x USB-A (Keyboard) 2x USB-A (Mouse) 2x 1/8" / 3.5 mm Audio-Out 1x Micro-USB |
| Supported Resolutions |
1920 x 1200 @ 75 Hz
|
| USB Keyboard/Mouse Emulation |
Yes
|
| Power Source |
AC Adapter
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Certifications |
CE, FCC
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 5 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Housing Material |
Metal
|
| Dimensions |
17.4 x 5.9 x 1.7" / 442 x 149.9 x 43.2 mm
|
| Weight |
4.43 lb / 2.01 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
