Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio
HomeStore

Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio

Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio

Smart-AVI SM-DPN-4D-S Overview

Easily manage and monitor four systems from a single convenient local setup with the Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio. Whether you are an IT administrator, a creative designer, or business professional, this KVM gives you access to your systems and provides you with seamless switching when needed.

This unit supports four systems with DisplayPort video output at a maximum resolution of 3840 x 2160 with a 30 Hz refresh rate for a clear and smooth image. EDID Learn technology remembers the settings of your display to ensure you are getting the best possible view of your work every time you turn your systems on. Connect your peripherals, such as mice, keyboards, and more, with USB 2.0 connectivity to manage information with ease. Transfer audio, including notifications or alerts, via 3.5mm jacks, and connect speakers or a headset to the KVM. You can easily switch systems using the front-panel push button or keyboard hotkeys.

Keyboard & Mouse Emulation
Keyboard and mouse emulation mimics the connection between a computer and your devices to keep your equipment in constant connection. This prevents the connected systems from accidentally disconnecting your devices and prompting a system reset.
Dual-Head Design
Support for multiple displays with dual-head design allows you to expand your system's screen real estate so you can work on more complex programs per system.
RS-232 Serial Commands
For advanced control methods, you can use various RS-232 commands with terminal applications.
UPC: 657477086275

Items Included

  • Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio
  • Power Supply
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Smart-AVI SM-DPN-4D-S Specs

    Key Specs
    # of Systems Supported
    4
    KVM I/O
    4x DisplayPort
    4x USB-B
    4x 1/8" / 3.5 mm
    Console I/O
    2x DisplayPort
    2x USB-A (Keyboard/Mouse)
    2x USB-A
    1x 1/8" / 3.5 mm
    Supported Resolutions
    3840 x 2160 @ 30 Hz
    General
    # of Systems Supported
    4
    KVM I/O
    4x DisplayPort
    4x USB-B
    4x 1/8" / 3.5 mm
    Console I/O
    2x DisplayPort
    2x USB-A (Keyboard/Mouse)
    2x USB-A
    1x 1/8" / 3.5 mm
    Supported Resolutions
    3840 x 2160 @ 30 Hz
    USB Keyboard/Mouse Emulation
    Yes
    OS Compatibility
    Windows
    macOS
    Linux
    Power
    Power Source
    AC Adapter
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    Power Consumption
    24 W
    Physical
    Certifications
    CE, RoHS, UL
    Operating Conditions
    32 to 104°F / 0 to 40°C up to 80% Humidity
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Dimensions
    12.57 x 6.69 x 2.7" / 31.93 x 16.99 x 6.9 cm
    Weight
    4.2 lb / 1.9 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $456.99

    Original: $1,523.29

    -70%
    Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio—

    $1,523.29

    $456.99

    More Images

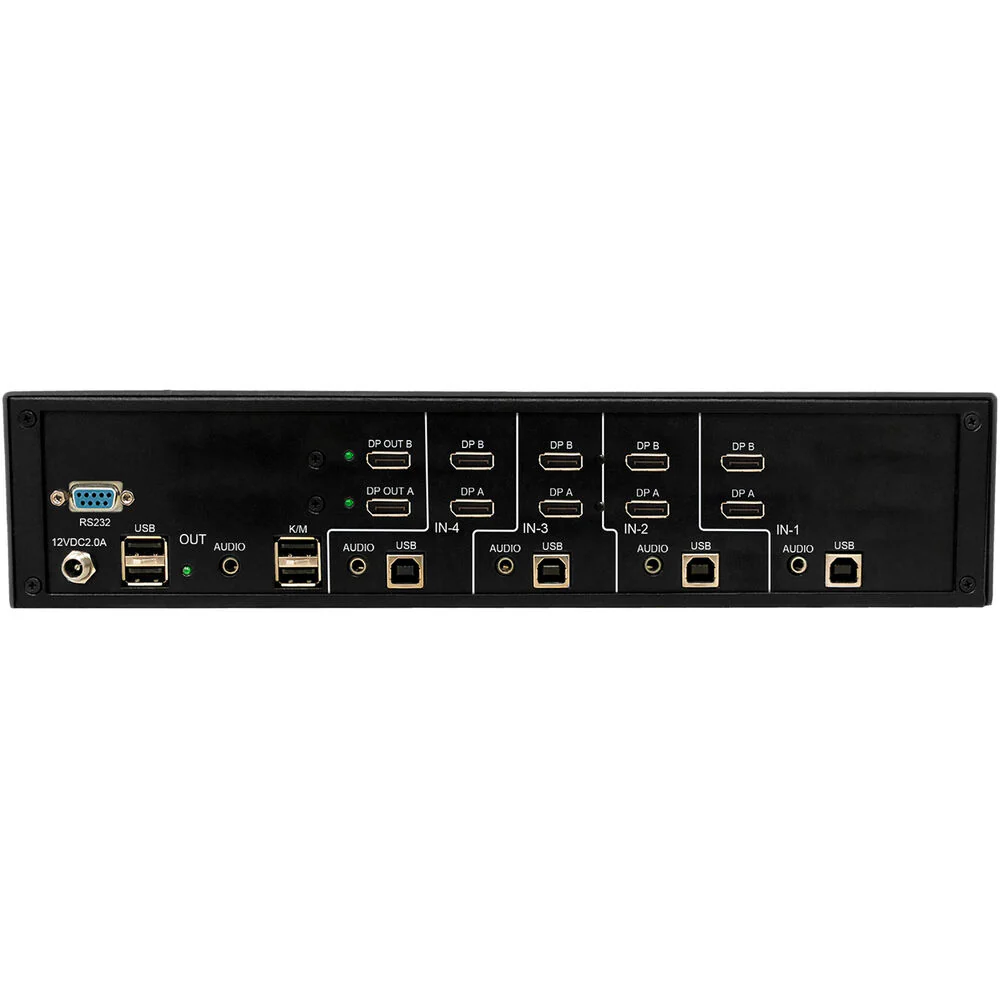

    Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio - Image 2
    Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio - Image 3

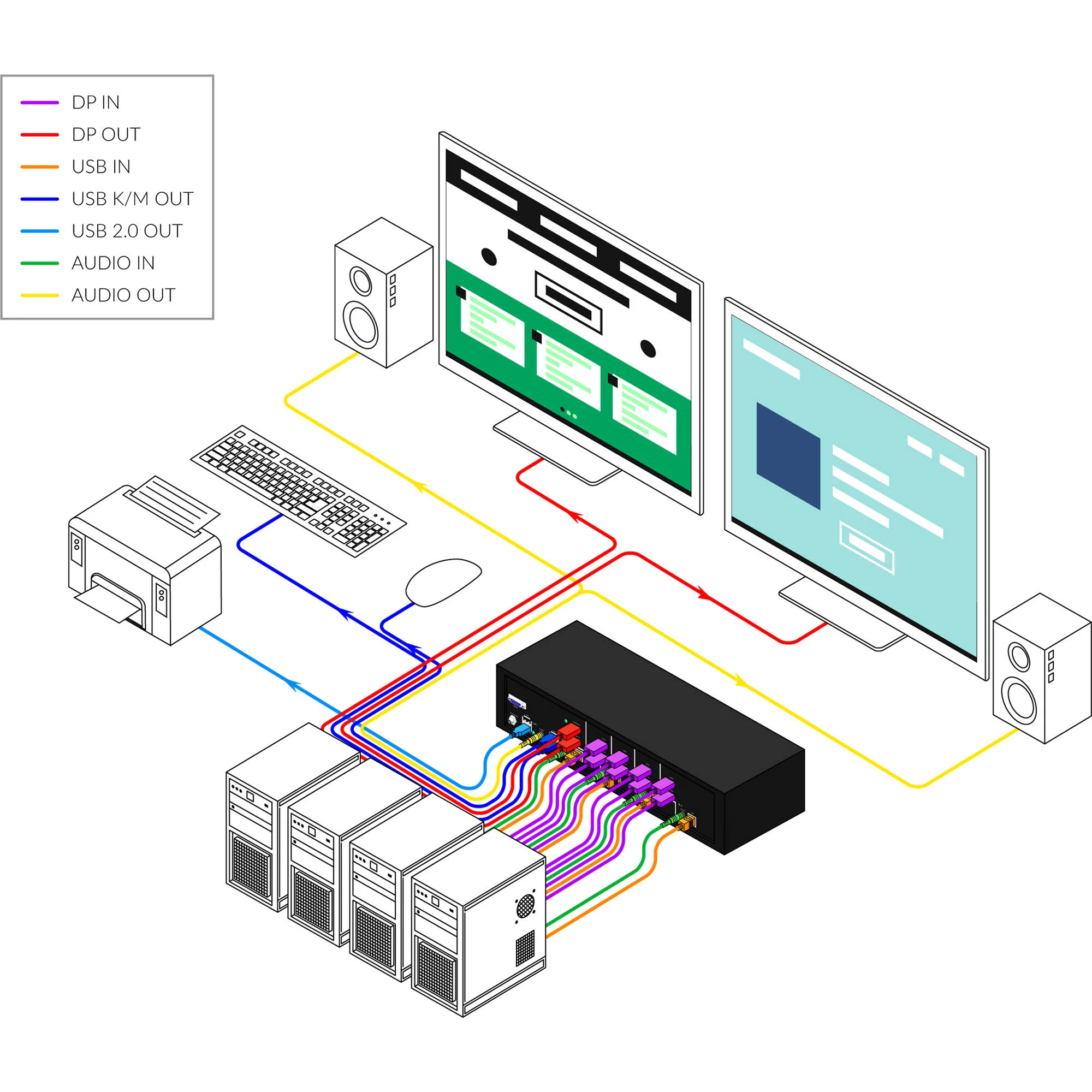

    Smart-AVI 4-Port Dual-Head DisplayPort KVM Switch with USB 2.0 and Audio - Image 4
