Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45
HomeStore

Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45

Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45

Sescom SES-4X1F3M-CATBX Overview

  • 1Description
  • 2Transmission Distance
  • 3Passive Extender
  • 4Low-Profile Design

Send up to four channels of analog or digital audio, AES/EBU, or DMX over cat 5/6/7 cable using the SES-4X1F3M-CATBX 4-Channel Passive Audio Extender from Sescom. This compact unit with one RJ45, one female XLR, and three male XLR connectors enables you to replace bulky multichannel audio snakes with a single, low-profile cable.

Note:
This unit supports 48V phantom power only when paired with shielded cable.
Transmission Distance
  • Digital audio 48 kHz, 24-bit AES/EBU: 1000'
  • Analog balance, line-level audio: 2000'
  • Mic level audio: 2000'
Passive Extender
This passive extender is compatible with analog or digital mixers, consoles, breakouts boxes, and more and it supports balanced mic level, AES/EBU digital, and DMX signals
Low-Profile Design
Eliminates the bulk of multichannel snakes by consolidating four cables into a single cat 5/5e/6/7 cable
    Table of Contents
    • Description
    • Transmission Distance
    • Passive Extender
    • Low-Profile Design

    Sescom SES-4X1F3M-CATBX Specs

    Interfaces
    Inputs 1 x XLR 3-Pin Female
    3 x XLR 3-Pin Male
    Outputs 1 x Ethercon Female
    Transmission
    Audio Format AES/EBU:
    Analog:
    DMX:
    Supported Cable Types Cat 5/5e/6/7
    Packaging Info
    Package Weight 0.92 lb
    Box Dimensions (LxWxH) 6.95 x 4.6 x 3.45"

    Sescom SES-4X1F3M-CATBX Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $336.81
    Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45—
    $336.81

    More Images

    Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45 - Image 2

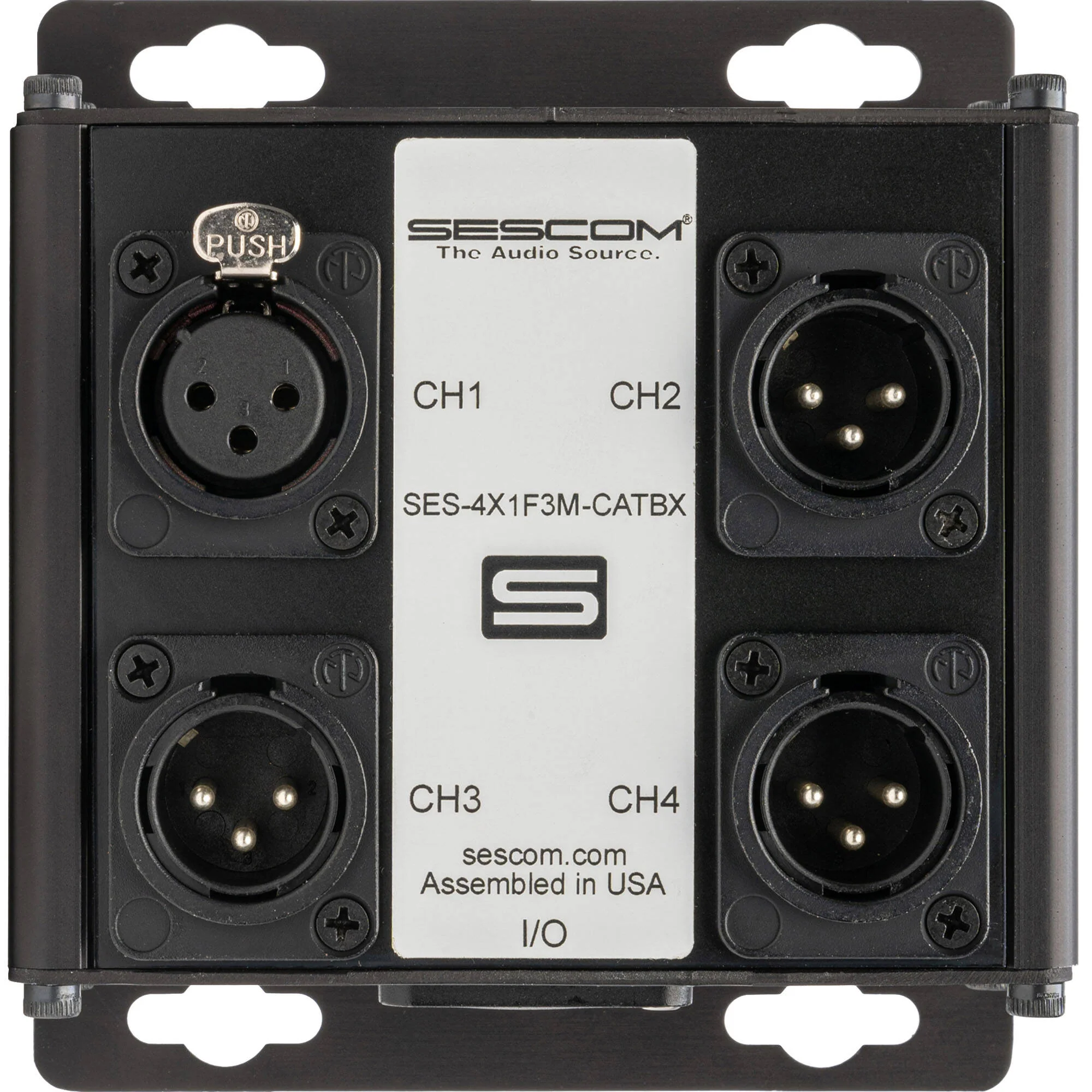

    Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45 - Image 3

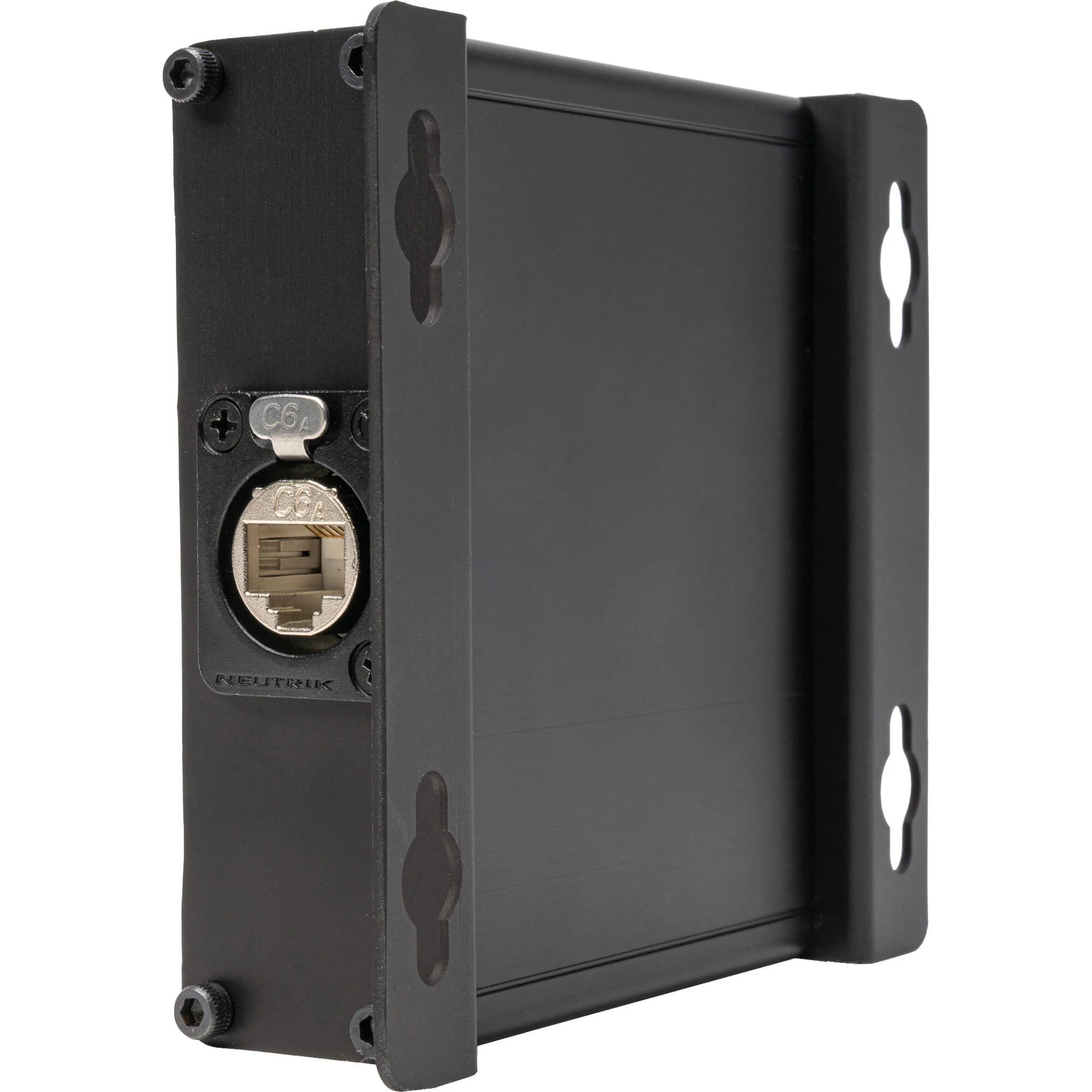

    Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45 - Image 4

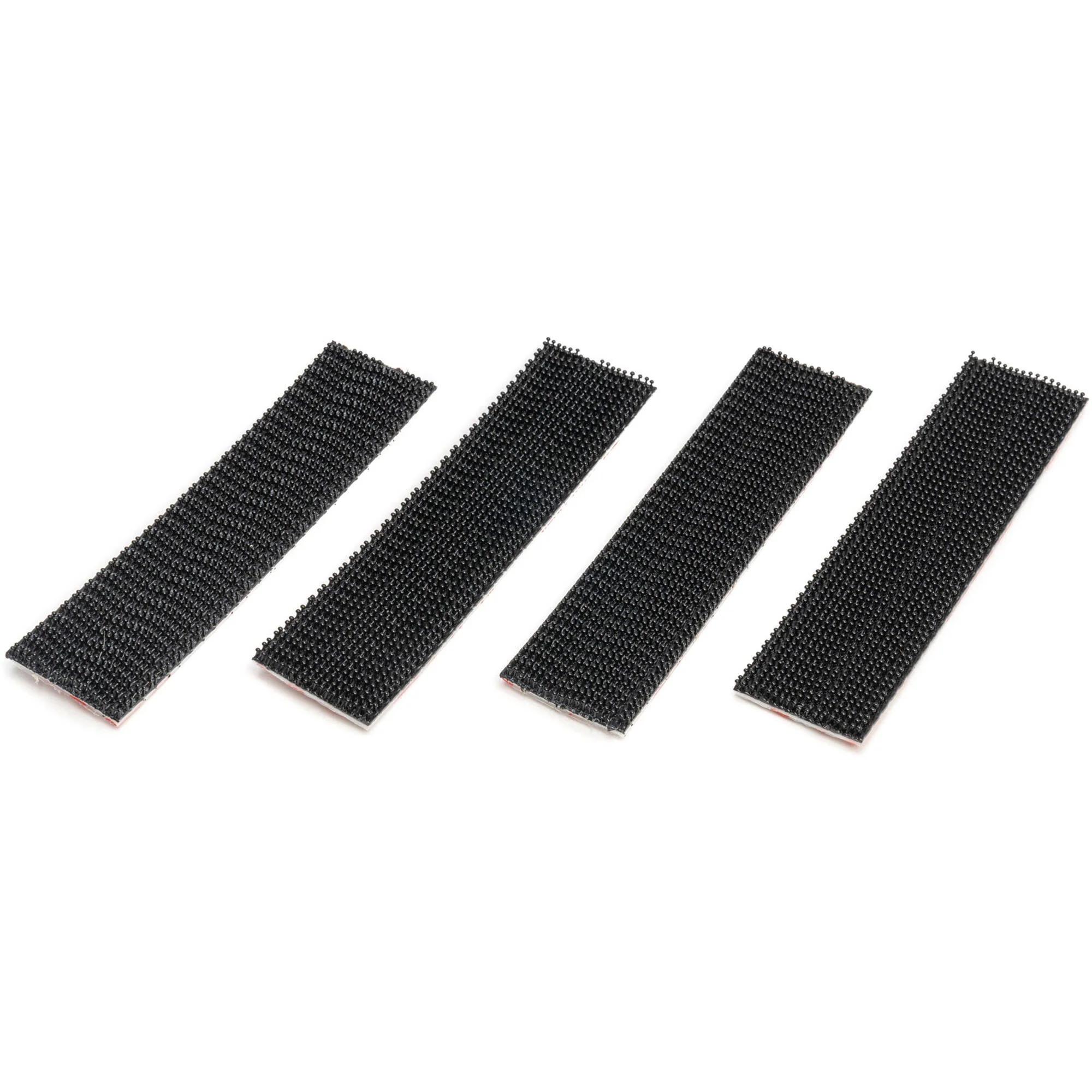

    Sescom SES-4X1F3M-CATBX 4-Channel Passive Audio Extender Cat 5/6/7, 1 x (F) XLR, 3 x (M) XLR to RJ45 - Image 5
