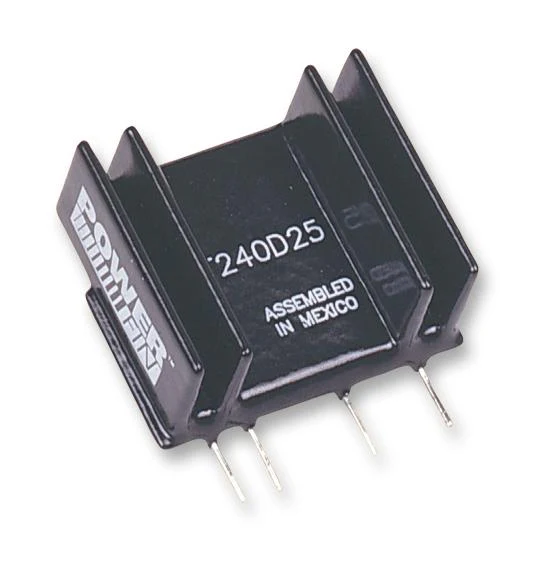

SENSATA/CRYDOM PF240D25R PF240D25R Solid State Relay Powerfin / PF Series SIP SPST-NO 25 A 280 Vrms PCB Through Hole

The PF240D25R is a 1-phase PCB-mount SIP Solid State Relay with thermally conductive epoxy encapsulation. The PF series solid state relay features SCR output for heavy industrial loads and random turn-on switching mode.

• DC control input
• Normally open output
• 600Vpk Transient overvoltage
• 0.1mA RMS Maximum off-state leakage current at rated voltage
• 0.06ARMS Minimum load current
• 250Apk Maximum surge current (16.6ms)
• 1.6Vpk Maximum on-state voltage drop at rated current
• 0.5 Minimum power factor (with maximum load)
• 3VDC Minimum turn-on voltage
• 1VDC Minimum turn-off voltage
• 4000VRMS Dielectric strength (input/output/base (50/60Hz))
• 8pF Maximum capacitance (input/output)

Applications

Industrial

Warnings Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.

Other details

Brand	SENSATA/CRYDOM
Part Number	PF240D25R
Quantity	Each
Technical Data Sheet EN
Drawing EN
