Seeed Studio 101020018 Sensor Module Grove Water 5 V Supply

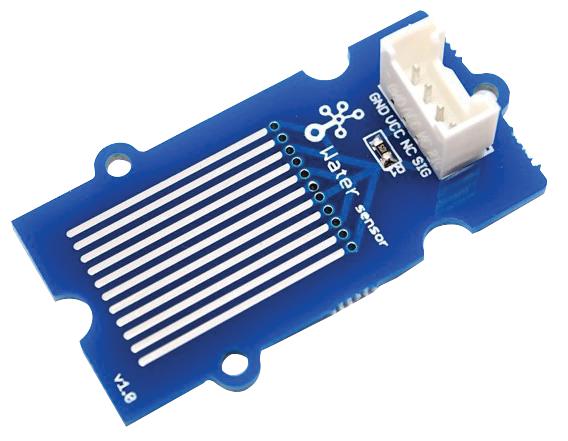

Grove - water sensor detects the presence of water using exposed PCB traces. The sensor is made up of interlaced traces of Ground and Sensor signals. The sensor traces are weakly pulled up using 1 MR resistor. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the ground trace. This circuit will work with digital I/O pins of Arduino or you can use it with the analogue pins to detect the amount of water induced contact between the grounded and sensor traces.

• Grove compatible interface
• Low power consumption
• High sensitivity
• Dimension is 40mm x 20mm x 12mm
• Concise design 5V working voltage

Contents

1 x grove - water sensor, 1 x grove cable.

Other details

Brand	SEEED STUDIO
Part Number	101020018
Quantity	Each
Manufacturer Product Page EN
