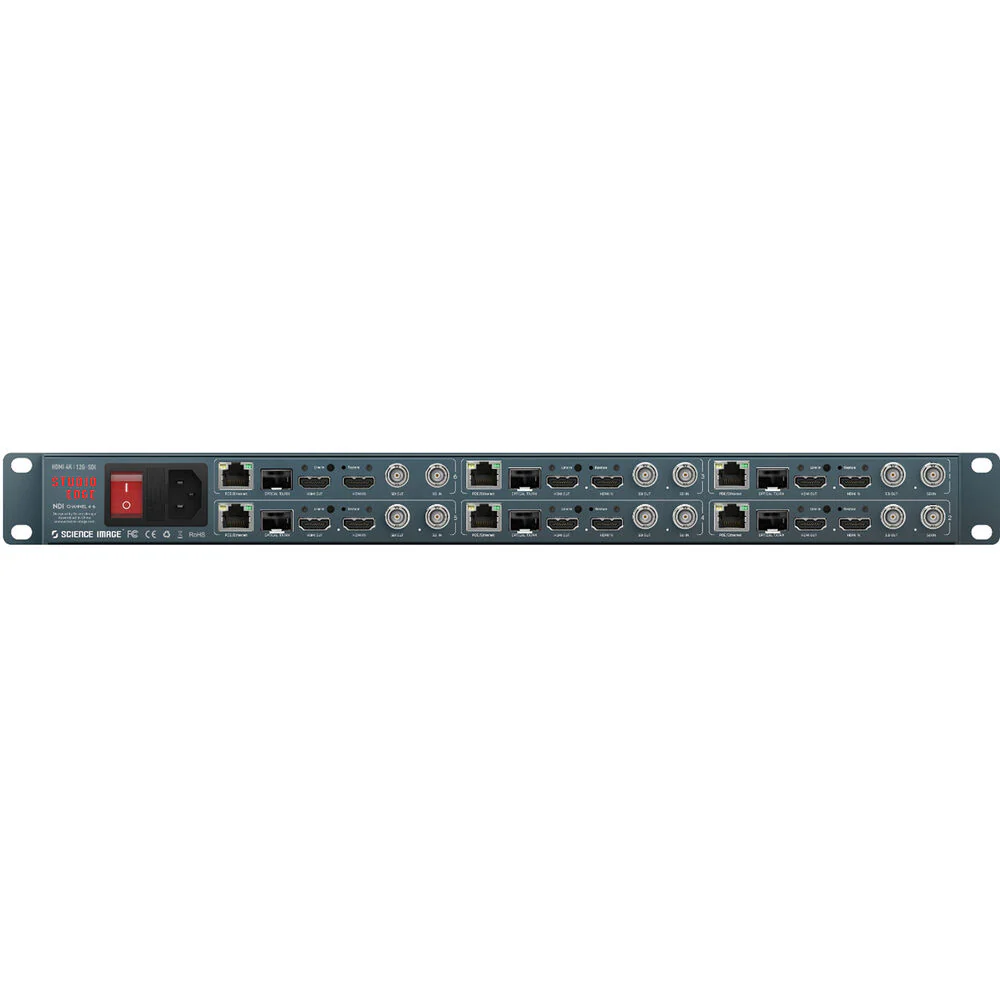

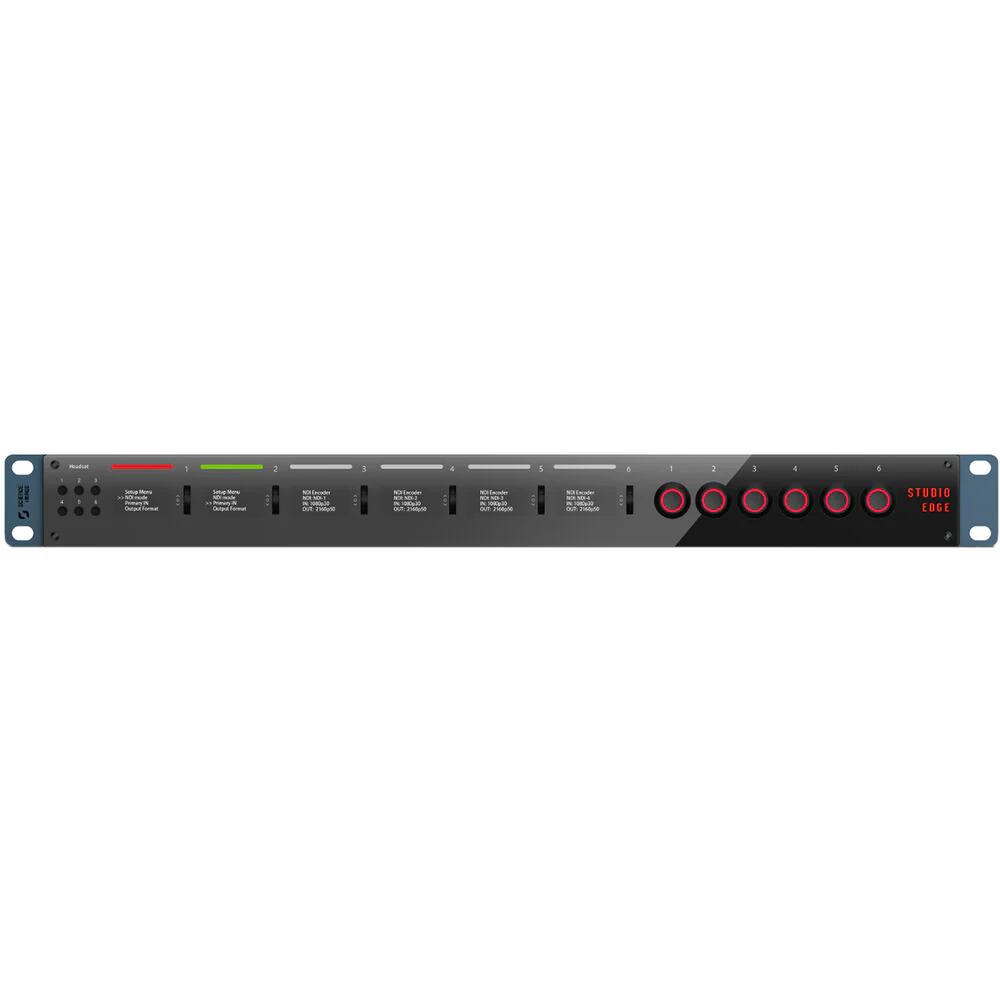

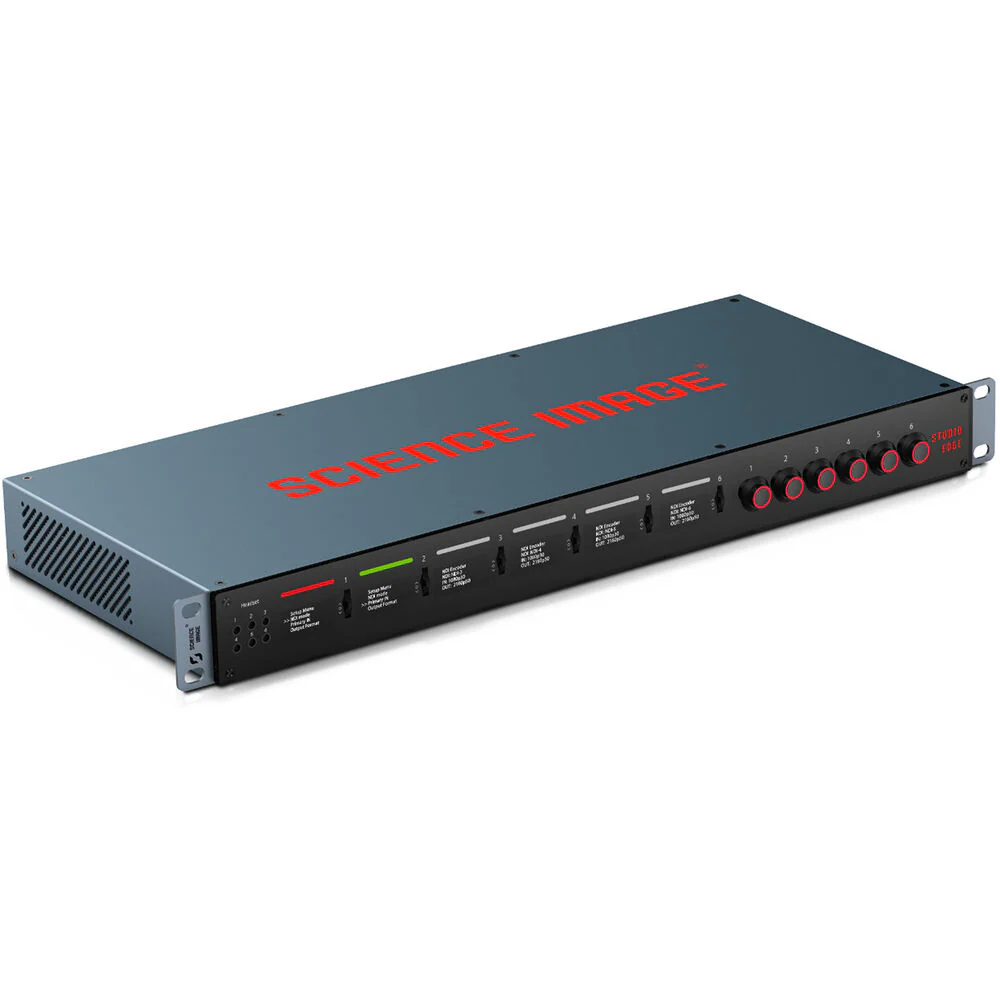

SCIENCE IMAGE Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)
SCIENCE IMAGE Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)
SCIENCE IMAGE Studio Edge 6-Channel Full NDI ... Overview
The Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter from SCIENCE IMAGE is a compact 1 RU short-depth chassis, featuring high-density, multi-channel NDI conversion capabilities. Ideal for studios requiring efficient management of numerous NDI sources and destinations within a single device, its blend of connectivity and performance is impressive. The Studio Edge series doubles as a display management system for digital signage, leveraging its integrated fiber connections to transmit video and audio over extended distances without signal degradation.
Driven by the same high-bandwidth NDI encoding and decoding engine found in the NDI Studio 4K.SH and STUDIO 2 standalone converters, the Studio Edge series offers identical connectivity within a rack-mountable chassis, powered by a single power supply. Each channel boasts independent power switches, LED displays, tally lights, video inputs and outputs, network connections, and audio ports. The unit supports VISCA and Pelco P and D support for use with compatible, separately available PTZ cameras.
- 6-channel rackmount 4K Full NDI converter with fiber TX/RX and analog audio in/out
- Bidirectional high-bandwidth NDI encoder and decoder
- Up/down/cross conversion of 27 formats
- 6 x 12G-SDI inputs and outputs, 6 x HDMI 2.0 inputs and outputs, handling signals up to 2160p60
- 6 x 3.5mm stereo headphone outputs, 6 x 3.5mm stereo line-in inputs
- 6 x 1.3? OLED screen with status, video format, IP address, and more
- 6 x scroll wheel button for direct menu operation as well as web UI control
- Audio embed/de-embed from stream, two-way intercom per channel
- AC power Inputs with 6 x LED illuminated power buttons
Items Included
- SCIENCE IMAGE Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
SCIENCE IMAGE Studio Edge 6-Channel Full NDI ... Specs
| Video I/O |
Input
6x BNC (12G-SDI) Female 6x HDMI 2.0 Female Output 6x BNC (12G-SDI) Female 6x HDMI 2.0 Female Input/Output 6x opticalCON |
| Audio I/O |
Input
6x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) 6x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Video Resolution |
BNC Input/Output
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output
|
| Video I/O |
Input
6x BNC (12G-SDI) Female 6x HDMI 2.0 Female Output 6x BNC (12G-SDI) Female 6x HDMI 2.0 Female Input/Output 6x opticalCON |
| Audio I/O |
Input
6x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) 6x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Other I/O |
Input/Output
6x RJ45 (LAN) |
| Expansion Slots |
No
|
| Video Resolution |
BNC Input/Output
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output
|
| Embedded Audio |
Fiber/HDMI/SDI
|
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2082-1/ST-2082-10
|
| Transport Protocols |
NDI/HX, NDI/HX2, NDI/HX3
|
| Display |
1.3" OLED
|
| Power I/O |
1x IEC C13 Input
|
| Rack Form Factor |
1 U
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
20 x 12 x 6" / 50.8 x 30.5 x 15.2 cm
|
| Weight |
8 lb / 3.6 kg
|
| Package Weight |
10.365 lb
|
| Box Dimensions (LxWxH) |
20.7 x 9.8 x 4.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $12,074.63
-70%$12,074.63
$3,622.39More Images
