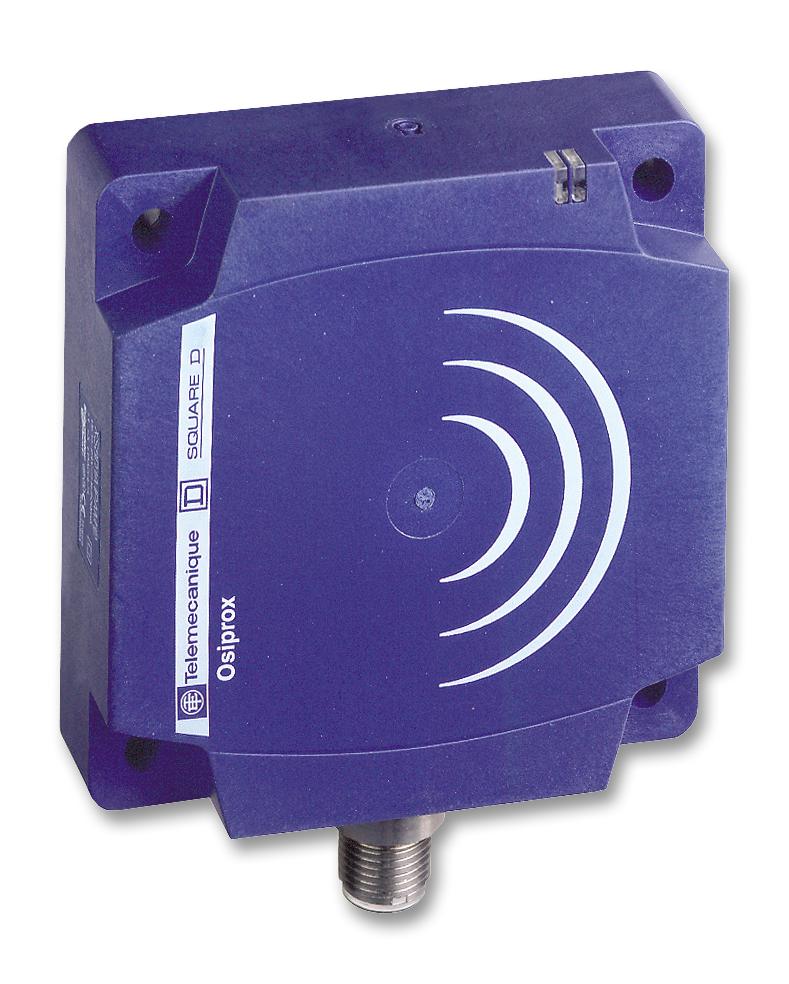

Schneider Electric XS8D1A1PAM12 Inductive Proximity Sensor Square Osisense XS 60 mm PNP 12 V to 24

The OsiSense XS 8D series 60mm diameter 3-wire DC solid-state output plain Inductive Proximity Sensor that is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. Composition of an inductive proximity sensor with detection of a metal object. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open or normally closed output signal is produced. It enables the detection, without physical contact of metal objects. Telemecanique inductive proximity sensor incorporates an output state LED indicator. The flush mountable sensor using teach mode is fitted with a green LED that indicates power-ON and also assists the user during setting-up (teach mode).

• High operating rates
• Fast response
• Excellent resistance to industrial environments (robust products, fully encapsulated in resin)
• No moving parts, therefore service life of sensor not related to number of operating cycles

Applications

Sensing & Instrumentation, Automation & Process Control, Industrial, Robotics

Other details

Brand	SCHNEIDER ELECTRIC
Part Number	XS8D1A1PAM12
Quantity	Each
Technical Data Sheet EN
Technical Data Sheet EN
