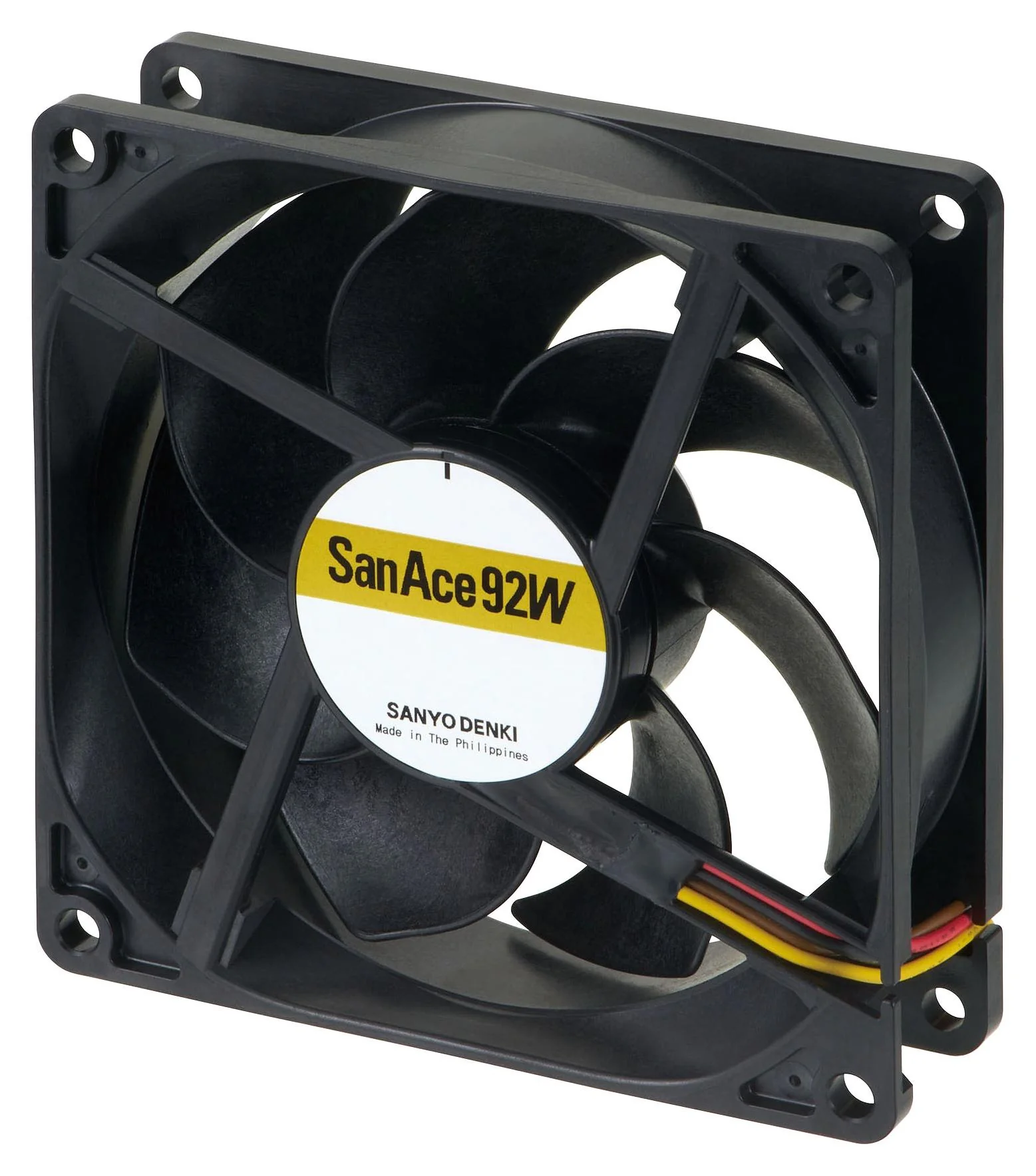

Sanyo Denki 9WPA0924P4G001 DC Axial Fan 24 V Square 92 mm 25 Ball Bearing 86.5 CFM

San Ace 92W 9WPA type splash proof fan. This fan delivers a maximum airflow of 2.45m3/min and a maximum static pressure of 126Pa. The PWM control function enables the control of fan speed, contributing to lowering noise and improving energy efficiency of devices.

• High airflow and high static pressure
• IP68-rated, water and dust protection
• Maintains stable operation even in harsh environments
• 24V rated voltage, 21.6V to 26.4V operating voltage range
• Operating temperature range from -20 to +70°C
• Expected life of 40000h/60°C (70000/40°C)
• Plastic (flammability: UL 94V-0) frame, plastic (flammability: UL 94V-0) impeller
• 100% PWM duty cycle, 0.25A rated current, 6W rated input
• 5700min-1 rated speed, 47 SPL[dB(A)], size is 92 x 92 x 25mm
• UL, CSA and EN standards

Other details

Brand	SANYO DENKI
Part Number	9WPA0924P4G001
Quantity	Each
Technical Data Sheet EN
