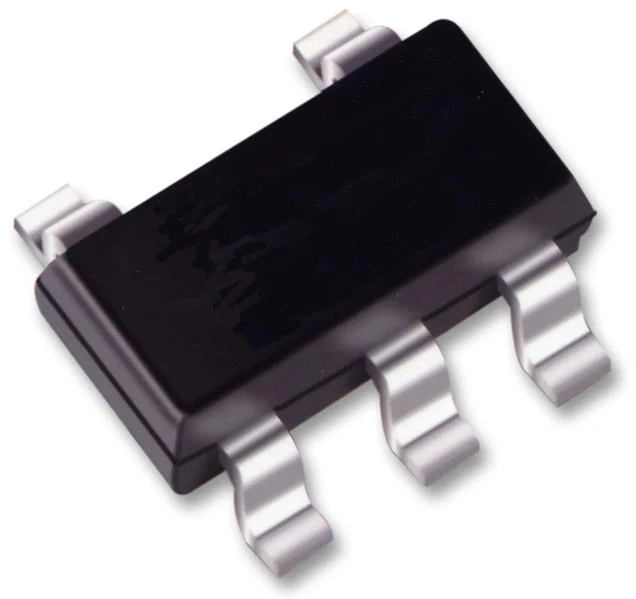

RENESAS RAA2118054GP3#JA0 Isolated DC-to-DC Converter, Buck-Step Down, 7 to 80 V Input, 5 V/300 mA Output, 125 °C, TSOT-23-5
RENESAS RAA2118054GP3#JA0 Isolated DC-to-DC Converter, Buck-Step Down, 7 to 80 V Input, 5 V/300 mA Output, 125 °C, TSOT-23-5
Product Overview
RAA2118054GP3#JA0 is an easy-to-use, ultra-low quiescent current (IQ) buck regulator with a wide input voltage range of 7V to 80V and up to 300mA output current. This RAA211805 output voltage is 5V. This device offers comprehensive protections, including VIN UVLO, VOUT OVP, overcurrent, and over-temperature protections. It is used in applications such as general purpose or LDO replacement, industrial power supplies, embedded systems and I/O supplies, E-bikes, power tools, and home/industrial automation.
- Input supply range from 7V to 80V
- VIN quiescent current is 5.5µA typ at (EN = VIN = 80V, VOUT = 3.3V or 5V, no load operation)
- Shutdown current is 0.3µA typical at (EN = 0V, VIN = 24, no switching)
- Minimum on-time is 75ns typical at (VIN = 20V, TA = +25°C)
- Pre-bias, monotonic, and smooth start-up
- Accurate EN threshold, VIN undervoltage hysteresis is 550mV typical at (TA = +25°C)
- On resistance is 2.9 ohm typical at (VIN = 12V, TA = +25°C)
- Current limit is 0.75A typical at (VIN = 12V, TA = +25°C)
- Operating temperature range from -40°C to +125°C
- TSOT-23 package
Product details
Other details
| Brand | RENESAS |
| Part Number | RAA2118054GP3#JA0 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
