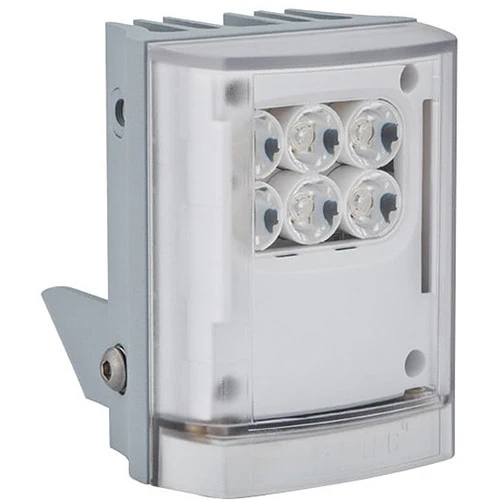

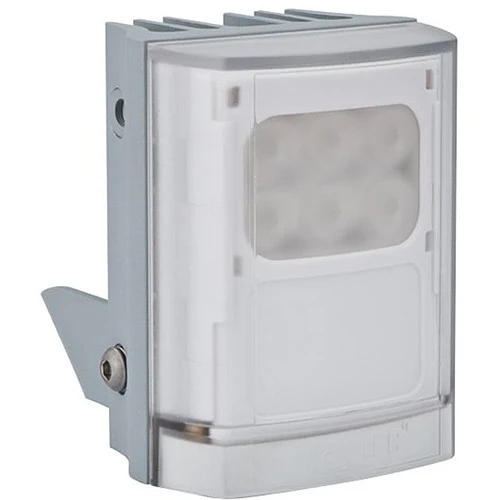

Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)
The silver VARIO2 w2 Short Range White Light Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve an operating range of up to 197' from a smaller platform. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. With the optional hand-held remote control, the VARIO2 makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system

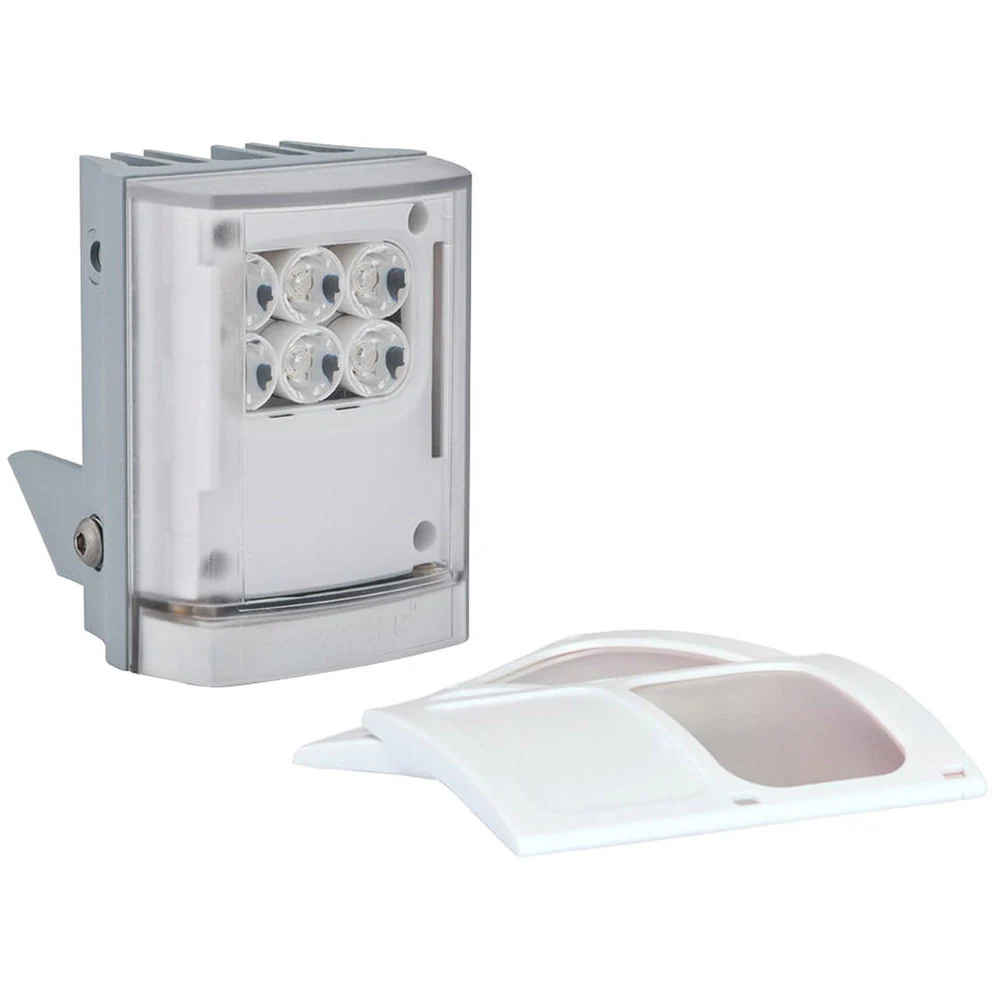

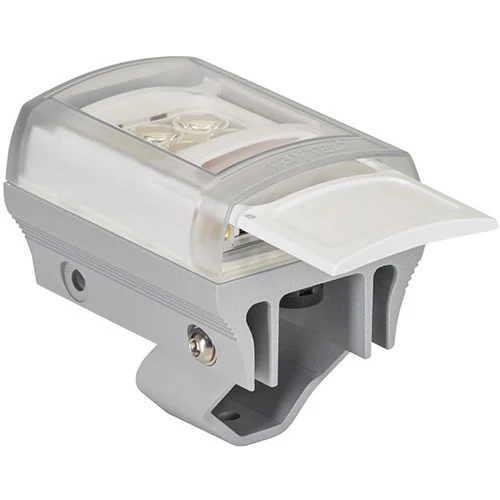

- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features, such as power adjustment, telemetry control, and a timer function enhance the potential for energy savings
- Supports power adjustments from 20 to 100%
- Built-in photocell for automatic on/off operation
In the Box
Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)
- 10° x 10° Lens
- 60° x 25° Lens
- U-Bracket
- Limited 5-Year Warranty
| Maximum Operating Distance | 197' (60 m) |
| Input | 12/24 VAC/DC |
| Voltage | 13.5 V current controlled |
| Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) |
| Beam Angle | 10 x 10°: 197' (60 m) 35 x 10° (Fitted as Standard): 131' (40 m) 60 x 25°: 82' (25 m) 80 x 30° (Optional): 66' (20 m) 120 x 50° (Optional): 39' (12 m) |
| Consumption | 11 W maximum |
| LED | 6 x Platinum Elite SMT LEDs |
| Wavelength | White light |
| Color Temperature | 6500K (cool white) |
| Color Reproduction | Index: 68-72 |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F (-50 to 50°C) |
| Cable Length | 8.2' (2.5 m) |
| Dimensions | 3 x 4 x 2.5" (7.5 x 10 x 6.4 cm) approximately |
| Weight | 1.3 lb (0.6 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 10.0 x 6.0 x 5.0" |
$416.84
Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)—
$416.84
More Images
Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)
The silver VARIO2 w2 Short Range White Light Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve an operating range of up to 197' from a smaller platform. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. With the optional hand-held remote control, the VARIO2 makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system
- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features, such as power adjustment, telemetry control, and a timer function enhance the potential for energy savings
- Supports power adjustments from 20 to 100%
- Built-in photocell for automatic on/off operation
In the Box
Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)
- 10° x 10° Lens
- 60° x 25° Lens
- U-Bracket
- Limited 5-Year Warranty
| Maximum Operating Distance | 197' (60 m) |
| Input | 12/24 VAC/DC |
| Voltage | 13.5 V current controlled |
| Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) |
| Beam Angle | 10 x 10°: 197' (60 m) 35 x 10° (Fitted as Standard): 131' (40 m) 60 x 25°: 82' (25 m) 80 x 30° (Optional): 66' (20 m) 120 x 50° (Optional): 39' (12 m) |
| Consumption | 11 W maximum |
| LED | 6 x Platinum Elite SMT LEDs |
| Wavelength | White light |
| Color Temperature | 6500K (cool white) |
| Color Reproduction | Index: 68-72 |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F (-50 to 50°C) |
| Cable Length | 8.2' (2.5 m) |
| Dimensions | 3 x 4 x 2.5" (7.5 x 10 x 6.4 cm) approximately |
| Weight | 1.3 lb (0.6 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 10.0 x 6.0 x 5.0" |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The silver VARIO2 w2 Short Range White Light Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve an operating range of up to 197' from a smaller platform. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. With the optional hand-held remote control, the VARIO2 makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system
- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features, such as power adjustment, telemetry control, and a timer function enhance the potential for energy savings
- Supports power adjustments from 20 to 100%
- Built-in photocell for automatic on/off operation
In the Box
Raytec VARIO2 w2 Short Range White Light Illuminator (Silver)
- 10° x 10° Lens
- 60° x 25° Lens
- U-Bracket
- Limited 5-Year Warranty
| Maximum Operating Distance | 197' (60 m) |
| Input | 12/24 VAC/DC |
| Voltage | 13.5 V current controlled |
| Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) |
| Beam Angle | 10 x 10°: 197' (60 m) 35 x 10° (Fitted as Standard): 131' (40 m) 60 x 25°: 82' (25 m) 80 x 30° (Optional): 66' (20 m) 120 x 50° (Optional): 39' (12 m) |
| Consumption | 11 W maximum |
| LED | 6 x Platinum Elite SMT LEDs |
| Wavelength | White light |
| Color Temperature | 6500K (cool white) |
| Color Reproduction | Index: 68-72 |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F (-50 to 50°C) |
| Cable Length | 8.2' (2.5 m) |
| Dimensions | 3 x 4 x 2.5" (7.5 x 10 x 6.4 cm) approximately |
| Weight | 1.3 lb (0.6 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 10.0 x 6.0 x 5.0" |
