RAYCHEM - TE CONNECTIVITY HRSR-060FR-10 Heat Shrink Tubing, High Ratio Semirigid, 15.3 mm, 0.602 ", 5.6:1, Black, 10 ", 254 mm
RAYCHEM - TE CONNECTIVITY HRSR-060FR-10 Heat Shrink Tubing, High Ratio Semirigid, 15.3 mm, 0.602 ", 5.6:1, Black, 10 ", 254 mm

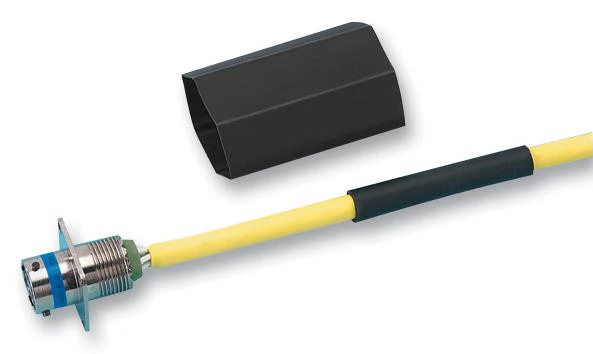

The HRSR-060FR-10 is a black flame-retardant Heat Shrink Tubing made of semi-rigid irradiated modified polyolefin and provides excellent insulation and abrasion protection. The tubing with expansion ratios as high as 5.6:1, is designed to accommodate large size differences between cables and cable connectors and back shells, thus simplifying repair of damaged cable. High-ratio tubing is available in semi-rigid flame-retardant (SR), standard (NF) or high-flex flame-retardant (HF) material and with or without factory-applied sealants and adhesives. The waterproofing sealant provides environmental sealing and is watertight in wet and corrosive locations. The thermoplastic adhesive coating offers excellent strain relief and environmental sealing.
- Tubing environmentally seals and protects components and interconnections
- Medium wall provides increased mechanical protection
Applications
Automotive, Safety, Commercial, Consumer Electronics
Product details
| Length - Metric | 254mm |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Shrink Ratio | 5.6:1 |
| I.D. Recovered Max - Imperial | 0.153" |
| I.D. Supplied - Imperial | 0.602" |
| Length - Imperial | 10" |
| I.D. Supplied - Metric | 15.3mm |
| Product Range | - |
| I.D. Recovered Max - Metric | 3.9mm |
| Shrink Tubing / Boot Colour | Black |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | HRSR-060FR-10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
