RASPBERRY-PI SC0875 SC0875 Raspberry Pi Camera Module 3 Wide Noir IMX708 Computers
The latest version of the official Raspberry Pi camera module, the V3 camera provides a 12 Megapixel Sony image sensor with HDR support and rapid autofocus with libcamera compatability. The camera is designed for ease of use while still providing additional features for advanced users. The NoIR Wide model has a wide angle lens (120°) and has no IR filter on the lens, making it perfect for use in low-light environments.
- Sony IMX708 back-illuminated CMOS 12 Megapixel sensor
- HDR mode (up to 3 Megapixel output)
- RAW10 output, capable of 4608x2592 pixel images
- Phase Detection Autofocus (PDAF) system
- Full support for libcamera library, including rapid autofocus feature
- 2 Wire serial communication with support for I2C fast mode and fast-mode plus
- Focal Range: 50mm - �
- Focal Length: 2.75mm
- Folar Ratio: F2.2
- FOV: 102° (Horizontal), 67° (Vertical), 120° (Diagonal)
- 200mm Ribbon cable with 15x1mm FPC connector
- Compatible with all Raspberry Pi models with FPC camera connector
- Dimensions (HxWxD): 12.4x25x24mm

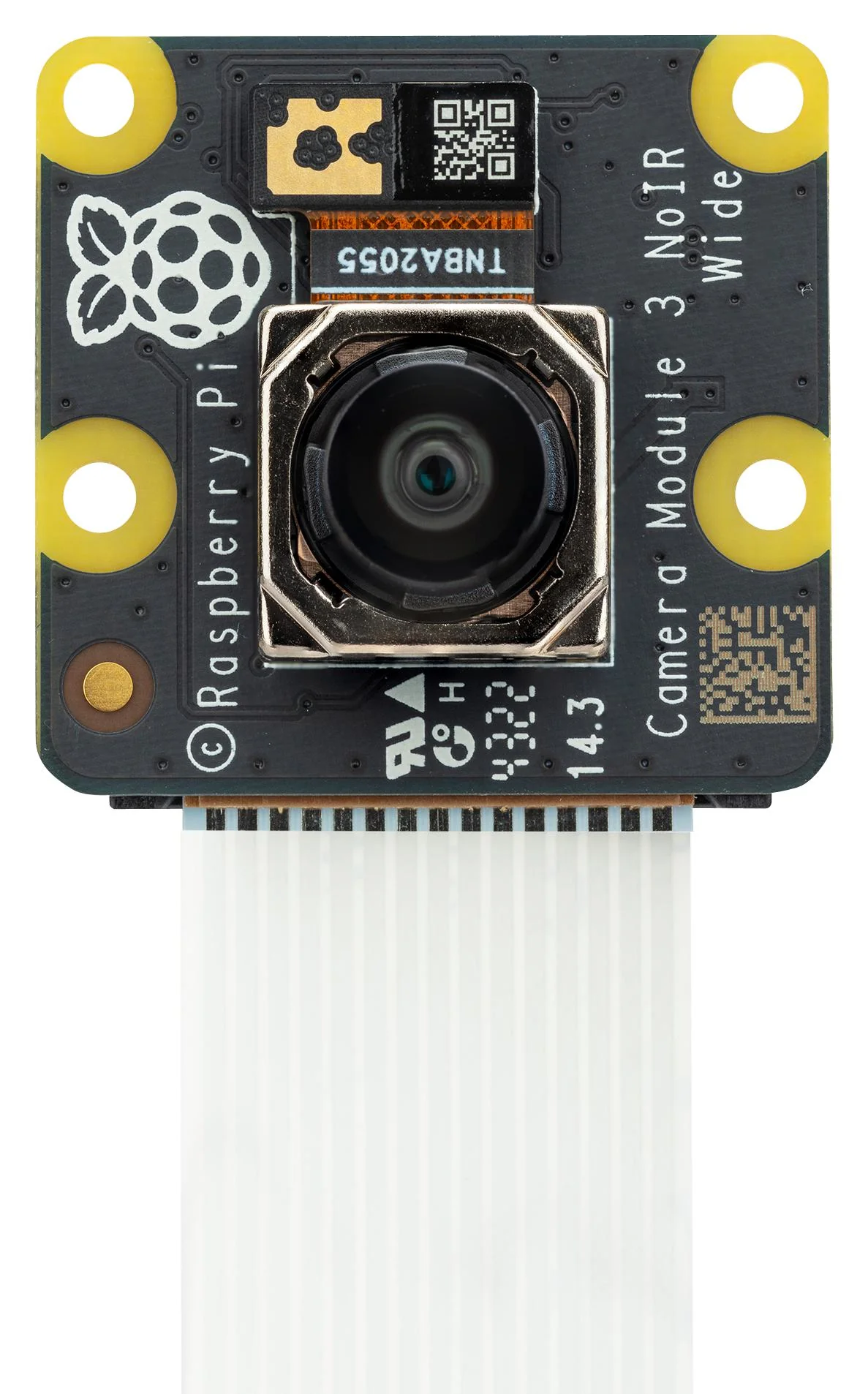

Camera and fitted ribbon cable
Product details
| Silicon Manufacturer | Sony |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | IMX708 |
| Silicon Family Name | - |
| For Use With | Raspberry Pi Computers |
| Kit Contents | Raspberry Pi Camera Module 3 Wide NoIR |
| Product Range | - |
Other details
| Brand | RASPBERRY-PI |
| Part Number | SC0875 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
