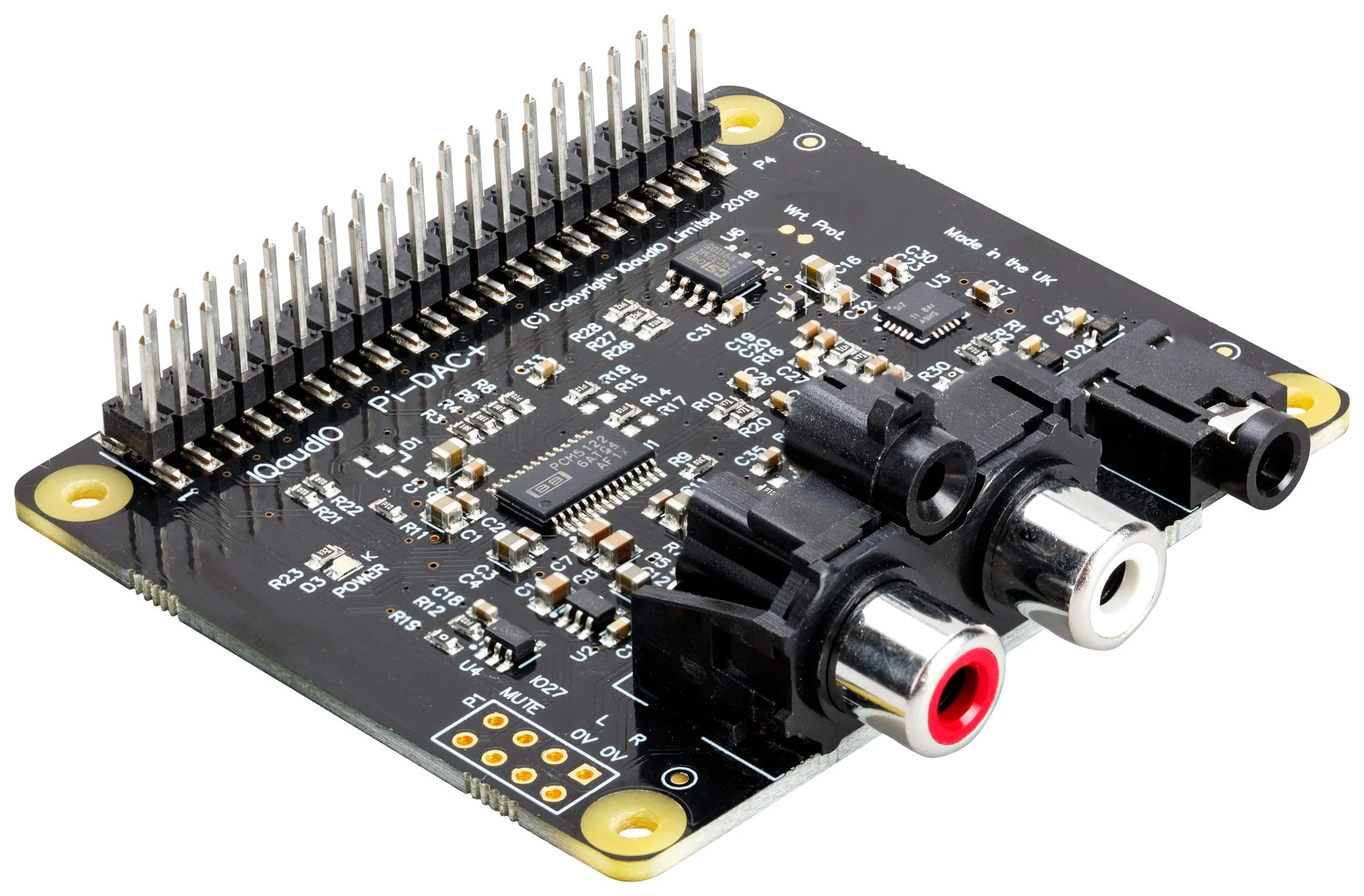

RASPBERRY-PI SC0368 Raspberry Pi DAC+ Board, PCM5122, TPA6133A, Audio HAT, 0 °C to 50 °C 40-Pin GPIO Header
RASPBERRY-PI SC0368 Raspberry Pi DAC+ Board, PCM5122, TPA6133A, Audio HAT, 0 °C to 50 °C 40-Pin GPIO Header
Product Overview
SC0368 is a Raspberry Pi DAC+ high-performance audio HAT compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5122, it delivers stereo analogue audio to a pair of phono (RCA) connectors. It does not require external power, and connects directly to Raspberry Pi�s GPIO header with no need for soldering or cables.
- 58mm?x?65mm form factor
- Power LED
- Analogue audio out (0-2VRMS): panel-mount stereo phono(RCA) socket w/ MUTE signal(headphone detect)
- Dedicated headphone amplifier, output via 3.5mm panel mounted barrel socket
- HAT EEPROM write-enabled
- Operating temperature range from 0°C to 50°C
Product details
Other details
| Brand | RASPBERRY-PI |
| Part Number | SC0368 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
