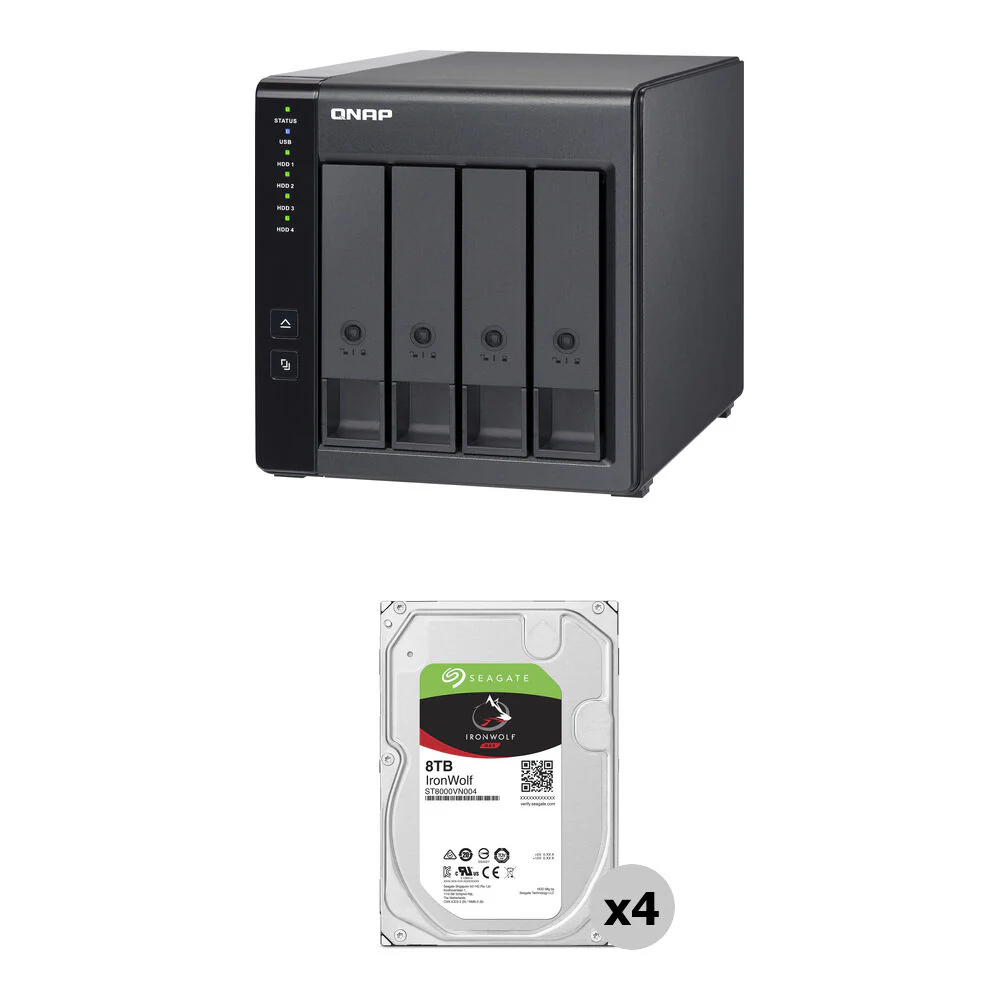

QNAP 32TB TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure Kit with Seagate IronWolf HDDs (4 x 8TB)
QNAP 32TB TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure Kit with Seagate IronWolf HDDs (4 x 8TB)
Kit Contains:
This Kit combines the QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure with four Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a storage capacity of 32TB.

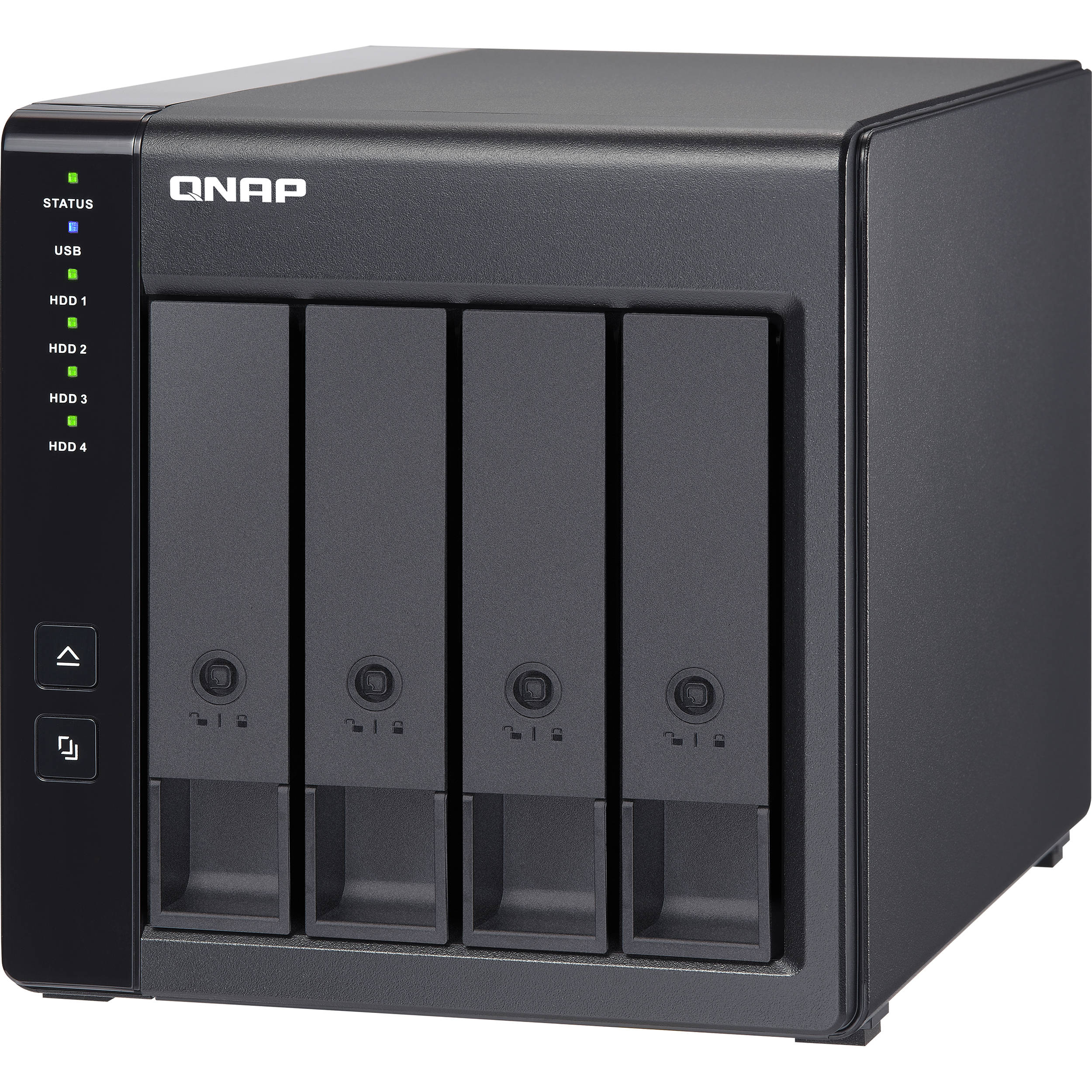

QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure
The TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure from QNAP is unique in that it allows you to expand the storage capacity of not only your QNAP NAS, but also your host Windows, Mac, or Linux system. Use it in this fashion as a DAS (Direct-attached Storage) and access its content simply by connecting it to your system using its integrated USB 3.2 Gen 1 Type-C port and the included USB Type-C to Type-A cable. The TR-004 features four hot-swappable 3.5" SATA drive bays that support 3.5" and 2.5" hard drives, as well as 2.5" solid-state drives. The drive bays can be configured hardware- or software-controlled RAID 0, 1, 5, and 10 modes, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, Individual and JBOD modes are also available. The brings you a reliable and secure storage capacity expansion solution that supports data transfer speeds up to 227 MB/s and keeps cool using a 120mm smart fan.
General Features
Effective Storage Expansion with RAID Support
The TR-004 is an ideal storage expansion solution, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5" SATA drive bays and supporting multiple RAID configurations, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports Various RAID Levels
The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your desired RAID mode: Individual, JBOD, RAID 0, RAID 1/10, or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Individual Mode treats every disk as separate storage, allowing you to independently access each one. In JBOD mode, all disks are recognized as a single drive, which allows maximum storage utilization, but provides no data protection. RAID 0 splits data among the drives and provides the fastest performance, but does not protect data against drive failures. RAID 1/10 uses half the total storage capacity to store data and the other half for 1:1 data redundancy. This provides high data protection at the cost of only being able to use half the installed storage space. RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing. All of these RAID modes are hardware controlled, but there is also a Software Control mode to configure the RAID from your NAS or computer.
Individual Mode treats every disk as separate storage, allowing you to independently access each one. In JBOD mode, all disks are recognized as a single drive, which allows maximum storage utilization, but provides no data protection. RAID 0 splits data among the drives and provides the fastest performance, but does not protect data against drive failures. RAID 1/10 uses half the total storage capacity to store data and the other half for 1:1 data redundancy. This provides high data protection at the cost of only being able to use half the installed storage space. RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing. All of these RAID modes are hardware controlled, but there is also a Software Control mode to configure the RAID from your NAS or computer.
Flexible Storage Configuration and Management
Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.
The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-004. Users can easily configure RAID groups on the TR-004 and quickly obtain the status of RAID performance and health at a glance.
Note: When connecting the TR-004 to a NAS, users can choose to use either the NAS expansion storage mode or the external storage mode.
Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.
The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-004. Users can easily configure RAID groups on the TR-004 and quickly obtain the status of RAID performance and health at a glance.
Note: When connecting the TR-004 to a NAS, users can choose to use either the NAS expansion storage mode or the external storage mode.
Versatile Usage Scenarios to Meet Storage Expansion Needs
The TR-004 meets many storage expansion requirements for home and work use, including expanding the capacity of your NAS, serving as external storage for your NAS, expanding the storage space of your computer, and cross-platform file sharing.
Scenario 1: Expand the Capacity of Your NAS
The TR-004 provides an alternative method for users to expand their NAS storage capacity. By connecting the TR-004 to their NAS and using the Storage & Snapshots Manager, users can easily configure and manage their storage expansion. The TR-004 supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, find files with Qsirch, and organize files with Qfiling.
Scenario 2: External Storage for Your NAS
Instead of using the TR-004 to expand the capacity of your QNAP NAS, you can use it as a complimentary storage unit for backing up or moving data. It also allows you to physically migrate huge data collections that would require significant network bandwidth. While connected to the NAS, you can monitor the health and status of the TR-004 by using the Storage & Snapshots Manager on the NAS.
Scenario 3: Expand the Storage Space of Your Computer
The TR-004 can quickly add storage space to your computer. You can use the DIP switch to configure a hardware RAID mode or manage it by using the QNAP External RAID Manager utility. The health and status of the TR-004 can also be monitored by using the QNAP External RAID Manager utility.
Scenario 4: Cross-Platform File Sharing
From your NAS to Windows, Mac, and Linux computers, the TR-004 is compatible with a wide range of devices. This is good for quickly moving large files between different devices. The TR-004 is even compatible with devices that use the exFAT file system, adding further convenience for accessing and sharing files from a wider range of devices.
Note: To access devices that use the exFAT file system, users must purchase a separate exFAT driver license.
Note: To access devices that use the exFAT file system, users must purchase a separate exFAT driver license.
An Alternative to Conventional NAS Expansion Enclosures
As an external hardware RAID device, the TR-004 operates independently and does not require additional NAS system resources. When compared with the UX-500P expansion enclosure, the TR-004 uses less NAS system resources.
UPC: 885022016358

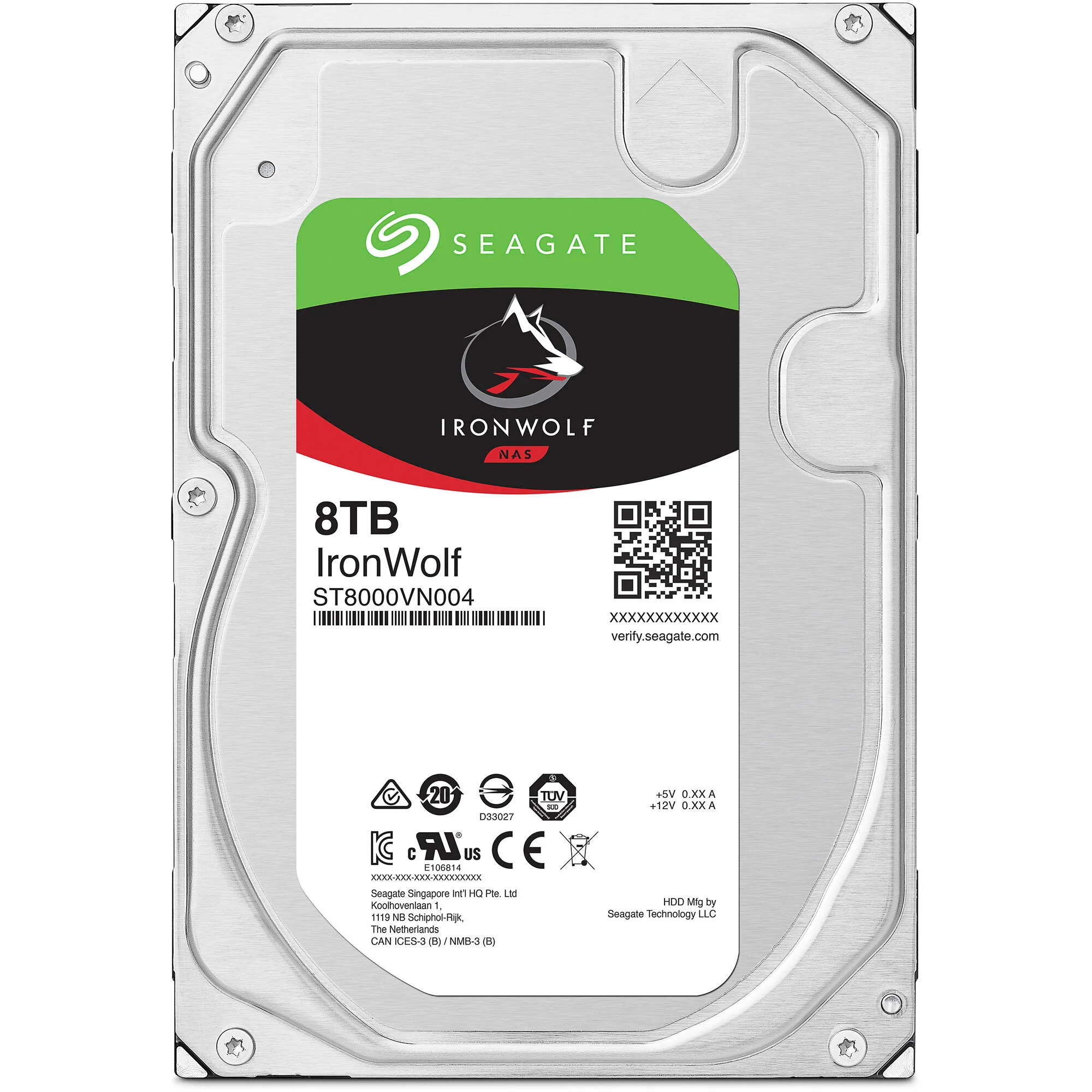

Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
General Features
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Desktop RAIDs and servers
Multimedia server storage
Private cloud
UPC: 763649125069
Items Included
- QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure
- 16 x Screws for 3.5" Drives
- 12 x Screws for 2.5" Drives
- 2 x Drive Tray Keys
- USB 3.0 Type-C to Type-A Cable
- USB Cable Clip
- 65W AC Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
- 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Kit Contains:
![QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure]()
![Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)]()
QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure
Key Specs
| RAID |
Yes: Supported RAID Modes: 0 / 1 / 5 / JBOD
|
| Number of Bays |
4x 2.5"/3.5"
|
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1
|
Drives
| RAID |
Yes: Supported RAID Modes: 0 / 1 / 5 / JBOD
|
General
| Number of Bays |
4x 2.5"/3.5"
|
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1
|
| PCI Expansion |
No
|
Software
| OS Compatibility |
Windows
Ubuntu macOS |
Security
| Encryption |
No
|
| Security Features |
Kensington Security Slot
|
Electrical
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
4.17 W (Standby)
18.21 W (Typical) |
| PSU |
1 x 65 W
|
Physical
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 95% Humidity
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C
|
| Certifications |
No
|
| Cooling |
1x 120 mm Fan
|
| Noise Level |
18.1 dBA
|
| Dimensions |
8.62 x 6.63 x 6.31" / 0.22 x 0.17 x 0.16 m
|
| Weight |
7.0 lb / 3.2 kg
|
Packaging Info
| Package Weight |
6.97 lb
|
| Box Dimensions (LxWxH) |
12.4 x 12.1 x 10"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$2,501.13
