Proaim Jr Pan/Tilt Head with Joystick Control (12 VDC)
Proaim Motorized Pan/Tilt Head Overview
The Proaim Jr Pan/Tilt Head with Joystick Control Is a motorized pan/tilt remote head for jibs and cranes than runs on 12 VDC from either a battery pack or the included AC power supply. It can safely handle camera packages weighing up to 13.2 pounds, with 10 pounds being recommended, and it is capable of panning and tilting throughout 360° in each axis.

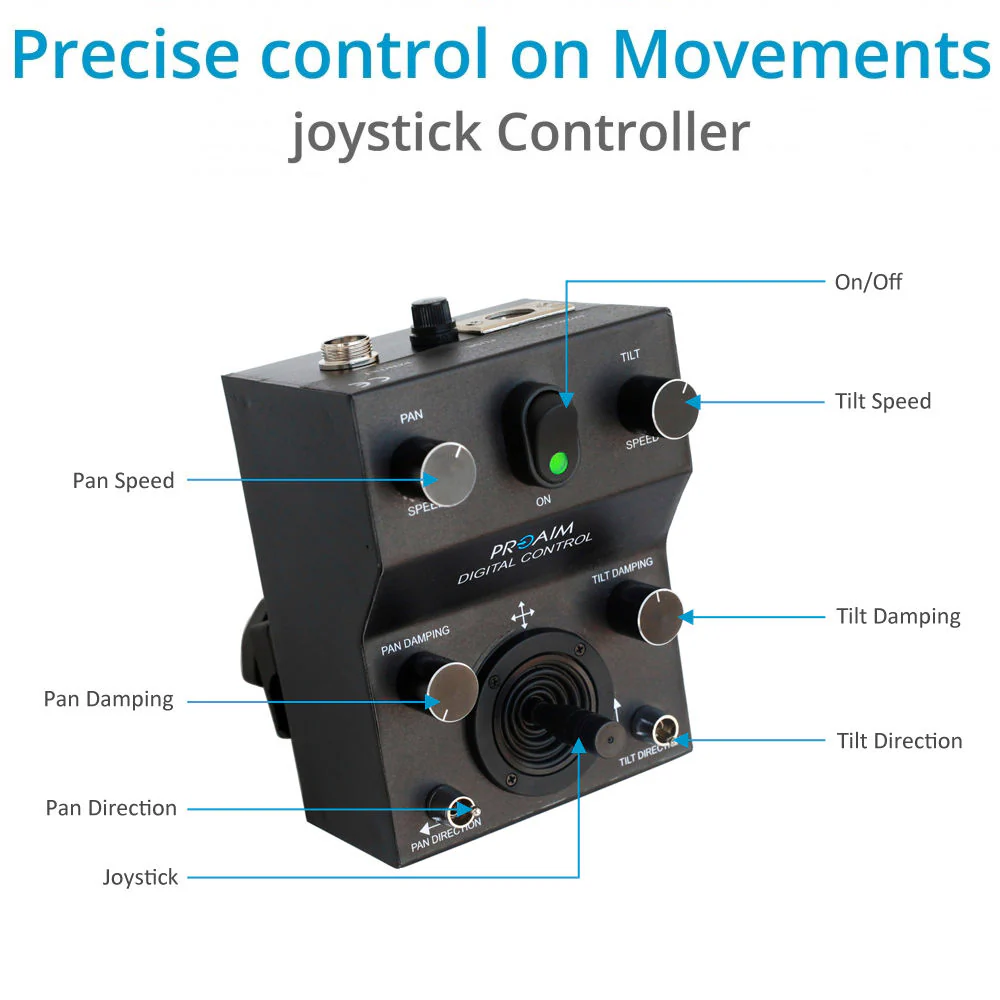

The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and languid pans and tilts. When more alacrity is necessary, the head has a maximum pan/tilt speed of 51° per second. Included with the head are the joystick controller, a short 4-pin XLR power cable for working from batteries (not included), a 12 VDC power supply, and a worldwide AC power converter. The included control cable is 49' long, allowing you to work on a wide variety of jibs and cranes. The head comes in a soft-sided carry bag with custom-cut foam padding.
In the Box
- Proaim Jr Pan/Tilt Head with Joystick Control (12 VDC)
- Joystick Control Unit
- AC Adapter
- US Power Cord
- Worldwide Power Converter
- 4-Pin XLR Cord
- Control Cable (49')
- Mounting Screw
- Accessory Kit
- Carrying Case with Custom-Cut Foam
- Limited 1-Year Warranty
Proaim Motorized Pan/Tilt Head Specs
| Material of Construction | High-Grade Aluminum |

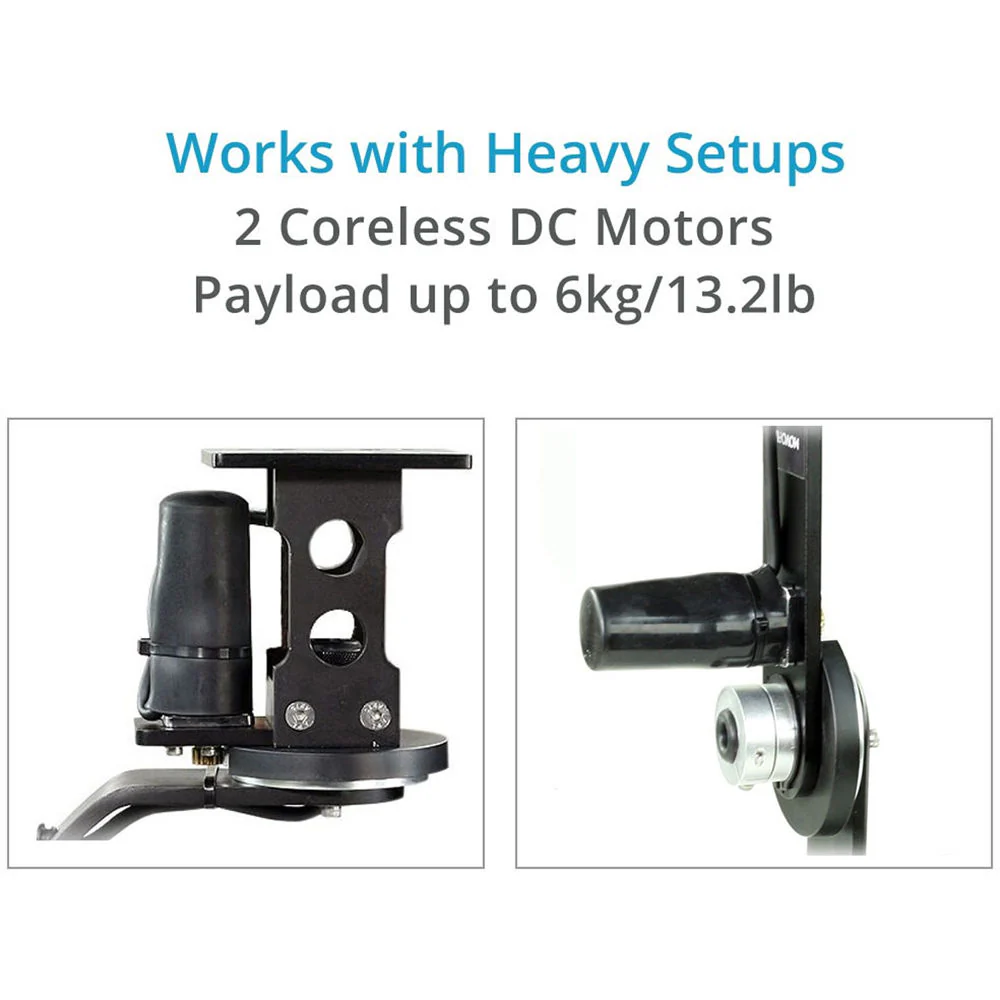

| Load Capacity | 13.2 lb / 6 kg |
| Pan & Tilt | Movement: 360° |
| Speed | Min: 6°/sec Max: 51°/sec |

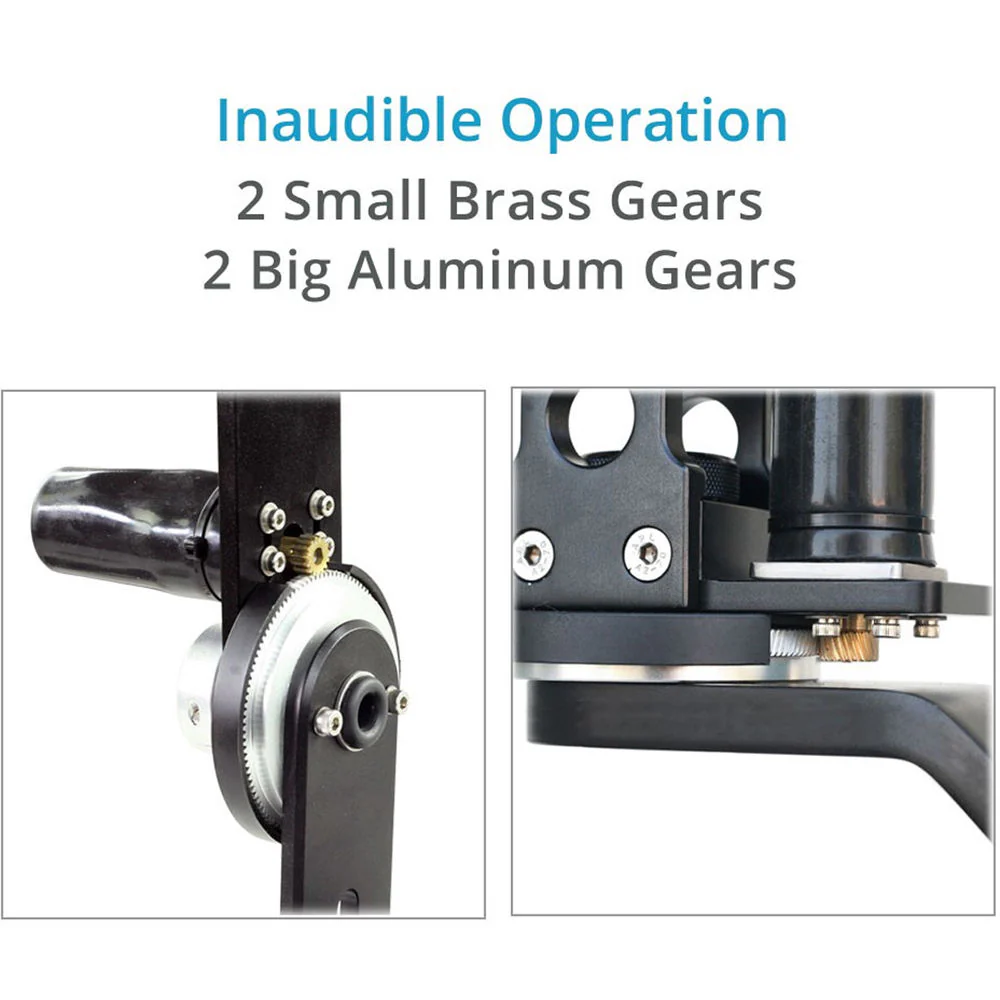

| Gears | Small: 2 x 0.53" / 1.35 cm (Brass) Large: 2 x 3.46" / 8.8 cm |

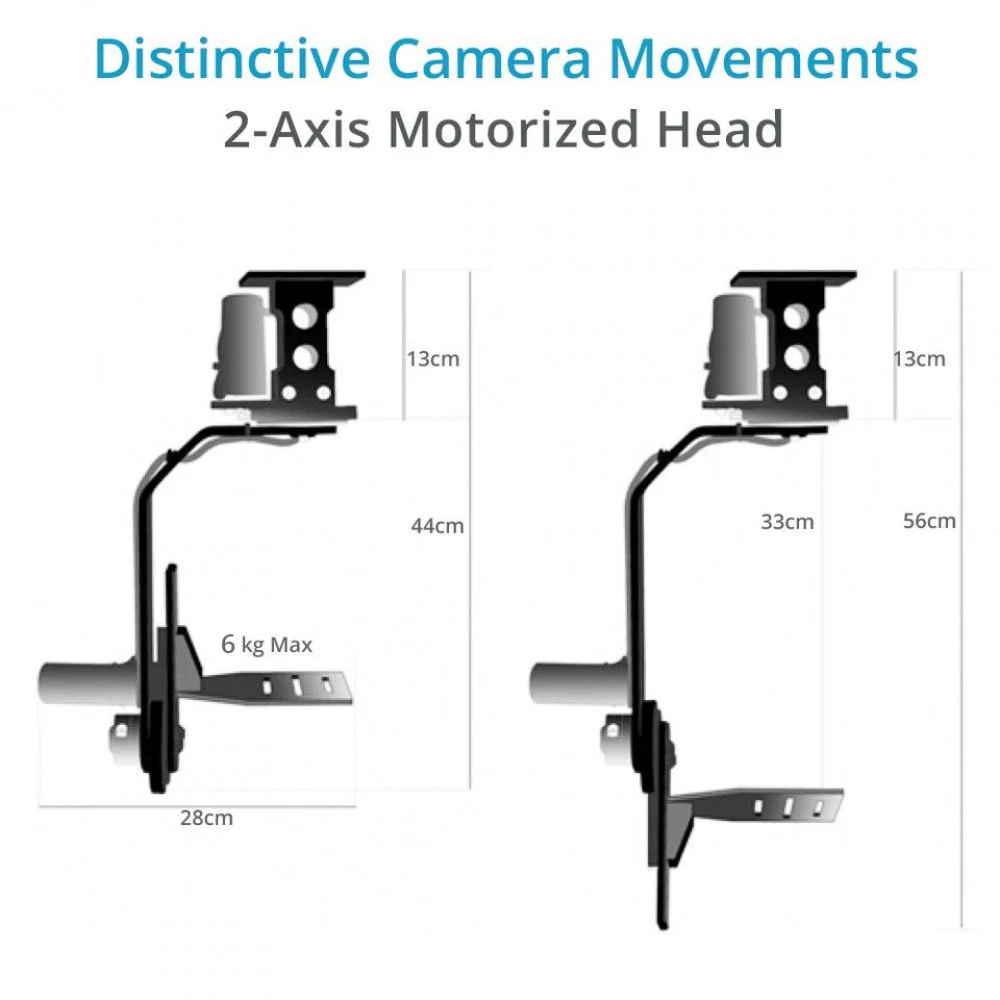

| Adjustments | Minimum Height of Head: 18.5" / 46.99 cm Maximum Height of Head: 22." / 55.88 cm |
| Dimensions | Flight Case: 20.47 x 13.39 x 7.09" / 52 x 34 x 18 cm |
| Weight | Pan/Tilt Head: 5.95 lb / 2.70 kg Joystick: 28.22 oz / 800 g |
| Package Weight | 15 lb |
| Box Dimensions (LxWxH) | 20.75 x 13 x 7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
