Proaim Gimbal Brace Mount for DJI Ronin-S/Zhiyun CRANE-2 & Stabilizer Vest Arm
Proaim P-GMBC-01 Overview

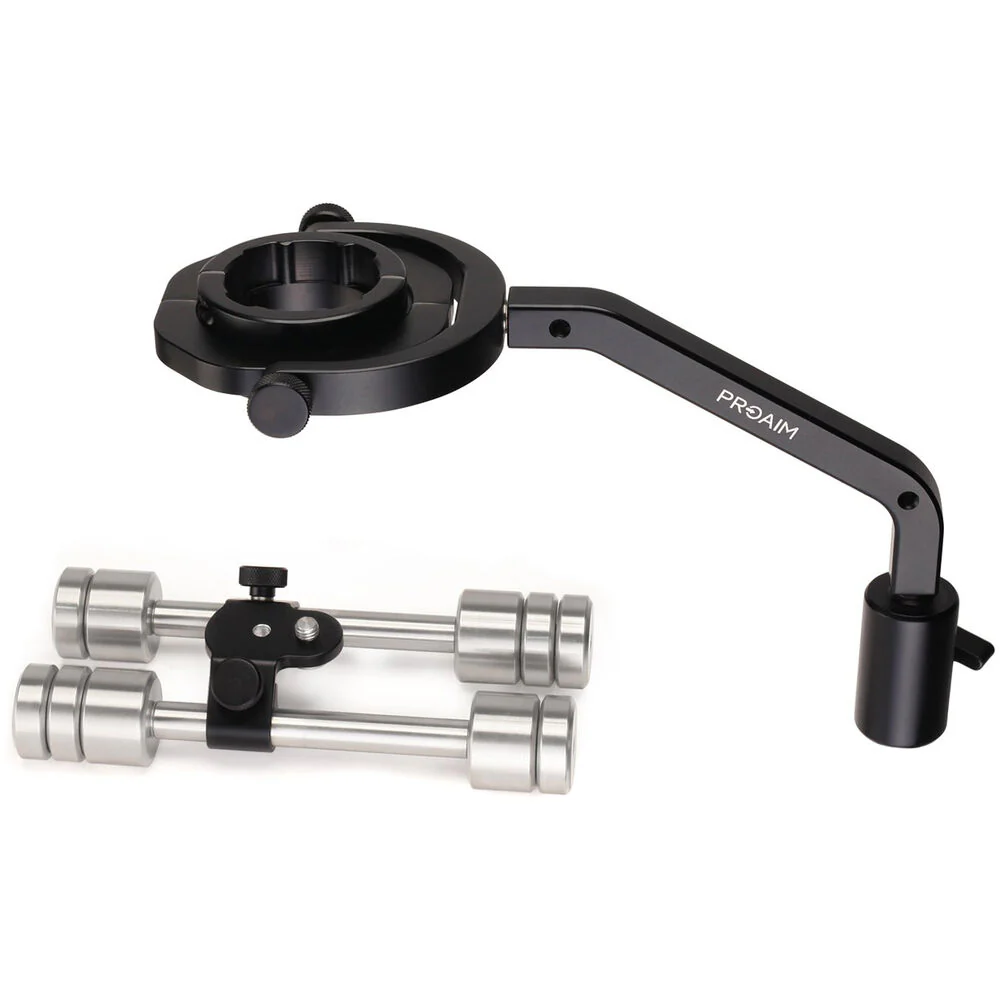

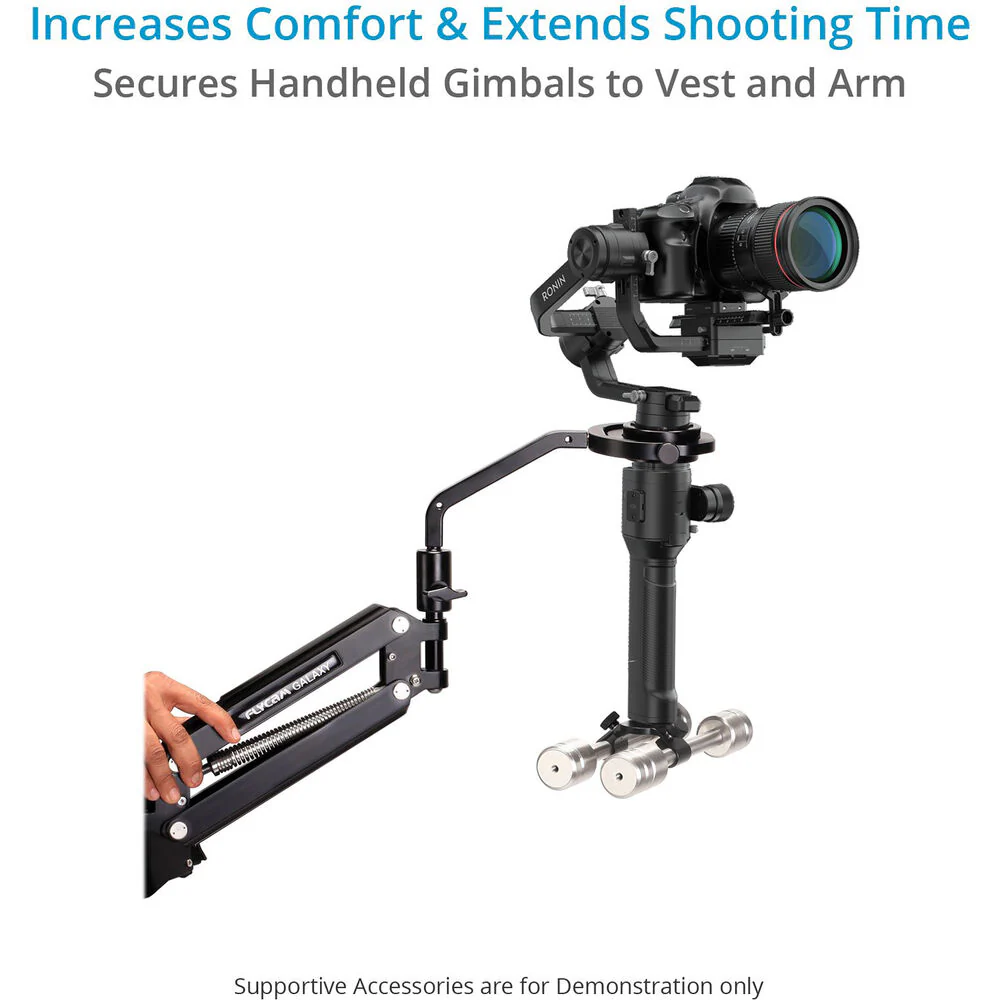

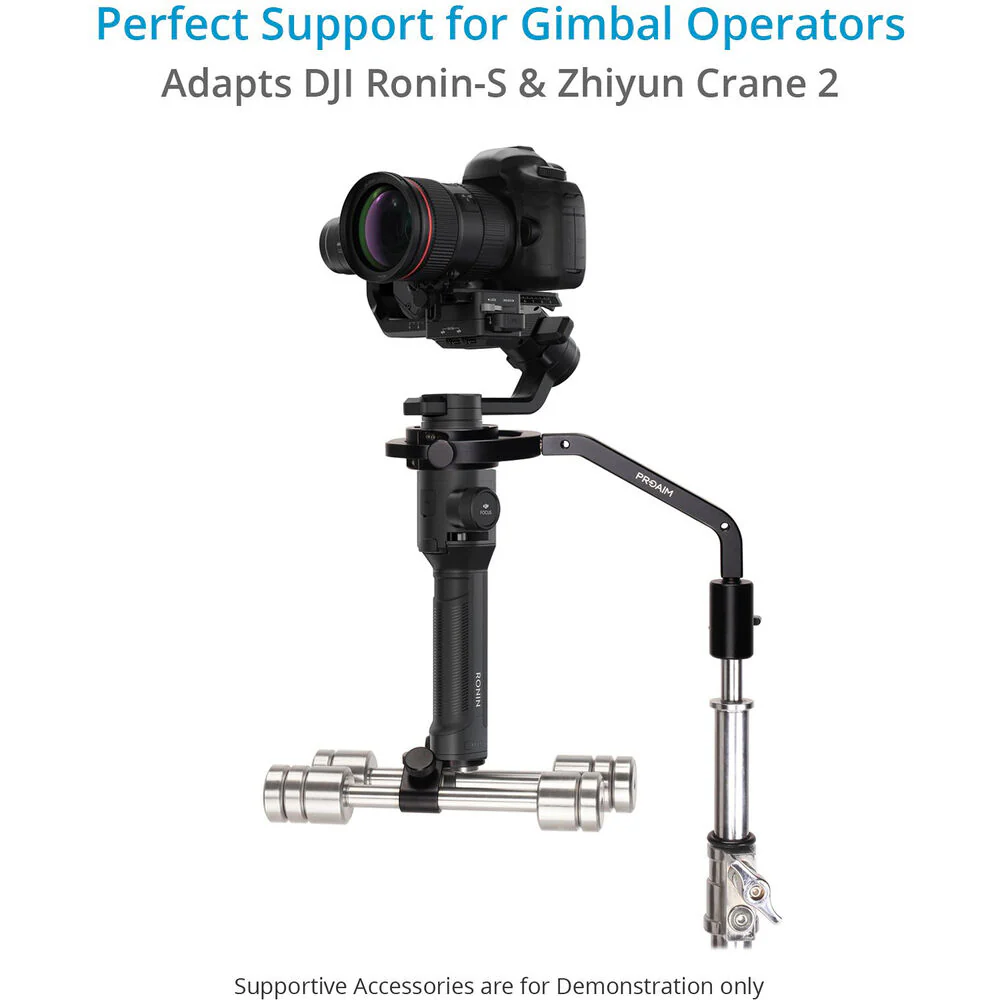

Mount your DJI Ronin-S or Zhiyun CRANE-2 on a stabilizer vest arm using this Gimbal Brace Mount from Proaim. The durable aluminum mounting kit includes a gimbal mounting collar, a 10-piece counterweight set, a 15mm rod clamp, a 12 to 16mm mount adapter, and a rubber spacer set for the counterweights.

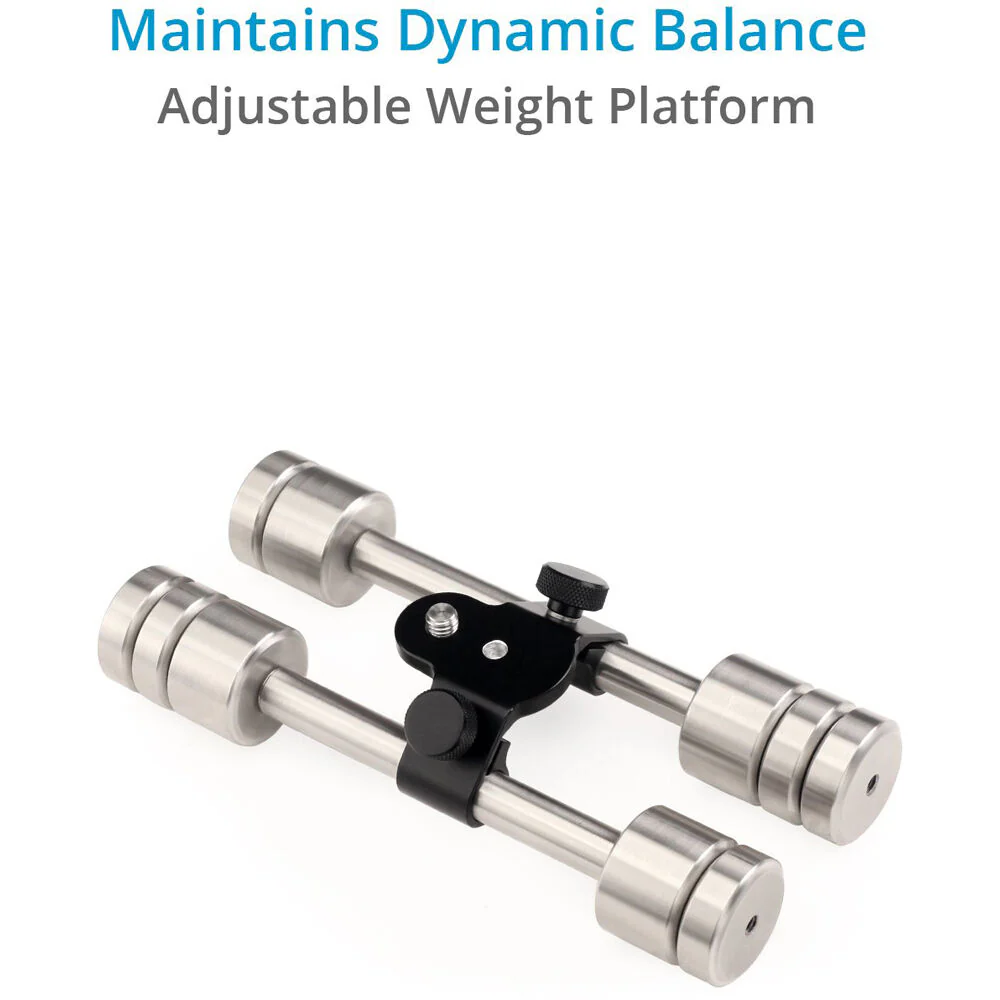

The collar clamps onto the gimbal handle and the other end mounts onto any vest arm with a 16mm pin. The 15mm LWS rod clamp mounts on the bottom of the gimbal to provide a mount for the two included 15mm counterweight rods. There are ten counterweights included that can be added one by one to balance the weight of your gimbal rig. There are four 8 oz weights and six 4 oz weights included, and the total counterbalance with all weights installed weighs 3.4 lb.
DJI Ronin-S
Zhiyun CRANE-2
Vest Systems:
Flycam Galaxy Arm Vest GLXY-AV
Flycam Vista-II Arm Vest VSTA-II-AV

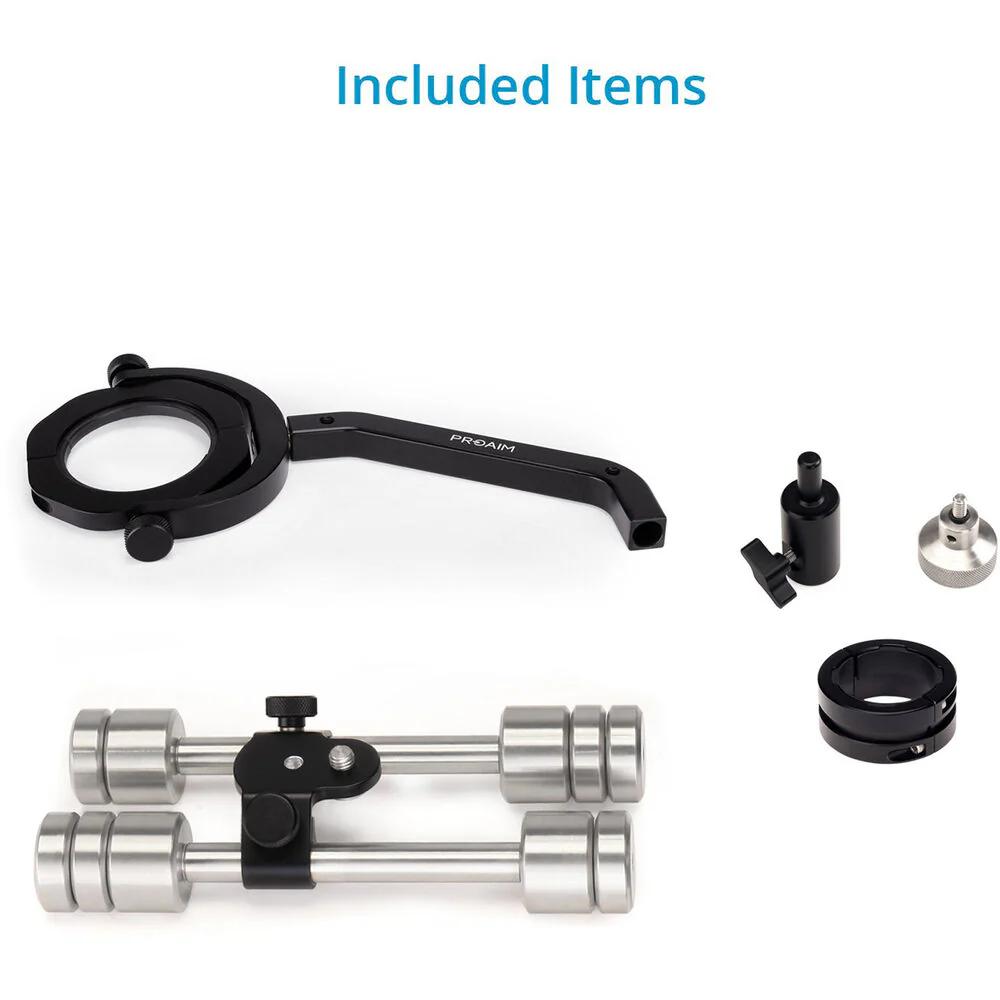

In the Box
- Proaim Gimbal Brace Mount for DJI Ronin-S/Zhiyun CRANE-2 & Stabilizer Vest Arm
- Gimbal Collar
- 16mm Vest Mount
- 15mm Rod Clamp Counterweight Base
- 4 x Counterweight (8 oz)
- 6 x Counterweight (4 oz)
- 12 to 16mm Converter
- Rubber Spacer Set
Proaim P-GMBC-01 Specs
| Compatibility | DJI Ronin-S Zhiyun CRANE-2 Proaim Flycam Galaxy Arm Vest GLXY-AV Proaim Flycam Vista-II Arm Vest VSTA-II-AV |
| Material of Construction | Aluminum, Stainless Steel |
| Dimensions | Not Specified by Manufacturer |
| Weight | 5.86 lb / 2.66 kg (Full System) 7.8 oz / 220 g (Each Large Weight) 3.9 oz / 110 g (Each Small Weight) 3.4 lb / 1.54 kg (Total Counterbalance Weight) |
| Package Weight | 7.18 lb |
| Box Dimensions (LxWxH) | 16.7 x 9.2 x 5" |
Proaim P-GMBC-01 Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
